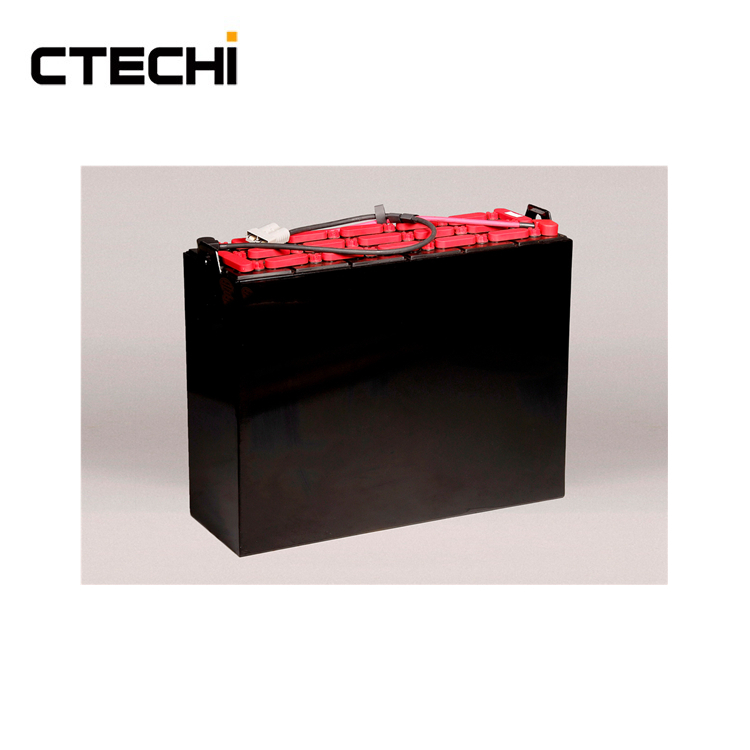

High-Performance 24V 160Ah Battery for Material Handling Equipment
High-Performance 24V 160Ah Battery for Material Handling Equipment
Enhance the efficiency and reliability of your material handling equipment with our state-of-the-art 24V 160Ah battery. Designed to deliver consistent power, this advanced battery system ensures optimal performance and safety for your operations.
Superior Performance and Efficiency:Our 24V 160Ah battery offers exceptional return on investment through significant savings in labor hours, maintenance, energy consumption, equipment longevity, and reduced downtime. The modular design not only minimizes weight but also simplifies servicing, ensuring your equipment runs smoothly with minimal interruptions.
Zero Maintenance and Fast Charging:Say goodbye to the hassle of maintenance with our zero-maintenance battery. The fast charging capability significantly boosts operational efficiency, allowing your equipment to be back in action quickly. With this battery, the life expectancy remains unaffected by the frequency of charging. In fact, opportunity charging is highly encouraged to maximize uptime and productivity.
Robust and Reliable:Built to withstand the demanding environments of material handling operations, our 24V 160Ah battery provides reliable and consistent power. Its high-quality construction and safety features make it a dependable choice for your equipment, ensuring uninterrupted performance day in and day out.
Invest in our high-performance 24V 160Ah battery and experience the benefits of reduced maintenance, faster charging, and superior efficiency. Elevate your material handling operations with a battery designed to keep your equipment running at peak performance.
| Model | Nominal voltage | Nominal capacity | Stored energy | Dimensions (mm) | Number of Module Methods | Standard Case Weight | Casing material | IP rating |
| 24V system | ||||||||
| B-LFP24-100MH | 25.6V | 100Ah | 2.56kWh | Support Customized | 1P*8S*1 | 42kg( 88.18lbs. ) | Steel | IP65 |
| B-LFP24-135MH | 135Ah | 3.46kWh | 1P*8S*1 | 62kg( 136.69lbs. ) | ||||
| B-LFP24-173MH | 173Ah | 4.43kWh | 1P*8S*1 | 73kg( 160.94lbs. ) | ||||
| B-LFP24-205MH | 205Ah | 5.25kWh | 1P*4S*2 | 80kg( 176.37lbs. ) | ||||
| B-LFP24-230MH | 230Ah | 5.89kWh | 1P*8S*1 | 85kg( 187.39lbs. ) | ||||
| B-LFP24-280MH | 280Ah | 7.17kWh | 1P*8S*1 | 97kg( 213.85lbs. ) | ||||
| B-LFP24-304MH | 304Ah | 7.78kWh | 1P*8S*1 | 102kg( 224.87lbs. ) | ||||
| B-LFP24-346MH | 346Ah | 8.86kWh | 2P*4S*2 | 119kg( 262.35lbs. ) | ||||
| B-LFP24-410MH | 410Ah | 10.50kWh | 2P*4S*2 | 142kg( 313.06lbs. ) | ||||
| B-LFP24-460MH | 460Ah | 11.78kWh | 2P*4S*2 | 156kg( 343.92lbs. ) | ||||
| B-LFP24-519MH | 519Ah | 13.29kWh | 3P*4S*2 | 171kg( 376.99lbs. ) | ||||
| B-LFP24-560MH | 560Ah | 14.34kWh | 2P*4S*2 | 181kg( 399.04lbs. ) | ||||
| B-LFP24-608MH | 608Ah | 15.56kWh | 2P*4S*2 | 190kg( 418.88lbs. ) | ||||
| B-LFP24-615MH | 615Ah | 15.74kWh | 3P*4S*2 | 191kg( 421.08lbs. ) | ||||
| B-LFP24-690MH | 690Ah | 17.66kWh | 3P*4S*2 | 210kg( 462.97lbs. ) | ||||
| B-LFP24-840MH | 840Ah | 20.99kWh | 3P*2S*4 | 244kg( 537.93lbs. ) | ||||
| B-LFP24-920MH | 920Ah | 23.55kWh | 4P*2S*4 | 270kg( 595.25lbs. ) | ||||
| B-LFP24-1120MH | 1120Ah | 28.67kWh | 4P*2S*4 | 317kg( 698.87lbs. ) | ||||
| 36V system | ||||||||
| B-LFP36-173MH | 38.4V | 173Ah | 6.64kWh | Support Customized | 1P*12S*1 | 108kg( 238.10lbs. ) | Steel | IP65 |
| B-LFP36-205MH | 205Ah | 7.87kWh | 1P*12S*1 | 122kg( 268.96lbs. ) | ||||
| B-LFP36-230MH | 230Ah | 8.83kWh | 1P*12S*1 | 129kg( 284.40lbs. ) | ||||
| B-LFP36-280MH | 280Ah | 10.752kWh | 1P*6S*2 | 148kg( 326.28lbs. ) | ||||
| B-LFP36-304MH | 304Ah | 11.67kWh | 1P*6S*2 | 155kg( 341.72lbs. ) | ||||
| B-LFP36-346MH | 346Ah | 13.29kWh | 2P*4S*2 | 171kg( 376.99lbs. ) | ||||
| B-LFP36-410MH | 410Ah | 15.744kWh | 2P*4S*3 | 204kg( 449.74lbs. ) | ||||
| B-LFP36-460MH | 460Ah | 17.664kWh | 2P*4S*3 | 219kg( 482.81lbs. ) | ||||
| B-LFP36-519MH | 519Ah | 19.93kWh | 3P*4S*3 | 249kg( 548.95lbs. ) | ||||
| B-LFP36-560MH | 560Ah | 21.504kWh | 2P*4S*3 | 261kg( 575.41lbs. ) | ||||
| B-LFP36-615MH | 615Ah | 23.616kWh | 3P*4S*3 | 281kg( 619.50lbs. ) | ||||
| B-LFP36-690MH | 690Ah | 26.496kWh | 3P*4S*3 | 301kg( 663.59lbs. ) | ||||
| B-LFP36-820MH | 820Ah | 31.488kWh | 2P*4S*6 | 344kg( 758.39lbs. ) | ||||
| B-LFP36-920MH | 920Ah | 35.328kWh | 4P*2S*6 | 403kg( 888.46lbs. ) | ||||
| B-LFP36-1120MH | 1120Ah | 43.01kWh | 4P*2S*6 | 481kg( 1060.42lbs. ) | ||||
| 48V system | ||||||||
| B-LFP48-173MH | 51.2V | 173Ah | 8.86kWh | Support Customized | 1P*8S*2 | 125kg( 275.58lbs. ) | Steel | IP65 |
| B-LFP48-205MH | 205Ah | 10.50kWh | 1P*8S*2 | 145kg( 319.67lbs. ) | ||||
| B-LFP48-230MH | 230Ah | 11.78kWh | 1P*8S*2 | 154kg( 339.51lbs. ) | ||||
| B-LFP48-280MH | 280Ah | 14.336kWh | 1P*8S*2 | 179kg( 394.63lbs. ) | ||||
| B-LFP48-304MH | 304Ah | 15.565kWh | 1P*8S*2 | 190kg( 418.88lbs. ) | ||||
| B-LFP48-346MH | 346Ah | 17.72kWh | 815*540*400 | 2P*4S*4 | 361kg( 795.87lbs. ) | |||
| B-LFP48-410MH | 410Ah | 20.992kWh | 2P*4S*4 | 366kg( 806.89lbs. ) | ||||
| B-LFP48-460MH | 460Ah | 23.552kWh | 2P*4S*4 | 372kg( 820.12lbs. ) | ||||
| B-LFP48-519MH | 519Ah | 26.57kWh | Support Customized | 3P*4S*4 | 306kg( 674.61lbs. ) | |||
| B-LFP48-560MH-A | 560Ah | 28.672kWh | 815*668*400 | 2P*4S*4 | 477kg( 1051.60lbs. ) | |||
| B-LFP48-608MH-A | 608Ah | 31.13kWh | 2P*4S*4 | 487kg( 1073.65lbs. ) | ||||
| B-LFP48-560MH-B | 560Ah | 28.672kWh | 748*612*595 | 2P*4S*4 | 383kg( 844.37lbs. ) | |||
| B-LFP48-608MH-B | 608Ah | 31.13kWh | 2P*4S*4 | 393kg( 866.42lbs. ) | ||||
| B-LFP48-615MH | 615Ah | 31.488kWh | 815*770*400 | 3P*4S*4 | 537kg( 1183.88lbs. ) | |||
| B-LFP48-690MH | 690Ah | 35.328kWh | 3P*4S*4 | 547kg( 1205.93lbs. ) | ||||
| B-LFP48-820MH | 820Ah | 41.984kWh | Support Customized | 4P*4S*4 | 468kg( 1031.76lbs. ) | |||
| B-LFP48-920MH | 920Ah | 47.104kWh | 4P*2S*8 | 527kg( 1161.84lbs. ) | ||||
| B-LFP48-1120MH | 1120Ah | 57.344kWh | 4P*2S*8 | 629kg( 1386.71lbs. ) | ||||
| 72V system | ||||||||
| B-LFP72-346MH | 76.8V | 346Ah | 26.572kWh | Support Customized | 2P*4S*6 | 351kg( 773.82lbs. ) | Steel | IP65 |
| B-LFP72-410MH | 410Ah | 31.488kWh | 3P*4S*6 | 417kg( 919.33lbs. ) | ||||
| B-LFP72-460MH | 460Ah | 35.328kWh | 3P*4S*6 | 448kg( 987.67lbs. ) | ||||
| B-LFP72-519MH | 519Ah | 39.86kWh | 3P*4S*6 | 487kg( 1073.65lbs. ) | ||||
| B-LFP72-560MH | 560Ah | 43.008kWh | 2P*4S*6 | 516kg( 1137.59lbs. ) | ||||
| B-LFP72-615MH | 615Ah | 47.23kWh | 3P*4S*6 | 558kg( 1230.18lbs. ) | ||||
| B-LFP72-690MH | 690Ah | 52.99kWh | 3P*4S*6 | 639kg( 1408.76lbs. ) | ||||
| 80V system | ||||||||
| B-LFP80-205MH | 83.2V | 205Ah | 17.06kWh | Support Customized | 1P*8S*2+1P*10S*1 | 204kg( 449.74lbs. ) | Steel | IP65 |
| B-LFP80-230MH | 230Ah | 19.14kWh | 1P*8S*2+1P*10S*1 | 220kg( 485.02lbs. ) | ||||
| B-LFP80-280MH | 280Ah | 23.296kWh | 1P*4S*6+1P*2S*1 | 284kg( 626.11lbs. ) | ||||
| B-LFP80-304MH | 304Ah | 25.293kWh | 1P*4S*6+1P*2S*1 | 322kg( 709.89lbs. ) | ||||
| B-LFP80-346MH | 80V | 346Ah | 27.68kWh | 1015*630*400 | 2P*5S*5 | 516kg( 1137.59lbs. ) | ||
| B-LFP80-410MH | 410Ah | 32.8kWh | 3P*4S*6+3P*2S*1 | 528kg( 1164.04lbs. ) | ||||
| B-LFP80-460MH | 460Ah | 36.8kWh | 2P*4S*6+3P*2S*1 | 538kg( 1186.09lbs. ) | ||||
| B-LFP80-519MH | 519Ah | 41.52kWh | Support Customized | 3P*5S*5 | 512kg( 1128.77lbs. ) | |||
| B-LFP80-560MH | 560Ah | 44.8kWh | 1015*810*400 | 2P*4S*6+2P*2S*1 | 650kg( 1433.00lbs. ) | |||
| B-LFP80-608MH | 608Ah | 48.64kWh | 660kg( 1455.05lbs. ) | |||||
| B-LFP80-615MH | 83.2V | 615Ah | 51.168kWh | 780*750*570 | 2P*4S*6+2P*2S*1 | 668kg( 1472.69lbs. ) | ||
| B-LFP80-690MH | 519Ah | 57.408kWh | 3P*2S*13 | 684kg( 1507.96lbs. ) | ||||
| B-LFP80-820MH | 820Ah | 68.224kWh | Support Customized | 3P*4S*6+3P*2S*1 | 817kg( 1801.18lbs. ) | |||
| B-LFP80-920MH | 920Ah | 76.544kWh | 3P*2S*13 | 948kg( 2089.98lbs. ) | ||||
| B-LFP80-1120MH | 1120Ah | 93.184kWh | 4P*2S*13 | 1136kg( 2504.45lbs. ) | ||||
| B-LFP80-1400MH | 1380Ah | 114.82kWh | 4P*2S*13 | 1370kg( 3020.33lbs. ) |
