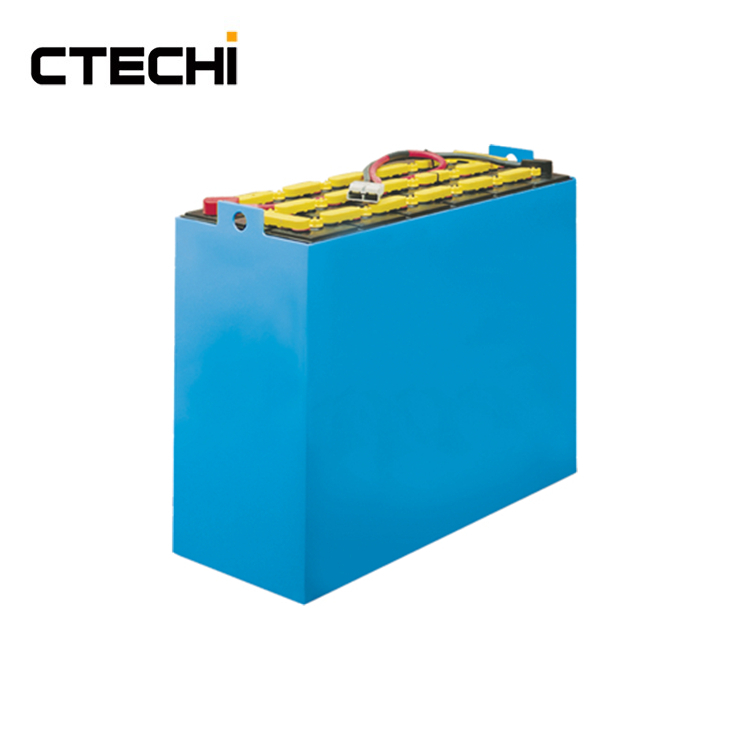

Advanced Lithium Ion LiFepo4 Forklift Batteries 24V 36V 48V 60v 72v 80V 96v 400Ah 500Ah 600Ah 800Ah 1000Ah Efficient Power for Multi Shift Warehouse Operations
5.0
MOQ:
100
Payment:
L/C, D/A, D/P, T/T, Western Union, MoneyGram, OA, Paypal
Place of Origin:
China
Voltage Nominal:
72V
Capacity Nominal:
100Ah
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Our advanced lithium-ion forklift batteries cover a voltage range from 24V to 80V and capacities between 400Ah and 1000Ah. Designed for multi-shift warehouse operations, these batteries offer efficient power management, rapid charging capabilities, and long-lasting performance. They are ideal for maximizing operational efficiency and reducing overall energy costs.
| Model | Nominal voltage | Nominal capacity | Stored energy | Dimensions (mm) | Number of Module Methods | Standard Case Weight | Casing material | IP rating |
| 24V system | ||||||||
| B-LFP24-100MH | 25.6V | 100Ah | 2.56kWh | Support Customized | 1P*8S*1 | 42kg( 88.18lbs. ) | Steel | IP65 |
| B-LFP24-135MH | 135Ah | 3.46kWh | 1P*8S*1 | 62kg( 136.69lbs. ) | ||||
| B-LFP24-173MH | 173Ah | 4.43kWh | 1P*8S*1 | 73kg( 160.94lbs. ) | ||||
| B-LFP24-205MH | 205Ah | 5.25kWh | 1P*4S*2 | 80kg( 176.37lbs. ) | ||||
| B-LFP24-230MH | 230Ah | 5.89kWh | 1P*8S*1 | 85kg( 187.39lbs. ) | ||||
| B-LFP24-280MH | 280Ah | 7.17kWh | 1P*8S*1 | 97kg( 213.85lbs. ) | ||||
| B-LFP24-304MH | 304Ah | 7.78kWh | 1P*8S*1 | 102kg( 224.87lbs. ) | ||||
| B-LFP24-346MH | 346Ah | 8.86kWh | 2P*4S*2 | 119kg( 262.35lbs. ) | ||||
| B-LFP24-410MH | 410Ah | 10.50kWh | 2P*4S*2 | 142kg( 313.06lbs. ) | ||||
| B-LFP24-460MH | 460Ah | 11.78kWh | 2P*4S*2 | 156kg( 343.92lbs. ) | ||||
| B-LFP24-519MH | 519Ah | 13.29kWh | 3P*4S*2 | 171kg( 376.99lbs. ) | ||||
| B-LFP24-560MH | 560Ah | 14.34kWh | 2P*4S*2 | 181kg( 399.04lbs. ) | ||||
| B-LFP24-608MH | 608Ah | 15.56kWh | 2P*4S*2 | 190kg( 418.88lbs. ) | ||||
| B-LFP24-615MH | 615Ah | 15.74kWh | 3P*4S*2 | 191kg( 421.08lbs. ) | ||||
| B-LFP24-690MH | 690Ah | 17.66kWh | 3P*4S*2 | 210kg( 462.97lbs. ) | ||||
| B-LFP24-840MH | 840Ah | 20.99kWh | 3P*2S*4 | 244kg( 537.93lbs. ) | ||||
| B-LFP24-920MH | 920Ah | 23.55kWh | 4P*2S*4 | 270kg( 595.25lbs. ) | ||||
| B-LFP24-1120MH | 1120Ah | 28.67kWh | 4P*2S*4 | 317kg( 698.87lbs. ) | ||||
| 36V system | ||||||||
| B-LFP36-173MH | 38.4V | 173Ah | 6.64kWh | Support Customized | 1P*12S*1 | 108kg( 238.10lbs. ) | Steel | IP65 |
| B-LFP36-205MH | 205Ah | 7.87kWh | 1P*12S*1 | 122kg( 268.96lbs. ) | ||||
| B-LFP36-230MH | 230Ah | 8.83kWh | 1P*12S*1 | 129kg( 284.40lbs. ) | ||||
| B-LFP36-280MH | 280Ah | 10.752kWh | 1P*6S*2 | 148kg( 326.28lbs. ) | ||||
| B-LFP36-304MH | 304Ah | 11.67kWh | 1P*6S*2 | 155kg( 341.72lbs. ) | ||||
| B-LFP36-346MH | 346Ah | 13.29kWh | 2P*4S*2 | 171kg( 376.99lbs. ) | ||||
| B-LFP36-410MH | 410Ah | 15.744kWh | 2P*4S*3 | 204kg( 449.74lbs. ) | ||||
| B-LFP36-460MH | 460Ah | 17.664kWh | 2P*4S*3 | 219kg( 482.81lbs. ) | ||||
| B-LFP36-519MH | 519Ah | 19.93kWh | 3P*4S*3 | 249kg( 548.95lbs. ) | ||||
| B-LFP36-560MH | 560Ah | 21.504kWh | 2P*4S*3 | 261kg( 575.41lbs. ) | ||||
| B-LFP36-615MH | 615Ah | 23.616kWh | 3P*4S*3 | 281kg( 619.50lbs. ) | ||||
| B-LFP36-690MH | 690Ah | 26.496kWh | 3P*4S*3 | 301kg( 663.59lbs. ) | ||||
| B-LFP36-820MH | 820Ah | 31.488kWh | 2P*4S*6 | 344kg( 758.39lbs. ) | ||||
| B-LFP36-920MH | 920Ah | 35.328kWh | 4P*2S*6 | 403kg( 888.46lbs. ) | ||||
| B-LFP36-1120MH | 1120Ah | 43.01kWh | 4P*2S*6 | 481kg( 1060.42lbs. ) | ||||
| 48V system | ||||||||
| B-LFP48-173MH | 51.2V | 173Ah | 8.86kWh | Support Customized | 1P*8S*2 | 125kg( 275.58lbs. ) | Steel | IP65 |
| B-LFP48-205MH | 205Ah | 10.50kWh | 1P*8S*2 | 145kg( 319.67lbs. ) | ||||
| B-LFP48-230MH | 230Ah | 11.78kWh | 1P*8S*2 | 154kg( 339.51lbs. ) | ||||
| B-LFP48-280MH | 280Ah | 14.336kWh | 1P*8S*2 | 179kg( 394.63lbs. ) | ||||
| B-LFP48-304MH | 304Ah | 15.565kWh | 1P*8S*2 | 190kg( 418.88lbs. ) | ||||
| B-LFP48-346MH | 346Ah | 17.72kWh | 815*540*400 | 2P*4S*4 | 361kg( 795.87lbs. ) | |||
| B-LFP48-410MH | 410Ah | 20.992kWh | 2P*4S*4 | 366kg( 806.89lbs. ) | ||||
| B-LFP48-460MH | 460Ah | 23.552kWh | 2P*4S*4 | 372kg( 820.12lbs. ) | ||||
| B-LFP48-519MH | 519Ah | 26.57kWh | Support Customized | 3P*4S*4 | 306kg( 674.61lbs. ) | |||
| B-LFP48-560MH-A | 560Ah | 28.672kWh | 815*668*400 | 2P*4S*4 | 477kg( 1051.60lbs. ) | |||
| B-LFP48-608MH-A | 608Ah | 31.13kWh | 2P*4S*4 | 487kg( 1073.65lbs. ) | ||||
| B-LFP48-560MH-B | 560Ah | 28.672kWh | 748*612*595 | 2P*4S*4 | 383kg( 844.37lbs. ) | |||
| B-LFP48-608MH-B | 608Ah | 31.13kWh | 2P*4S*4 | 393kg( 866.42lbs. ) | ||||
| B-LFP48-615MH | 615Ah | 31.488kWh | 815*770*400 | 3P*4S*4 | 537kg( 1183.88lbs. ) | |||
| B-LFP48-690MH | 690Ah | 35.328kWh | 3P*4S*4 | 547kg( 1205.93lbs. ) | ||||
| B-LFP48-820MH | 820Ah | 41.984kWh | Support Customized | 4P*4S*4 | 468kg( 1031.76lbs. ) | |||
| B-LFP48-920MH | 920Ah | 47.104kWh | 4P*2S*8 | 527kg( 1161.84lbs. ) | ||||
| B-LFP48-1120MH | 1120Ah | 57.344kWh | 4P*2S*8 | 629kg( 1386.71lbs. ) | ||||
| 72V system | ||||||||
| B-LFP72-346MH | 76.8V | 346Ah | 26.572kWh | Support Customized | 2P*4S*6 | 351kg( 773.82lbs. ) | Steel | IP65 |
| B-LFP72-410MH | 410Ah | 31.488kWh | 3P*4S*6 | 417kg( 919.33lbs. ) | ||||
| B-LFP72-460MH | 460Ah | 35.328kWh | 3P*4S*6 | 448kg( 987.67lbs. ) | ||||
| B-LFP72-519MH | 519Ah | 39.86kWh | 3P*4S*6 | 487kg( 1073.65lbs. ) | ||||
| B-LFP72-560MH | 560Ah | 43.008kWh | 2P*4S*6 | 516kg( 1137.59lbs. ) | ||||
| B-LFP72-615MH | 615Ah | 47.23kWh | 3P*4S*6 | 558kg( 1230.18lbs. ) | ||||
| B-LFP72-690MH | 690Ah | 52.99kWh | 3P*4S*6 | 639kg( 1408.76lbs. ) | ||||
| 80V system | ||||||||
| B-LFP80-205MH | 83.2V | 205Ah | 17.06kWh | Support Customized | 1P*8S*2+1P*10S*1 | 204kg( 449.74lbs. ) | Steel | IP65 |
| B-LFP80-230MH | 230Ah | 19.14kWh | 1P*8S*2+1P*10S*1 | 220kg( 485.02lbs. ) | ||||
| B-LFP80-280MH | 280Ah | 23.296kWh | 1P*4S*6+1P*2S*1 | 284kg( 626.11lbs. ) | ||||
| B-LFP80-304MH | 304Ah | 25.293kWh | 1P*4S*6+1P*2S*1 | 322kg( 709.89lbs. ) | ||||
| B-LFP80-346MH | 80V | 346Ah | 27.68kWh | 1015*630*400 | 2P*5S*5 | 516kg( 1137.59lbs. ) | ||
| B-LFP80-410MH | 410Ah | 32.8kWh | 3P*4S*6+3P*2S*1 | 528kg( 1164.04lbs. ) | ||||
| B-LFP80-460MH | 460Ah | 36.8kWh | 2P*4S*6+3P*2S*1 | 538kg( 1186.09lbs. ) | ||||
| B-LFP80-519MH | 519Ah | 41.52kWh | Support Customized | 3P*5S*5 | 512kg( 1128.77lbs. ) | |||
| B-LFP80-560MH | 560Ah | 44.8kWh | 1015*810*400 | 2P*4S*6+2P*2S*1 | 650kg( 1433.00lbs. ) | |||
| B-LFP80-608MH | 608Ah | 48.64kWh | 660kg( 1455.05lbs. ) | |||||
| B-LFP80-615MH | 83.2V | 615Ah | 51.168kWh | 780*750*570 | 2P*4S*6+2P*2S*1 | 668kg( 1472.69lbs. ) | ||
| B-LFP80-690MH | 519Ah | 57.408kWh | 3P*2S*13 | 684kg( 1507.96lbs. ) | ||||
| B-LFP80-820MH | 820Ah | 68.224kWh | Support Customized | 3P*4S*6+3P*2S*1 | 817kg( 1801.18lbs. ) | |||
| B-LFP80-920MH | 920Ah | 76.544kWh | 3P*2S*13 | 948kg( 2089.98lbs. ) | ||||
| B-LFP80-1120MH | 1120Ah | 93.184kWh | 4P*2S*13 | 1136kg( 2504.45lbs. ) | ||||
| B-LFP80-1400MH | 1380Ah | 114.82kWh | 4P*2S*13 | 1370kg( 3020.33lbs. ) |
