CTECHI is an expert in battery solutions, specializing in ODM, OEM, and SKD for energy storage, motive power, and consumer batteries.

Balkon solaranlage mit speicher balkonkraftwerk mit speicher 1500wh 3000wh 5000wh balkonkraftwerk PV 600w 800W 1600W 1
Balkon solaranlage mit speicher balkonkraftwerk mit speicher 1500wh 3000wh 5000wh balkonkraftwerk PV 600w 800W 1600W 2
Balkon solaranlage mit speicher balkonkraftwerk mit speicher 1500wh 3000wh 5000wh balkonkraftwerk PV 600w 800W 1600W 3
Balkon solaranlage mit speicher balkonkraftwerk mit speicher 1500wh 3000wh 5000wh balkonkraftwerk PV 600w 800W 1600W 4
Balkon solaranlage mit speicher balkonkraftwerk mit speicher 1500wh 3000wh 5000wh balkonkraftwerk PV 600w 800W 1600W 5
Balkon solaranlage mit speicher balkonkraftwerk mit speicher 1500wh 3000wh 5000wh balkonkraftwerk PV 600w 800W 1600W 1
Balkon solaranlage mit speicher balkonkraftwerk mit speicher 1500wh 3000wh 5000wh balkonkraftwerk PV 600w 800W 1600W 2
Balkon solaranlage mit speicher balkonkraftwerk mit speicher 1500wh 3000wh 5000wh balkonkraftwerk PV 600w 800W 1600W 3
Balkon solaranlage mit speicher balkonkraftwerk mit speicher 1500wh 3000wh 5000wh balkonkraftwerk PV 600w 800W 1600W 4
Balkon solaranlage mit speicher balkonkraftwerk mit speicher 1500wh 3000wh 5000wh balkonkraftwerk PV 600w 800W 1600W 5

Balkon solaranlage mit speicher balkonkraftwerk mit speicher 1500wh 3000wh 5000wh balkonkraftwerk PV 600w 800W 1600W

    oops...!

    no product data.

    Go to homepage
    Weight
    18kg
    Voltage Nominal
    51.2V
    Capacity Nominal
    30Ah
    Energy
    1536Wh
    Dimension
    445x 278x 622mm
    Certification
    CE, CCC, CB, PSE, TUV, UL, FCC
    Availability
    OEM, ODM

    Balkon solaranlage mit speicher balkonkraftwerk mit speicher 1500wh 3000wh 5000wh balkonkraftwerk PV 600w 800W 1600W 6

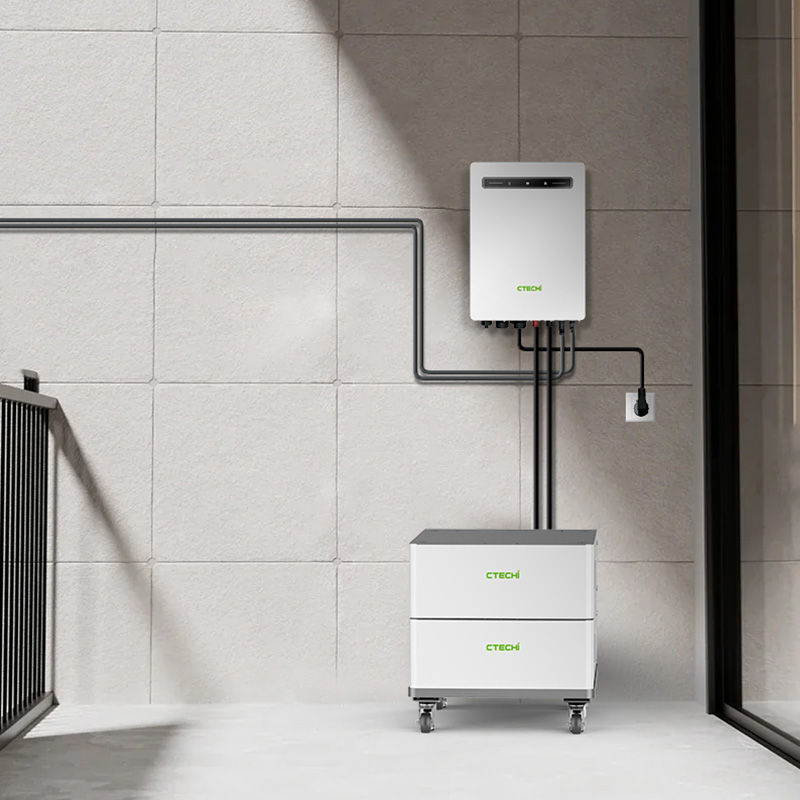

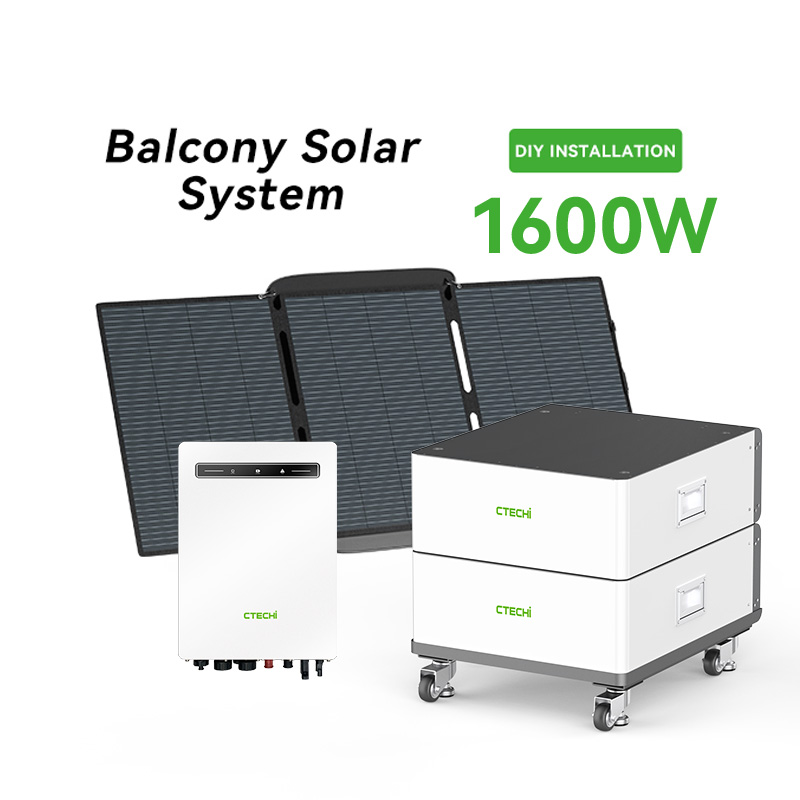

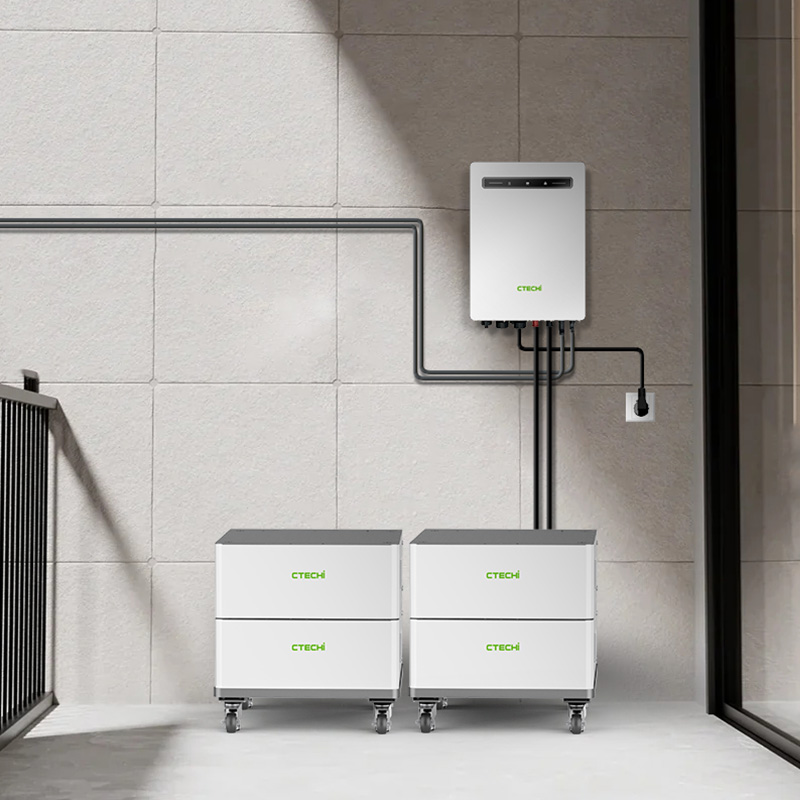

    Balkon Solaranlage mit Speicher: Eigenstrom vom Balkon erzeugen und speichern

    Mit einer Balkon Solaranlage mit Speicher können Sie Ihren eigenen Strom erzeugen und speichern. So werden Sie unabhängiger von der Stromversorgung und können gleichzeitig Ihren Geldbeutel schonen.

    Vorteile einer Balkon Solaranlage mit Speicher:

    • Autarkie: Erzeugen Sie Ihren eigenen Strom und werden Sie unabhängiger von der Stromversorgung.

    • Kosteneinsparungen: Sparen Sie langfristig Geld auf Ihrer Stromrechnung.

    • Umweltfreundlichkeit: Solarstrom ist eine saubere und umweltfreundliche Energiequelle.

    • Wertsteigerung Ihrer Immobilie: Eine Balkon Solaranlage kann den Wert Ihrer Immobilie steigern.

    Verschiedene Systeme:

    Es gibt verschiedene Systeme von Balkon Solaranlagen mit Speicher. Die Systeme unterscheiden sich in der Leistung, der Größe und dem Preis.

    • Kleine Systeme: Kleine Systeme mit einer Leistung von 600 Watt oder 800 Watt sind ideal für Balkone mit wenig Platz.

    • Mittlere Systeme: Mittlere Systeme mit einer Leistung von 1500 Watt oder 3000 Watt eignen sich für Balkone mit mehr Platz.

    • Große Systeme: Große Systeme mit einer Leistung von 5000 Watt oder mehr sind ideal für Häuser mit hohem Strombedarf.

    Kosten:

    Die Kosten für eine Balkon Solaranlage mit Speicher variieren je nach Systemgröße und Hersteller. In der Regel liegen die Kosten zwischen 1.500 € und 5.000 €.

    Förderungen:

    In vielen Ländern gibt es Förderprogramme für Balkon Solaranlagen mit Speicher. Informieren Sie sich bei Ihrer zuständigen Behörde über die Fördermöglichkeiten in Ihrer Region.

    Zusammenfassung:

    Eine Balkon Solaranlage mit Speicher ist eine lohnende Investition für alle, die ihren eigenen Strom erzeugen und speichern möchten. Sie werden unabhängiger von der Stromversorgung, sparen Geld auf Ihrer Stromrechnung und tragen zum Schutz der Umwelt bei.

    Balkon solaranlage mit speicher balkonkraftwerk mit speicher 1500wh 3000wh 5000wh balkonkraftwerk PV 600w 800W 1600W 7

    Balkon solaranlage mit speicher balkonkraftwerk mit speicher 1500wh 3000wh 5000wh balkonkraftwerk PV 600w 800W 1600W 8

    Product Specifications

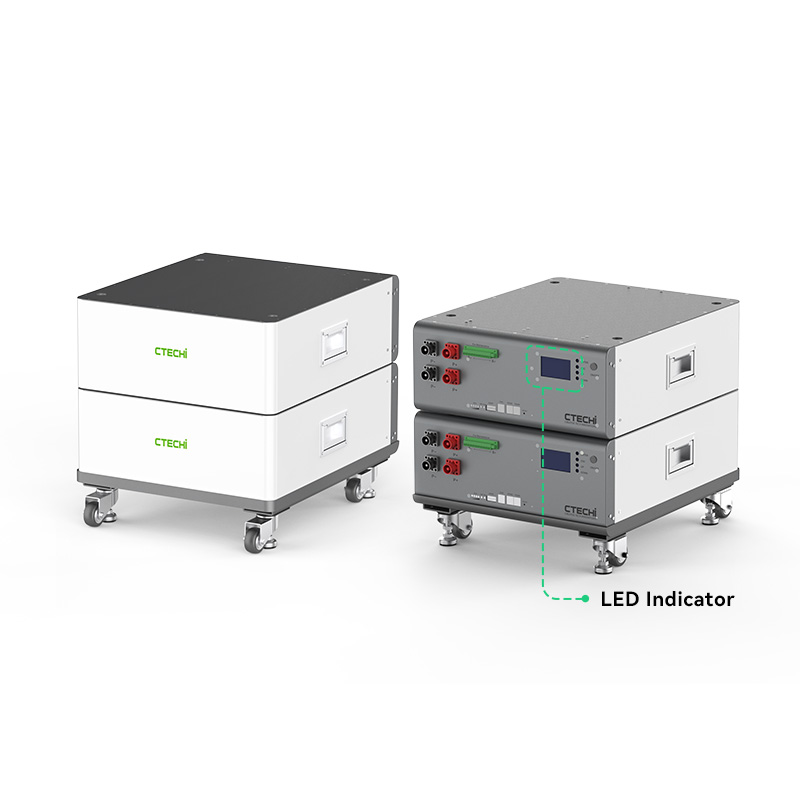

    Portabel Energy Battery
    Model
    CTSLPK5120
    Nominal Capacity
    5120Wh
    Nominal Voltage
    51.2V
    Working Voltage Range
    43.2-57.6V
    Standard   Charging&discharging Current
    20A(0.2C)
    Max. Charging&discharging   Current
    100A
    Battery Type
    LiFePO4
    Standard Discharge   Temperature
    `-20~60℃
    Dimension(WXDXH)
    482x440x142.4mm
    Weight
    42kg
    Warranty
    5years

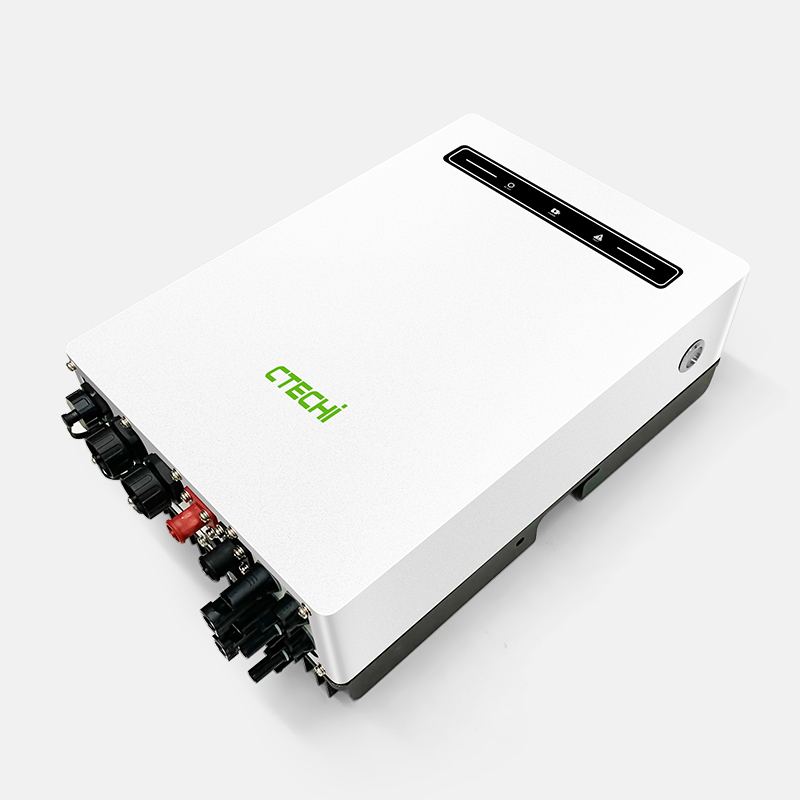

    ModelCTBSS1600
    Rated power1600VA/1600W
    Peak power(W)3200
    Machine architectureBidirectional AC/DC   inverter  Boosting and lowering   pressure MPPT
    Input/output phase numberSingle phase input/Single phase   output
    Operating modeAutomatic charging
        Automatic inverter discharge
        Off grid uninterrupted power supply mode

    Number of   output linesSingle phase two wire(L,N)+   Protective ground wire
    OutputRated voltage(VAC)220/230/240
    Output voltage accuracy±1%
    Output frequency(Hz)50/60Hz±0.1%(Settable,   automatically detects mains frequency)
    Output wave formPure sine wave
    Output distortion
        (THDV%)
    <2%(linear   load)
    <7%(nonlinear load)
    Overload capacity5 mins@105%~120%   rated load
        10s@120%~150% rated load
        5s@>150% rated load
    Overload
        capacity
    Mains   charging(AC->battery)93%;
    Battery discharge(battery->AC)92%;
    MPPT99.9%
    PV charging frequency96%
    Energy saving mode<30W(With output but no load)
    Shutdown leakage current (uA)<100
    Mains inputNumber   of input linesSingle phase two   wire( L,N)+Protective ground wire
    Input voltage range(Vac)Zero fire phase voltage:184~253
    Input frequency range(Hz)48-51
    Input power factor≥0.95
    Battery
        and
        charging
    Rated   voltage of battery(V)48
    Battery typeLiFePO4 16 strings,Ternary lithium14 strings
    Charging control methodPrecharging, constant current,   constant voltage, uniform charging, float charging, shutdown
    Charging termination voltage(V )56.8V/Continuing Adjust
    Discharge termination voltage(V )44V/Continuing Adjust
    Charging current(A)Max.25A,digitally   adjustable,default 10A
    Precharge current(A)1.5A
    Charging control commandCharge termination   voltage,Charging current,Charge Enable,Charging determination   saturation,Battery malfunction,battery temperature,Charging mode switching

    Protection   functionOverload   protection,over temperature protection,input overvoltage protection,input   undervoltage protection,overcharge protection,and over discharge protection
    Solar
        charging
    Max. PV input   power(W)800W*2
    Max. PV open circuit voltage(VDC)100
    PV operating voltage range(VDC)10~100
    PV input current(A)PV access MPPT working mode,16A   max.
    Number of MPPT2
    PV charging current(A)0-16A*2
    On-gridOptional   functionOn-grid  power can be set to 0-1600W
    InterfaceAPPThe mobile APP   manages and controls the on-grid time and power
    Communication interfaceSwitch on and off command   interface,RS485,CAN
    LCD display screen(Options)Display input and output   voltage, frequency, load percentage, PV voltage and current, operating mode,   and machine status
    Environmental parametersOperating   temperature range-20~55°C
    Operating humidity range0-98%(No condensation)
    Cooling methodnatural cooling
    Protection degreeIP65
    Structural ShapeSize(MM)360 × 256× 130
    Weight(kg)7.5

    Insulation   isolation withstand voltageThe battery is   insulated with the AC terminal and withstand voltage:4242VDC
        Leakage current<1mA
    Safety   and electromagnetic compatibility standardsIEC/EN62109-1,IEC/EN62109-2/IEC/EN61000-6-1/-2/-3/-4,IEC/EN61000-3-2/-3/VDE4105
