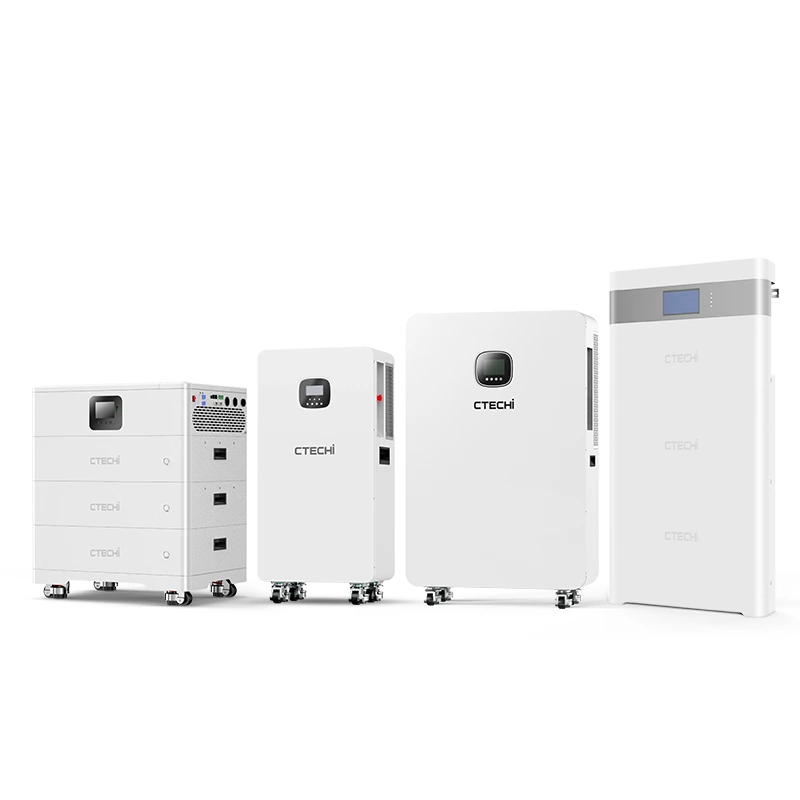

CTECHI All-in-One Residential Solar Energy Storage System – Integrated LiFePO₄ Battery & Inverter (5–16 kWh, 3.5–8 kW, Wall-Mount)
- Rated Capacity:5.12KWH/16KWh
- Single Cell Capacity:100/280/304/314Ah
- System Configuration:1P16S
- Rated Current:50A/150A
- Weight:Approx. 49Kg/135KG
- Dimensions:560*487*932mm
- Protection Level:IP54
- Display:System status information
- Photovoltaic Inverter Power:10KW
- Low Voltage Switch:Yes
- DC Switch:Yes
- PV Input:PV1/PV2
- AC Input:AC220V/50HZ
- AC Output:AC220V/50HZ
- Accessories Base:Yes
- Wall Mounting Kit:Yes
CTECHI All-in-One Residential Solar Energy Storage System
Detailed Product Features
- Long-lasting LiFePO₄ Battery
- Delivers over 6,000 charge cycles, guaranteeing exceptional durability and consistent performance. Offers near-instant UPS-level switchover—within ≤ 10 ms—to protect critical loads.
- Integrated Design for Simplicity
- Combines inverter and battery into one compact package. Eliminates complex wiring and cluttered installations by facilitating direct connections with PV panels, grid power, and backup generators.
- Scalable & Safe
- Features patented LFP module design with capacity to parallel up to 8 systems, enabling seamless scaling for higher energy requirements.
- Smart Connectivity & User Control
- Built-in Wi-Fi provides intelligent management via dedicated mobile app, giving homeowners real-time energy monitoring and remote control at their fingertips.
Related Parameters
|
Product Model |
PT3570S/PT3580S |
PT5510S |
PT5515SP/PT5516SP |
PT8016SP |
ESS-L-10F01-P5.5M6 |
|
Battery Type |
LFP,3.2V/280AH/314AH |
LFP,3.2V/200AH |
LFP,3.2V/280AH/314AH |
LFP,3.2V/314AH |
LFP,3.2V/102AH |
|
Rated Energy |
7.168kWH/8.0384kWh |
10.240KWH |
14.336kWH/16.0768kWh |
16.0768kWh |
10.4448kWh |
|
Rated Battery Voltage |
25.6V |
51.2V |
51.2V |
51.2V |
51.2V |
|
Voltage Range |
21.6V~29.2V |
43.2V~58.4V |
43.2V~58.4V |
43.2V~58.4V |
43.2V~58.4V |
|
Depth of discharge |
90% |
90% |
90% |
90% |
90% |
|
Rated Output Power |
3500W |
5500W |
5500W |
8000W |
5500W |
|
Max.Peak Power |
6000VA |
11000VA
|
11000VA |
12000VA |
11000VA |
|
Rated Output Voltage |
230Vac |
230Vac |
230Vac |
230Vac |
230Vac |
|
Rated AC Frequency |
50/60Hz |
50/60Hz |
50/60Hz |
50/60Hz |
50/60Hz |
|
Switch Time |
10ms(typical) |
10ms(typical) |
10ms(typical) |
10ms(typical) |
10ms(typical) |
|
Num. of MPPT Trackers |
1 |
1 |
1 |
2 |
1 |
|
Max.PV Array Power |
4000W |
6000W |
6000W |
5500W+5500W |
6000W |
|
Input Current |
13A |
22A |
22A |
22A+22A |
22A |
|
Max.Voltage of Open Circuit |
500Vdc |
500Vdc |
500Vdc |
500Vdc+500Vdc |
500Vdc |
|
MPPT Voltage Range |
120~450Vdc |
120~450Vdc |
120~450Vdc |
125~425Vdc |
120~450Vdc |
|
Input Voltage Range |
90~280Vac |
90~280Vac |
90~280Vac |
90~275Vac |
90~280Vac |
|
Frequency Range |
50/60Hz |
50/60Hz |
50/60Hz |
50/60Hz |
50/60Hz |
|
Bypass Overload Current |
30A |
40A |
40A |
63A |
40A |
|
Size |
830*400*235mm |
830*500*235mm |
970*860*250mm |
1070*860*250mm |
730*165*1430mm |
|
Weight |
80kg |
115KG |
135kg |
151kg |
130kg |
|
Protection Degree |
IP20, Indoor OnIy |
IP20, Indoor OnIy |
IP20, Indoor OnIy |
IP20, Indoor OnIy |
IP20, Indoor OnIy |
|
Operating Temperature Range |
-10~55℃,>45℃ Derating |
-10~55℃,>45℃ Derating |
-10~55℃,>45℃ Derating |
-10~55℃,>45℃ Derating |
-10~55℃,>45℃ Derating |
|
Noise |
<60dB |
<60dB |
<60dB |
<60dB |
<60dB |
|
Cooling method |
Built-in fan |
Built-in fan |
Built-in fan |
Built-in fan |
Built-in fan |
|
Communication interface |
RS485/CAN |
RS485/CAN |
RS485/CAN |
RS485/CAN |
RS485/CAN |
|
External module (optional) |
Wi-Fi / GPRS |
Wi-Fi / GPRS |
Wi-Fi / GPRS |
Wi-Fi / GPRS |
Wi-Fi / GPRS |
|
Remark |
Supports parallel battery expansion (customizable) |
Supports both parallel power and battery expansion (customizable) |
Supports both parallel power and battery expansion (customizable) |
Supports both parallel power and battery expansion (customizable) |
