CTECHI is an expert in battery solutions, specializing in ODM, OEM, and SKD for energy storage, motive power, and consumer batteries.

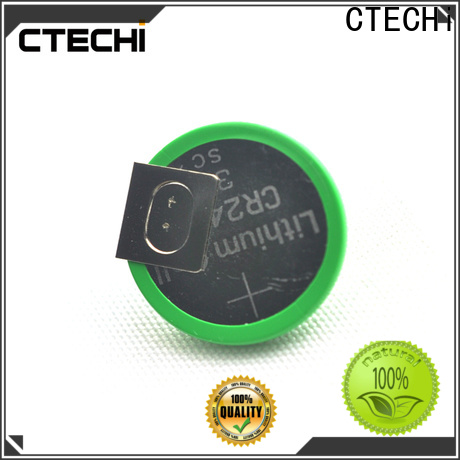

CTECHi electronic lithium coin cell customized for instrument 1
CTECHi electronic lithium coin cell customized for instrument 2
CTECHi electronic lithium coin cell customized for instrument 1
CTECHi electronic lithium coin cell customized for instrument 2

CTECHi electronic lithium coin cell customized for instrument

Origin:
CHINA GUANGDONG
Package:
Industrial Package
Certificate:
CE,RoHS,UN38.3,MSDS
Warranty:
1 Years
Color:
Sliver,Green
MOQ:
10prices
Payment:
L/C, D/A, D/P, T/T, Western Union, MoneyGram, OA
Inquiry
Brand
CTECHi
Weight
3.2g
Item
CR2430 3.0V 300mAh LiMnO2 button Battery
Voltage Nominal
3V
Capacity Nominal
300mAh
Energy
0.9Wh
Dimension
24*3.0mm
Charge
No
Operating Temperature
-20+60℃
Certification
CE, CCC, CQC, CB, UL
Availability
OEM, ODM, OEM/ODM
Product Details
The CR2430 is a non-rechargeable lithium-ion button battery. It is one of the primary battery series. It has a diameter of 24mm and a thickness of 3.0mm. The CR series battery has a voltage of 3V, while the CR2430 battery has a capacity of 300mAh. This battery weighs 3.2g And this type of battery can add solder piece and solder feet.
  • CTECHi electronic lithium coin cell customized for instrument 3
    CR2430 lithium button battery conformation details
  • CTECHi electronic lithium coin cell customized for instrument 4
    CR2430 lithium button battery positive electrode details
  • CTECHi electronic lithium coin cell customized for instrument 5
    CR2430 lithium button battery discharge at different temperature(15KΩ)details
  • CTECHi electronic lithium coin cell customized for instrument 6
    CR2430 lithium button battery negative electrode solder piece details
  • CTECHi electronic lithium coin cell customized for instrument 7
    CR2430 lithium button battery Discharge curve details
  • CTECHi electronic lithium coin cell customized for instrument 8
    CR2430 lithium button battery customize solder piece
Application Scope
The CR2430 is a compact and lightweight lithium-ion battery with long life and high battery voltage. It can be used in electronic component boards and electronic watch,clocks, notebook computers, and electronic scales.
  • CTECHi electronic lithium coin cell customized for instrument 9
    CR2430 lithium button battery can be used in digital camera
  • CTECHi electronic lithium coin cell customized for instrument 10
    CR2430 lithium button battery can be used in Electronic scale
  • CTECHi electronic lithium coin cell customized for instrument 11
    CR2430 lithium button battery can be used in clock

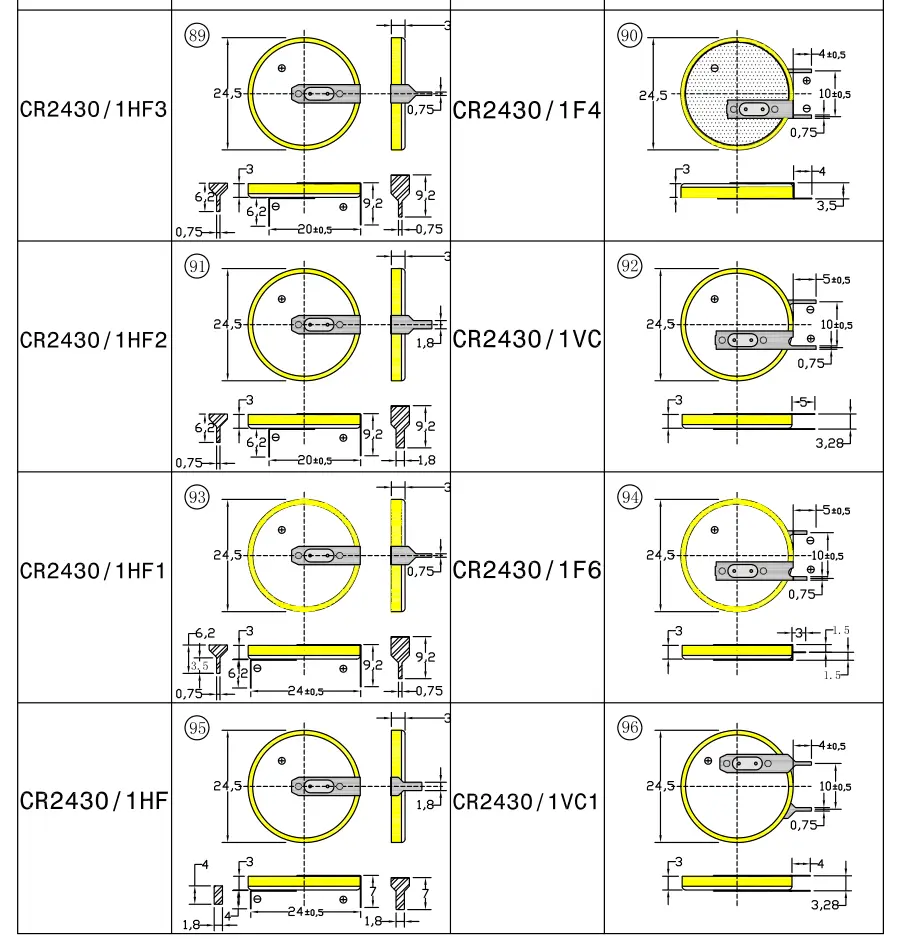

Solder Processing Solution
Our company also has the following CR2430 battery soldering solutions CR2430/1HF3, CR2430/1F4, CR2430/1HF2, CR2430/1VC, CR2430/1HF1, CR2430/1F6,CR2430/1HF, CR2430/1VC1, Each solution has a different application, and customers can choose the corresponding processing method according to the application.
  • CTECHi electronic lithium coin cell customized for instrument 12
Company Advantages
1. The design of CTECHi coin button battery is thoughtful, accurate, and delicate, combining aesthetic look and functionality. The product is delivered in a quick way: 7 days for samples and 15-20 days for a batch of goods
2. CTECHi Technology Co. Ltd has professional R&D team and after-sales team in order to provide reasonable quality products and service to customers. It is manufactured in high efficiency which is backed by 13+ year experience
3. The strict quality system ensures the high performance of this product. It can be used under a wide temperature range

CTECHi electronic lithium coin cell customized for instrument 13


Company Features
1. CTECHi Technology Co. Ltd has excellent performance in lithium coin cell industry.
2. CTECHi Technology Co. Ltd is strong in technology force and production strength.
3. The application of culture of coin button battery is a joint for the development of CTECHi. Inquiry!
Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
