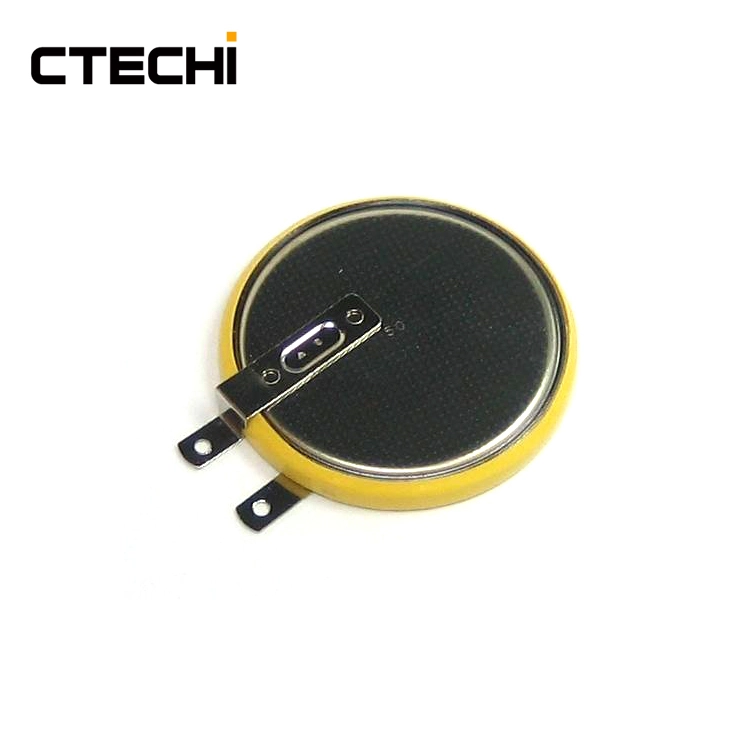

BR3032 3V 500mAh Poly-carbon monofluoride Lithium Batteries for Panasonic

BR3032 can be customized for additional processing, add solder chip terminals, insulation packaging and configuration type, the model as following: BR3032/BN, BR3032/VCN, BR3032/F2N, BR3032/GUFN. The BR3032 has a voltage of 3V and a capacity of 500mAh. It can be used in various devices in the life. We test the data of this device. Here are some test data presentations. From the Operating voltage vs. load resistance chart below, you can see the state of the battery voltage at 50% of the battery under different load and temperature conditions. When the load is at 0.1MΩ, the battery voltage is 3.05V when the ambient temperature is 60°C, the battery voltage is 2.85V when the ambient temperature is 20°C, and the battery voltage is 2.76V when the ambient temperature is -10°C. When the load is at 1MΩ, the battery voltage is 3.18V when the ambient temperature is 60°C, the battery voltage is 2.98V when the ambient temperature is 20°C, and the battery voltage is 2.84V when the ambient temperature is at -10°C. When the load is at 10MΩ, the battery voltage is 3.3V when the ambient temperature is 60°C, the battery voltage is 3.1V when the ambient temperature is 20°C, and the battery voltage is 2.98V when the ambient temperature is at -10°C.
