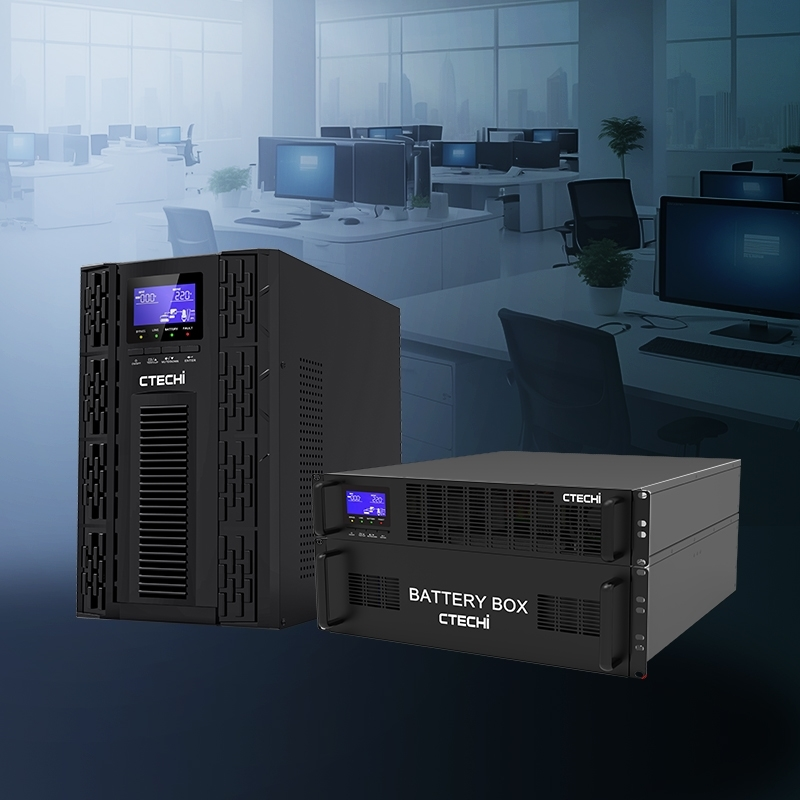

CTECHI 110V High-Voltage LiFePO₄ UPS (1–3 kVA) – Online Double-Conversion, Tower & Rack Version
- Capacity: 1KVA/900W, 2KVA/1.8KW, 3KVA/2.7KW
- Rated Voltage: 110/115/120/127VAC
- Battery Type: LiFePO4 battery
- Battery: 48V LiFePO4
- Runtime: ~20–30 mins @ half load
- Dimensions (WxDxH): Tower: 145x325x220mm (1KVA), 190x378x318mm (2-3KVA); Rack: 440x400x88mm (2U)
CTECHI 110 V High-Voltage LiFePO₄ UPS (1–3 kVA) – Online Double-Conversion, Tower & Rack Version
Detailed Product Features
- Longer Battery Life & Backup – The LiFePO₄ cells provide up to 3× longer lifecycle and extended runtime compared to traditional lead-acid alternatives, significantly reducing maintenance.
- Advanced Battery Management System (BMS) – Equipped with a comprehensive BMS featuring MODBUS (RS485) interface and a dedicated 4-stage charger to ensure battery safety and longevity.
- On-Line Double-Conversion Technology – Offers the highest level of power conditioning by fully isolating load from grid disturbances, ensuring clean, reliable output.
- Flexible Deployment – Configurable as tower or rack (2U) model to suit varying installation environments.
- Wide Input Voltage Range – Stabilizes performance across various input voltages (roughly 60 – 145 VAC), maintaining consistent output even under unstable grid conditions.
- Cold-Start Capability – Can power on directly from the battery even during complete grid failure, enabling critical system initiation during blackout scenarios.
Related Parameters
|

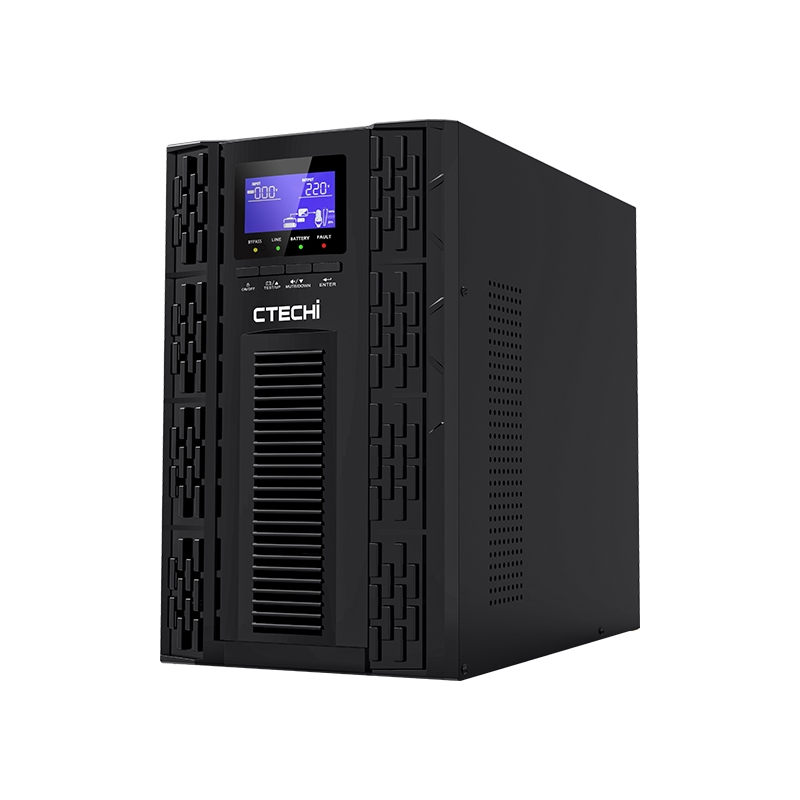

Tower Model |
Li LV C1K |
Li LV C1KS |
Li LV C2K |
Li LV C2KS |
Li LV C3K |
Li LV C3KS |
|||||||
|

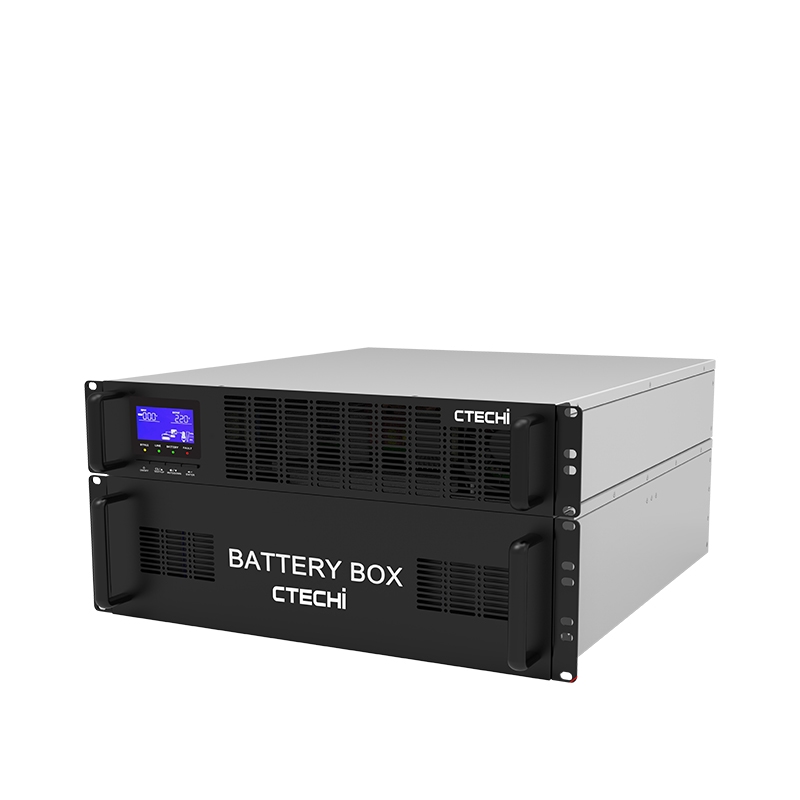

Rack Model |
Li LV R1K |
Li LV R1KS |
Li LV R2K |
Li LV R2KS |
Li LV R3K |
Li LV R3KS |
|||||||
|
Capacity |
1KVA/900W |
2KVA/1.8KW |
3KVA/2.7KW |
||||||||||
|
Phase |
Single phase input single phase output |
||||||||||||
|
AC INPUT |
|
||||||||||||
|
Wiring |
1 phase 3 wires ( L/N+PE) |
||||||||||||
|
Rated Voltage |
110/115/120/127VAC |
||||||||||||
|
Voltage Range |
Line-Neutral: 60~145VAC |
||||||||||||
|
Frequency Range |
40Hz~70Hz |
||||||||||||
|
Input Power Factor |
≥0.99 |
||||||||||||
|
AC OUTPUT |
|
||||||||||||
|
Wiring |
L/N+PE |
||||||||||||
|
Output Voltage |
110/115/120/127VAC |
||||||||||||
|
Voltage Regulation |
±1% |
||||||||||||
|
Output Frequency |
50/60±4Hz(Sync mode); 50/60Hz±0.1%(Free run) |
||||||||||||
|
Waveform |
Pure sine wave |
||||||||||||
|
Distortion(THDV%) |
<2%(Linear load); <8%(Non-Linear load) |
||||||||||||
|
Overload Capability |
100%~105% continuous; 60Sec.@105%~130% rated load; 10Sec.@130%~150% rated load; 0.3Sec.@>150% rated load |
||||||||||||
|
EFFICIENCY |
|
||||||||||||
|
Line Mode |
88% |
89% |
90% |
||||||||||
|
Battery Mode |
86% |
87% |
88% |
||||||||||
|
BATTERY & CHARGER |
|
||||||||||||
|
Rated Battery Voltage |
48VDC (default for 15cell of LiFePO4 ) |
||||||||||||
|
Battery Capacity |
600WH |
External battery depends |
1000WH |
External battery depends |
1000WH |
External battery depends |
|||||||
|
Backup Time |
>40mins @ half load |
>30mins @ half load |
>20mins @ half load |
||||||||||
|
Charging Current |
4A/8A |
||||||||||||
|
Charging Voltage |
52.8V(default for 15cell of LiFePO4 ) / Customized according to battery request |
||||||||||||
|
Charger Behavior & Protection |
CC. CV. floating. turn-off 4 states 3 over voltage protection loop, preserve interface for over temperature/over pressure switch off interface |
||||||||||||
|
HMI |
|
||||||||||||
|
LED Display |
Mains / battery status, load level, battery level, operation mode |
||||||||||||
|
LCD Display with LED Indicator |
Input mains voltage, frequency, load level, operation mode, health status |
||||||||||||
|

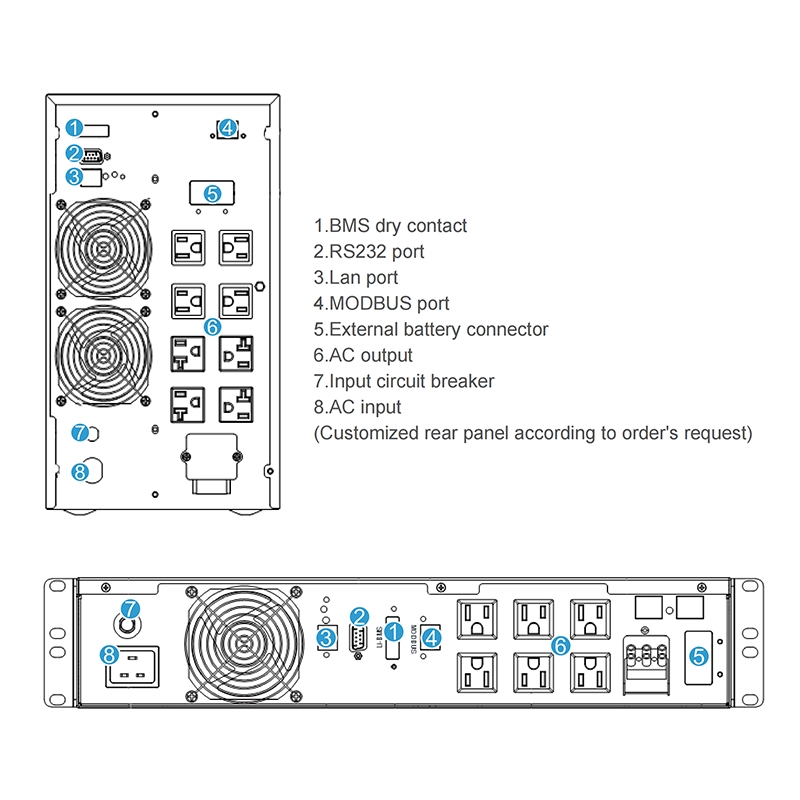

Standards Communication Interface |
(1) RS232 port (2) Network card: support SNMP,TCP/IP protocol , for remote monitor the UPS via smart phone APP, web page, PC monitor software, support server / NAS shutdown (3) Dry contact interface for BMS control (4) MODBUS For BMS interface |
||||||||||||
|
ENVIRONMENT |
|
||||||||||||
|
Temperature Range |
-10~50°C |
||||||||||||
|
Relative Humidity |
0-98%（Non-condensing） |
||||||||||||
|
Acoustics Noise |
<55dB @ 1 meters |
||||||||||||
|
PHYSICAL |
|
||||||||||||
|
Tower Dimension WxDxH (mm) |
C1K: 190x378x318 |
C2K: 190x427x318 |
C3K: 190x427x318 |
||||||||||
|
C1KS: 145x397x220 |
C2KS: 145x397x220 |
C3KS: 190x378x318 |
|||||||||||
|
Rack Dimension WxDxH(mm) |
R1K: 440x400x88 (2U) |
R2K: 440x500x88 (2U) |
R3K: 440x650x88 (2U) |
||||||||||
|
R1KS: 440x400x88 (2U) |
R2KS: 440x400x88 (2U) |
R3KS: 440x400x88 (2U) |
|||||||||||
|
Tower N.W (kg) |
10.8 |
5 |
16.5 |
5.5 |
18 |
7.9 |
|||||||
|
Rack N.W (kg) |
12.5 |
6.5 |
21.6 |
6.8 |
24.5 |
8.2 |
|||||||
