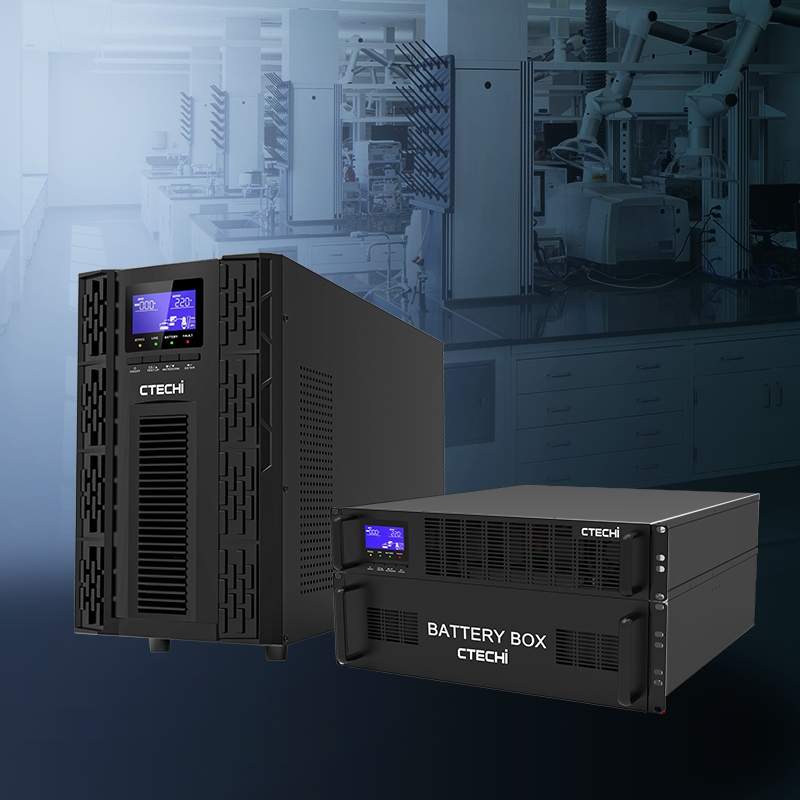

CTECHI 110 V High-Voltage LiFePO₄ UPS (6–10 kVA) – Tower & Rack-Mount, Online Double-Conversion for Data Centers
- Capacity: 6KVA/5.4KW, 10KVA/9KW
- Rated Voltage: 110/115/120/127VAC
- Battery Type: LiFePO4 battery
- Battery: 96V/192V LiFePO4
- Runtime: ~20–30 mins @ half load
- Dimensions (WxDxH): Tower: 190x535x456mm (6K), 190x535x360mm (6KS); Rack: 439.4x530x176mm (4U)
CTECHI 110 V High-Voltage LiFePO₄ UPS (6–10 kVA) – Tower & Rack-Mount, Online Double-Conversion for Data Centers
Detailed Product Features
- Battery & Backup Performance
- Utilizes high-capacity LiFePO₄ batteries (96 V or 192 V configurations), offering up to three times longer backup runtime and a significantly extended lifecycle compared to traditional lead-acid alternatives.
- Provides approximately 20–30 minutes of backup at half load—ideal for maintaining uptime during short-term power disturbances.
- Advanced Inverter & Efficiency
- Built with three-level inverter technology, enhancing overall energy efficiency while reducing harmonic distortion for a cleaner power output.
- Offers high line-mode efficiency, exceeding 91%, which reduces energy losses and lowers operational costs.
- Communication & Integration
- Equipped with versatile monitoring and communication interfaces: RS-232 (standard), and optional USB, SNMP/TCP-IP, MODBUS (RS-485), and AS400 cards—ideal for remote monitoring and integration into infrastructure management systems.
- Generator-compatible, ensuring seamless operation when paired with backup generator systems.
Related Parameters
|

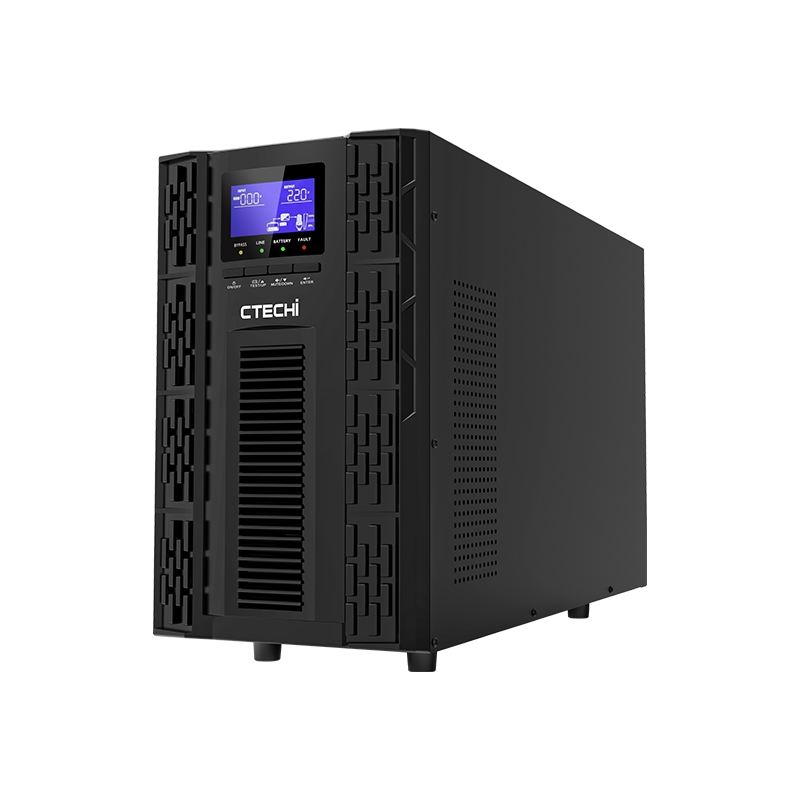

Tower Model |
Li LV C6KS |
Li LV C10KS |
|
|

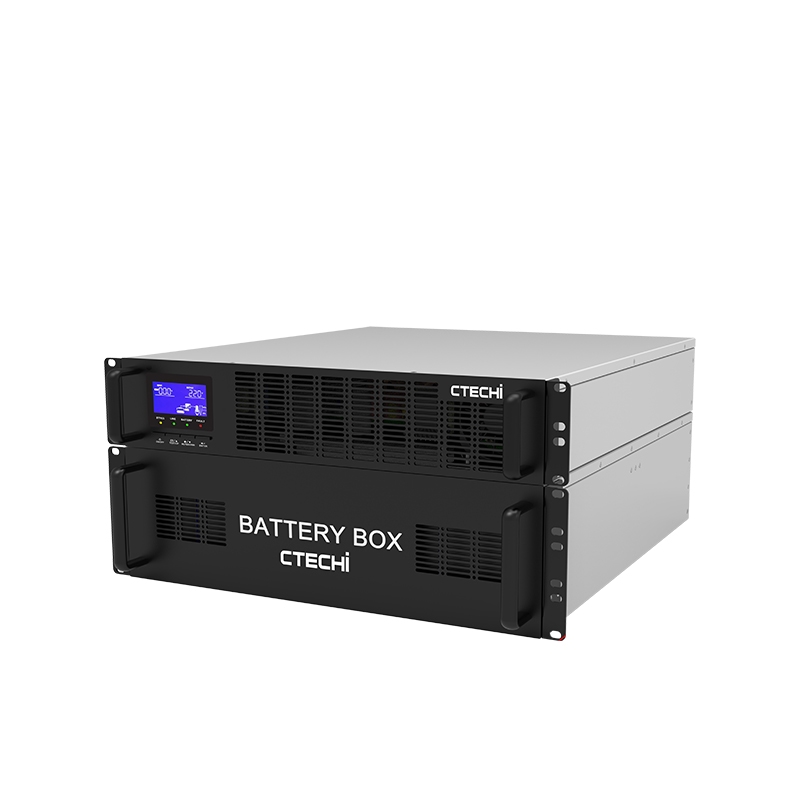

Rack Model |
Li LV R6KS |
Li LV R10KS |
|
|
Capacity |
6KVA/5.4KW |
10KVA/9KW |
|
|
AC INPUT |
|
||
|
Input System |
Single phase (L/N+PE) |
||
|
Nominal Voltage |
100/110/120/127VAC |
||
|
Frequency |
50/60Hz |
||
|
Voltage Range |
60-145Vac±3VAC |
||
|
Frequency Range |
（40~70)±0.5Hz |
||
|
Input Power Factor |
>0.99 |
||
|
Bypass Voltage Range |
80~140VAC×(1±3%) |
||
|
BATTERY INPUT |
|
||
|
Charging Voltage |
216V(default for 60cell of LiFePO4 ) / Customized according to battery request |
||
|
Battery Capacity |
External |
||
|
Charger Behavior & Protection |
CC. CV. floating. turn-off 4 states 3 over voltage protection loop, preserve interface for over temperature/over pressure switch off interface |
||
|
Charging Current |
Long backup time model: 4A/8A (optional) |
||
|
AC OUTPUT |
|
||
|
Output Wiring System |
Single phase (L/N+PE) |
||
|
Inverter Output Voltage |
100/110/120/127VAC ± 2% |
||
|
Waveform |
Pure sine wave |
||
|
Harmonic Distortion |
THD<2% (linear load); THD<7% (non-linear load) |
||
|
Output Frequency |
50/60±4Hz (Sync mode); 50/60Hz±0.1% (Fix freq.mode) |
||
|
Overload Capability |
105～125%≥ 60s; 126～150%≥30s, The recover point is 70%. |
||
|
Transfer Time |
Line mode <-> Battery mode: 0ms |
||
|
EFFICIENCY |
|
||
|
Line Mode |
>92% |
>93% |
|
|
Battery Mode |
>90% |
||
|
OTHERS |
|
||
|

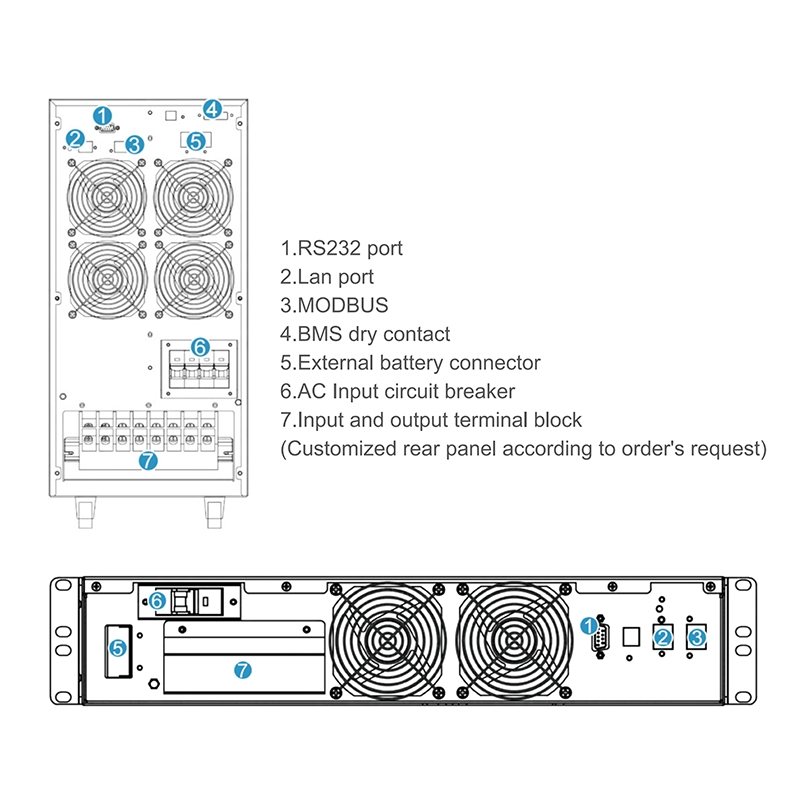

Standards Communication Interface |
(1) RS232 port (2) Network card: Support SNMP,TCP/IP protocol , for remote monitor the UPS via smart phone APP, web page, PC monitor software, support server / NAS shutdown (3) Dry contact interface for BMS control (4) MODBUS for BMS interface |
||
|
Alarm Function |
AC/DC input under abnormal, overload condition and inverter problems |
||
|
Protection Function |
AC input or output above or below the range of voltage, overload, over temperature and short circuit protection |
||
|
ENVIRONMENT |
|
||
|
Temperature Range |
-10~50°C |
||
|
Relative Humidity |
0-98%（Non-condensing） |
||
|
Acoustics Noise |
<55dB @ 1 meters |
||
|
PHYSICAL |
|
||
|
Tower Dimension WxDxH (mm) |
190x546x340 |
239x555x528 |
|
|
Rack Dimension WxDxH(mm) |
439.4x500x88 (2U) |
439.4x530x176 (4U) |
|
|
Tower N.W (kg) |
16 |
26.1 |
|
|
Rack N.W (kg) 15 |
26.1 |
||
