Top Quality 50 Watt 12 Volt Flexible Monocrystalline Solar Panel Wholesale-CTECHi
OEM WELCOME
ODM ACCEPTABLE
DISTRIBUTOR WANTED
SKD (SEMI KNOCK DOWN)SERVICE

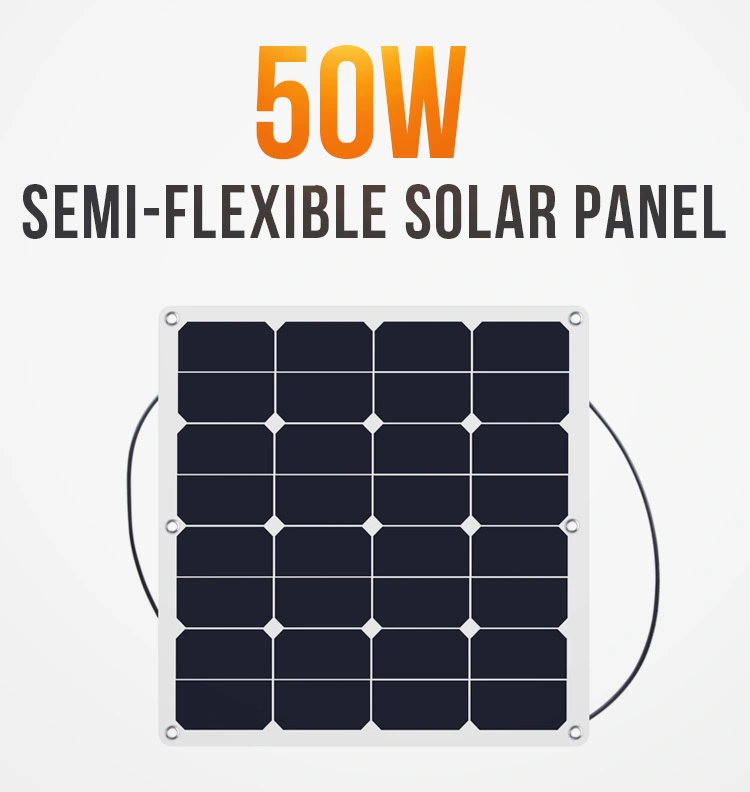

50W 12V Flexible Solar Panel
1. High efficiency
The efficiency of our semi-flexible solar panel is up to 23%, however, most of the other similar items on the market are only around 21.5% or less.
2. Easy installation
(1) Holes on the panels are pre-drilled for fast mounting and securing, perfect for non-permanent installations.
(2) Can be affixed by adhesive, grommets or velcro (with which you can easily attach or detach the panels.)
(3) Can be installed without costly structural roof reinforcements.
3. Widely Compatibility
Sailboats, Yachts, Marine applications, Motorhomes, expedition vehicles, Commercial Trucks, Caravans, Off-Grid and Remote communication sites, and more.
4. Flexible
(1) Can be curved to a maximum 30 degrees arc.
(2) Versatile installation options: applicable for RV, boat, cabin, tent, yachts, or any other irregular surface.
(3) Ideal for storage in tight-spaced or crowded areas that are typically off-limits for traditional glass and aluminum models.
5. Reliable
The junction box is sealed and waterproof.
6. Productivity
Bypass diodes minimize performance drop due to partial shade and prevent battery discharge at night.
7. Professional Technical Suppor
We have our own professional R&D team experience in the solar panel fields over 10 years.
8. Warranty Policy
12-month worry-free product guarantee for every purchase from us. Efficient and 100% satisfied customer service
| Model | CTSP50 | CTSP100 | CTSP175 | CTSP200 |
| Maximum Power at STC | 50W | 100W | 175W | 200W |
| Module Efficiency | 14.40% | 14.90% | 17.30% | 16.70% |
| Optimum Operating Voltage (Vmp) | 20.3V | 18.9V | 19.5V | 20.1V |
| Open-Circuit Voltage (Voc) | 24.3V | 22.5V | 23.9V | 23.9V |
| Optimum Operating Current (Imp) | 2.47A | 5.29 A | 8.98A | 10.02A |
| Short-Circuit Current (Isc) | 2.75A | 5.75 A | 9.50 A | 10.74A |
| Operating Temperature | -40°F to 185°F(-40ºC to +85ºC) | |||
| Maximum Series Fuse Rating | 15A | 15A | 15A | |
| Maximum System Voltage | 600 VDC UL | 600V DC (UL) | 600V DC (UL) | |
| Weight | 2.87 lbs (1.3 kg) | 4.2 lbs (1.9 kg) | 6.2 lbs (2.8 kg) | 4.9 kg / 10.8 lbs |
| Dimensions | 26.9 x 20.0x 0.16 in (683 x 508 x 4 mm) | 48.0 x 21.6 x 0.08 in (1219 x 546 x 2 mm) | 59.2 x 26.5 x 0.08 in (1504 x 673 x 2 mm) | 1605 x 748 x 3 mm (63.2 x 29.4 x 0.1 in) |
CTECHi offers high-quality, 50 watt, 12 volt flexible monocrystalline solar panels at wholesale prices for bulk orders. Our solar panels are perfect for a variety of portable solar applications, including RVs, boats, and off-grid power systems.
Key Features:
Durable and Flexible: Made with advanced laminated technology and ETFE material for enhanced light transmittance, weather resistance, and scratch resistance.
Easy to Install: Lightweight and flexible design allows for easy installation on curved surfaces.
Hassle-Free Maintenance: Simply wipe clean with a damp cloth.
Industry-Standard Compatibility: Equipped with a standard solar connector for easy connection with third-party power stations.
Benefits for Bulk Order Customers:
High-Quality Product: Ensure customer satisfaction with a reliable and efficient solar panel.
Competitive Wholesale Pricing: Increase your profit margins with bulk order discounts.
Wide Range of Applications: Cater to a diverse customer base with a versatile solar panel solution.
