Professional 100 Watt 12 Volt Flexible Monocrystalline Solar Panel 12v 100w Supplier-CTECHi
OEM WELCOME
ODM ACCEPTABLE
DISTRIBUTOR WANTED
SKD (SEMI KNOCK DOWN)SERVICE

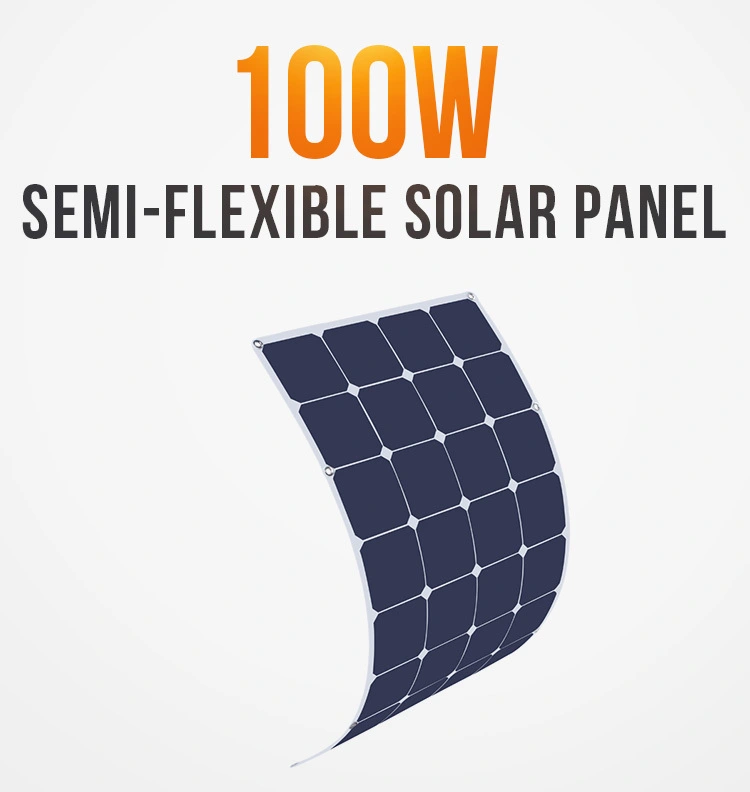

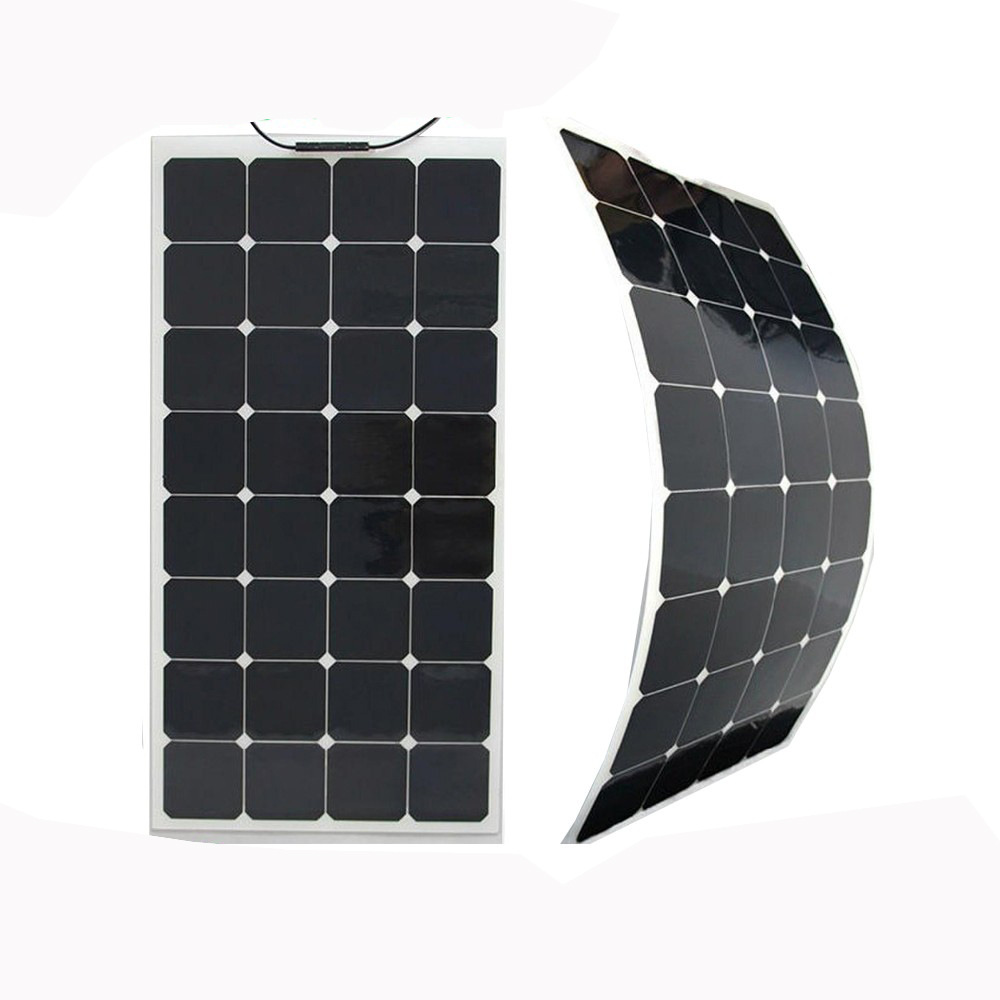

100W 12V flexible Solar Panel
Flexible panel use unique shingled cells technology. The panel made with conducting resin paste without ribbon to minimizes the optical and resistive losses, improve mechanical load to flexing over 30 degrees, and are able to withstand harsh weather conditions and are almost impervious to corrosion.
1. The latest Shingled PERC solar cells technology.

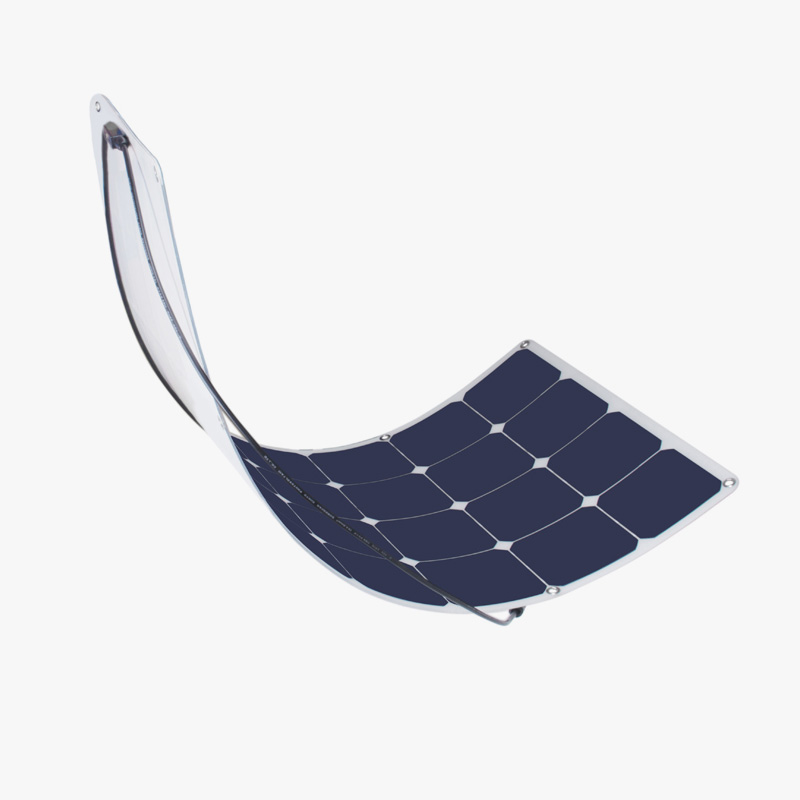

2.Over 30 degrees of ultimate bending no cells cracks.
3. Improved 15~20% power of output than the traditional panel.
4. Minimizes the optical and resistive losses.
5. 13years workmanship and materials warranty.
6.OEM and ODM supported.
| Model | CTSP50 | CTSP100 | CTSP175 | CTSP200 |
| Maximum Power at STC | 50W | 100W | 175W | 200W |
| Module Efficiency | 14.40% | 14.90% | 17.30% | 16.70% |
| Optimum Operating Voltage (Vmp) | 20.3V | 18.9V | 19.5V | 20.1V |
| Open-Circuit Voltage (Voc) | 24.3V | 22.5V | 23.9V | 23.9V |
| Optimum Operating Current (Imp) | 2.47A | 5.29 A | 8.98A | 10.02A |
| Short-Circuit Current (Isc) | 2.75A | 5.75 A | 9.50 A | 10.74A |
| Operating Temperature | -40°F to 185°F(-40ºC to +85ºC) | |||
| Maximum Series Fuse Rating | 15A | 15A | 15A | |
| Maximum System Voltage | 600 VDC UL | 600V DC (UL) | 600V DC (UL) | |
| Weight | 2.87 lbs (1.3 kg) | 4.2 lbs (1.9 kg) | 6.2 lbs (2.8 kg) | 4.9 kg / 10.8 lbs |
| Dimensions | 26.9 x 20.0x 0.16 in (683 x 508 x 4 mm) | 48.0 x 21.6 x 0.08 in (1219 x 546 x 2 mm) | 59.2 x 26.5 x 0.08 in (1504 x 673 x 2 mm) | 1605 x 748 x 3 mm (63.2 x 29.4 x 0.1 in) |
CTECHi Professional 100 Watt 12 Volt Flexible Monocrystalline Solar Panel
Unleash the Power of the Sun:Generate clean, sustainable energy with CTECHi's professional-grade 100W flexible solar panel. This monocrystalline panel boasts high efficiency in converting sunlight into usable 12V DC power, perfect for off-grid applications.
Designed for Versatility:The lightweight and flexible design makes it ideal for RVs, boats, caravans, uneven surfaces, and more. Easily mount the panel to your desired location for portable power generation.

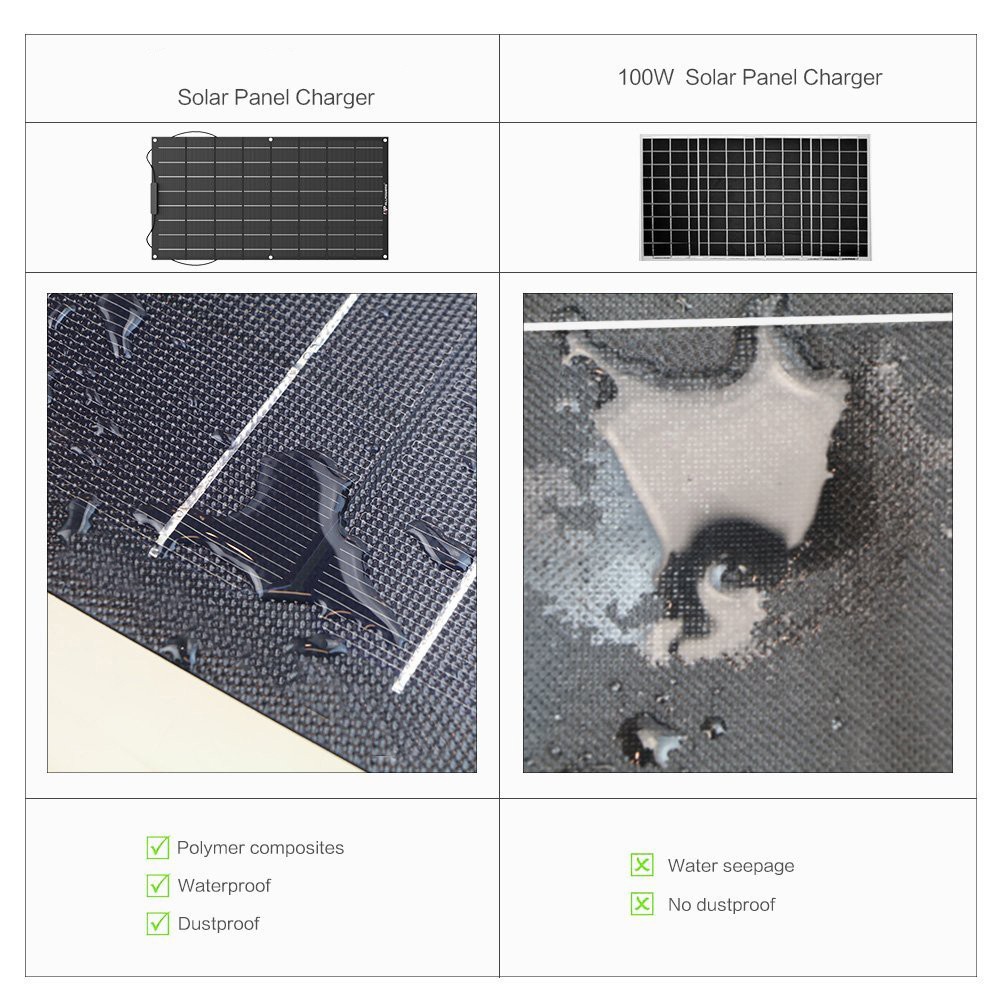

Built to Last:Our durable solar panel features a weatherproof ETFE surface and a strong backing, ensuring reliable performance for years to come.
Benefits for Bulk Buyers:
High-Quality Construction: We use premium materials and rigorous quality control to ensure every panel delivers exceptional performance.
Competitive Pricing: CTECHi offers bulk-friendly pricing to make your business profitable.
Factory-Direct Support: Our dedicated team is here to answer your questions and support your needs.
Applications:
RV & Campervan Power Supply
Off-Grid Lighting & Appliances
Marine Battery Charging
Remote Cabin Power Systems
Emergency Backup Power
Join the Clean Energy Revolution:
Choose CTECHi's 100W flexible solar panel as your reliable source of off-grid power. Contact us today to discuss bulk order options and unlock the potential of solar energy for your customers.
