CTECHI is an expert in battery solutions, specializing in ODM, OEM, and SKD for energy storage, motive power, and consumer batteries.

Professional 60A MPPT Charge Controller 12/24/36/48V Auto Negative Grounded Model Supplier-CTECHi 1
Professional 60A MPPT Charge Controller 12/24/36/48V Auto Negative Grounded Model Supplier-CTECHi 2
Professional 60A MPPT Charge Controller 12/24/36/48V Auto Negative Grounded Model Supplier-CTECHi 3
Professional 60A MPPT Charge Controller 12/24/36/48V Auto Negative Grounded Model Supplier-CTECHi 4
Professional 60A MPPT Charge Controller 12/24/36/48V Auto Negative Grounded Model Supplier-CTECHi 5
Professional 60A MPPT Charge Controller 12/24/36/48V Auto Negative Grounded Model Supplier-CTECHi 1
Professional 60A MPPT Charge Controller 12/24/36/48V Auto Negative Grounded Model Supplier-CTECHi 2
Professional 60A MPPT Charge Controller 12/24/36/48V Auto Negative Grounded Model Supplier-CTECHi 3
Professional 60A MPPT Charge Controller 12/24/36/48V Auto Negative Grounded Model Supplier-CTECHi 4
Professional 60A MPPT Charge Controller 12/24/36/48V Auto Negative Grounded Model Supplier-CTECHi 5

Professional 60A MPPT Charge Controller 12/24/36/48V Auto Negative Grounded Model Supplier-CTECHi

    oops...!

    no product data.

    Go to homepage
    Availability
    OEM, ODM

    OEM WELCOME
    ODM ACCEPTABLE
    DISTRIBUTOR WANTED
    SKD (SEMI KNOCK DOWN)SERVICE

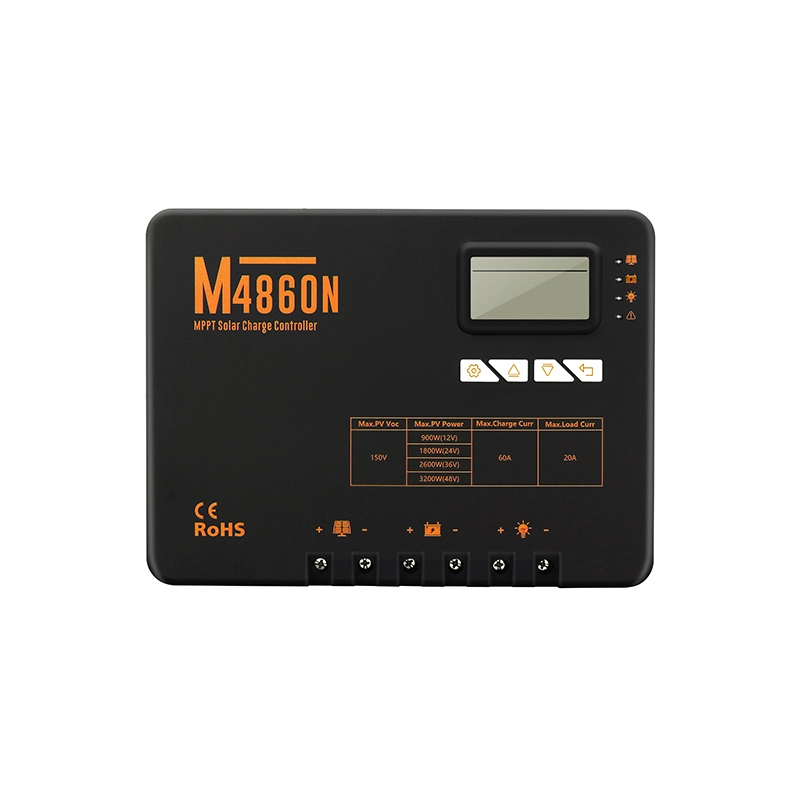

    Introducing the M4860N MPPT Charge Controller: Empowering Your Solar System

    Harness the power of the sun with the M4860N MPPT Charge Controller, a cutting-edge solution for small to medium-sized solar standalone power systems of up to 3.2KW. Built with advanced Maximum Power Point Tracking (MPPT) technology, this controller ensures maximum efficiency in solar energy utilization, allowing you to make the most out of every ray of sunlight.

    Negative Grounded Model:

    Designed to meet the electrical wiring standards widely required in solar power systems across North America, the M4860N is a negative grounded model. This ensures seamless integration into your solar setup, providing compatibility and compliance with industry norms.

    Versatile Compatibility:

    With support for 12/24/36/48V auto-detection, this charge controller offers unparalleled versatility, allowing it to adapt to a wide range of solar system configurations. Whether you're using lead-acid, lithium, or other battery types, the M4860N is equipped to handle your charging needs with precision and reliability.

    Efficient Performance:

    Experience enhanced performance and optimal energy conversion with the M4860N MPPT Charge Controller. Its intelligent tracking algorithm continuously adjusts the operating parameters to extract maximum power from your solar panels, ensuring efficient charging and extended battery life.

    User-Friendly Design:

    Featuring a user-friendly interface and intuitive controls, the M4860N makes setup and operation a breeze. Monitor system performance, adjust settings, and track charging status with ease, thanks to the clear display and accessible interface.

    Upgrade your solar power system with the M4860N MPPT Charge Controller and unlock the full potential of solar energy. With its advanced features, versatile compatibility, and reliable performance, it's the perfect choice for powering your off-grid adventures, residential installations, and more.

    Function:

    * 12/24/36/48V battery system auto recognition

    * 150Voc max PV input voltage

    * 60A max charge current

    * 3.2KW max PV input power

    * 300 days max data logging

    * 0.3W max self-power consumption

    * Negative grounded design

    * Inbuilt BT module for APP operation

    Advanced Maximum Power Point Tracking (MPPT) Technology

    * Fast MPPT starts with ultra-fast of sweeping of the entire V-I curve

    * Smart MPPT algorithm ensures better tracking in multiple power points

    * High PV harvest performance in weak sunlight conditions

    * Excellent peak efficiency exceeds 98%

    High Quality & Functions

    * No cooling fan; over-rating size heating sink

    * Overrating electronic components to minimize the power loss from heating

    * Full charge power output up to 45ºC

    * Compensates battery charge voltages with use of a temperature sensor

    * LCD screen display; key operation for parameter settings

    * Lead-acid AGM/GEL/Flooded & Lithium batteries supportable

    Reliable Electronic Protections

    * Advanced protections for battery charge & discharge

    * Over-heating protection by power derating if the temperature is high

    * Allow max 25% exceeding rated power without controller damage

    * Extensive protections including PV reverse polarity & reverse current protection

    Extensive Device Functions

    * RS485 port for Modbus communication

    * External port for multiple devices parallel use

    * Extra 20A DC load output control with various load modes

    * External Bluetooth module connection for APP operation

    * External remote LCD connection

    Item
    Value
    Type
    MPPT
    Battery type
    Sealed Gel AGM Flooded Lithium
    System voltage
    12/24/36/48V
    Rated Current
    60A
    Max PV Voltage
    150V
    Max PV Power
    3200Wp
    Communication
    RS485(RJ12)/Bluetooth
    App
    ChargePro 2.0
    Display
    LCD Screen
    Work Time (h)
    24
    Working Temperature( C)
    -35℃~45℃
    Warranty
    3 years
    Certificate
    CE RoHS
    OEM/ODM
    Accepted
    Battery Voltages
    Battery Parameters
    Battery Types
    FLD
    SEL
    GEL (default)
    Li (adjustable)
    Equalize Charge Voltage
    14.8V*n
    14.6V*n
    -
    -
    Boost Charge Voltage
    14.6V*n
    14.4V*n
    14.4V*n
    Default : 14.2V*n
    Float Charge Voltage

    13.8V*n

    -
    Boost Charge Recovery Voltage

    13.2V*n

    -
    Over-discharge Recovery Voltage

    12.6V*n

    -
    Over-discharge Voltage

    11.1V*n

    Default : 11.1V*n

    Introducing the industry-leading 60A MPPT Solar Charge Controller from [Your Company Name]!

    This powerful MPPT controller maximizes solar panel output, ensuring your off-grid system operates at peak efficiency.  Featuring a wide compatibility range (12V, 24V, 36V, and 48V battery systems) and auto negative grounding, this controller seamlessly integrates into your existing solar setup.

    Benefits for Bulk Order Customers:

    • Increased Profitability:  Attract new customers and expand your offerings with a reliable, high-performance MPPT solar charge controller.

    • Reduced Inventory Costs: Our controller's versatility eliminates the need to stock multiple models for different voltage systems.

    • Superior Quality:  Manufactured with top-tier components, our MPPT charger delivers long-lasting performance and minimal maintenance requirements.

    This 60A MPPT Solar Charge Controller is ideal for a variety of off-grid solar applications, including:

    • Residential solar power systems

    • Remote cabins and outbuildings

    • Telecommunication towers

    • Industrial solar installations


    Get in touch with us
    Just leave your email or phone number in the contact form so we can send you a free quote for our wide range of designs!
