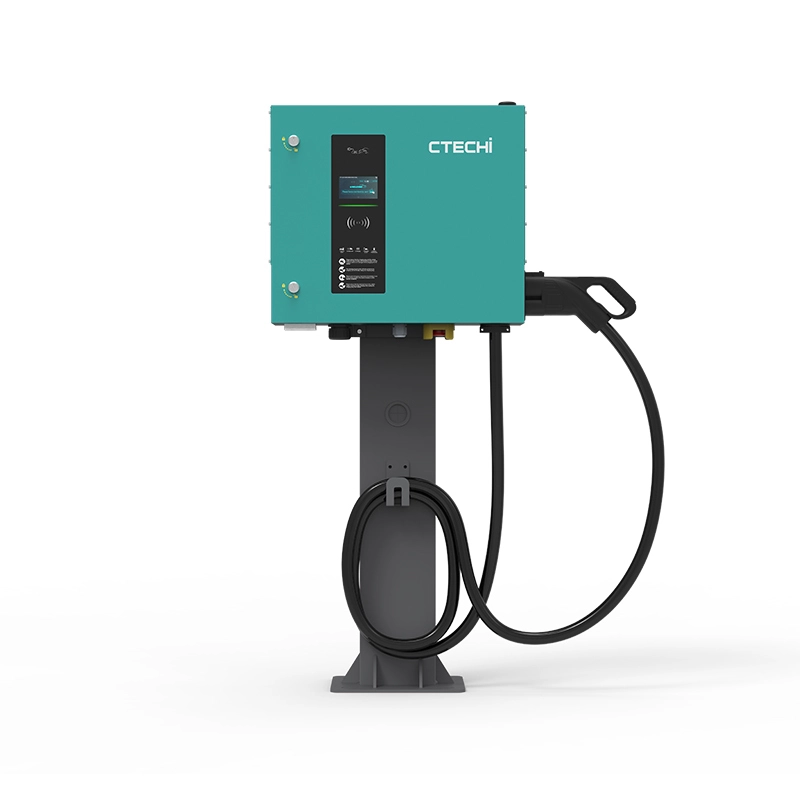

The DC EV charger is the top choice for powering battery electric vehicles (BEV) and plug-in electric vehicles (PHEV) today. It is designed for quick charging in both public and private locations, such as retail and commercial parking spaces, fleet charging stations, highway service areas, workplaces, residences, etc.
4.3 Inch LCD Display
LCD screen can display the real-time charging status, including time, voltage, current, power and temperature.
Parameter type | Description | PEVC3401E/U-30K1000N1 |
Input | Power Supply | 3P+N+PE |
Rated voltage | 400VAC115% | |
Frequency | 50/60Hz | |
THDi | s5% | |
Eficiency | z95% | |
Power Factor | 20.98 | |
Output | Connector Type | CCS Combo 1/CCS Combo 2 |
Voltage | 150-1000VDC | |
Maximum Curent | 100A | |
Power Rating | 30kW | |
Voltage Accuracy | s0.5% | |
Current Accuracy | s土1% | |
General | HMI | 4.3-Inch Touchscreen |
Payment Method | RFID Card,APP | |
Cable Length | 5m | |
Network Connection | Cellular modem:4G L AN:10/1 00 Base-T Ethernet | |
Communication Protocol | OCPP1.6J | |
Operating Noise Level | s75dB | |
lngress Rating | IP54 | |
IK Rating | IK10 | |
Power Meter | Accuracy Class 1.0 energy meter Galvanized steel | |
Enclosure | ||
Place of Installation | Indoor / Outdoor | |
Product Dimension(W*D*H) | 640*1 60* 550mm | |
Package Dimension(W*D*H) | 808* 748* 438mm | |
Protection | Over Current,Under Voltage ,Over Vtltage, Short Circuit Residual Current, Surge Protection, Over Temperature. ,Ground Protection | |
Certification Standard | EN/EC 61851-1, ENIEC 61851-23, EN/IEC61851-24, IEC62196-1,IEC62196-3 | |
Environmental | Operating temperature | -30*C~+55*C |
Storage temperature | -40C~+75*C | |
Maximum Installation Height | s2000m | |
Operating Humidity | 5%~95% RH |
