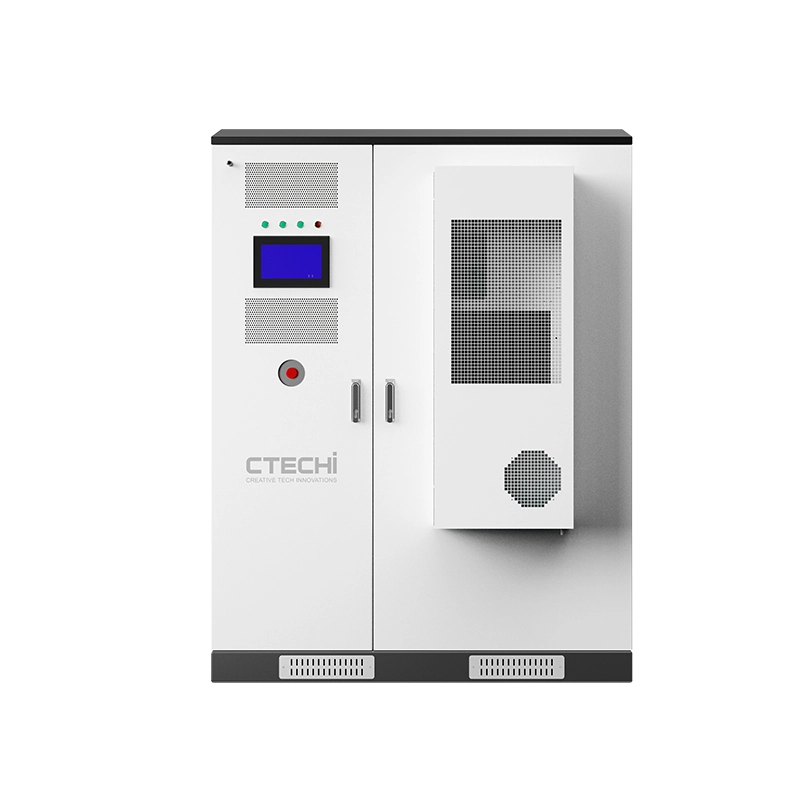

CTECHI 100KW 215KWH 230KWH 241KWH Battery Energy Storage System BESS
Detailed Product Features
Related Parameters
Battery Parameters |
Remark |
|
Battery Type |
LFP,3.2V/280AH/300Ah/314Ah |
|
Battery Box |
48S1P-153.6V280AH/300Ah/314Ah,43Kwh/46Kwh/48Kwh |
|
Battery Box Quantity |
5pcs |
|
Rated Power |
215Kwh/230Kwh/241Kwh |
|
Rated Voltage |
768V |
|
Voltage Range |
648V~876(2.7v~3.65v) |
|
Charge And Discharge Rate |
≤ 1C |
|
Discharge Depth |
90% |
|
Communication Interface |
RS485/CAN |
|
Cooling Method |
Intelligent Air Cooling |
|
PCS Parameters |
|
|
Operating Voltage Range |
615~950 V ( 3W+PE ) /650~950 V ( 3W+N+PE ) |
DC Side |
Full Load Voltage Range ( V ) |
615~950 V( 3W+PE ) /6 80 ~950 V( 3W+N+PE ) |
|
Input Circuit |
1 |
|
Maximum Current |
170A |
|
Rated Voltage |
230/400 V |
AC Side (Grid-Connected) |
Voltage Deviation |
-15%~+15% |
|
AC Output Type |
( 3W+PE ) Three-Phase Three-Wire / ( 3W+N+PE ) Three-Phase Four-Wire |
|
Rated Output Power |
105KW |
|
Maximum Output Power |
116KW |
|
Maximum Current |
167A |
|
Rated Grid Frequency |
50/60Hz |
|
Power Factor |
0.99 |
|
Power Factor Range |
1 (Leading) ~1 ( Lagging) |
|
Current Distortion Rate |
< 2% (Rated Power) |
|
DC Component |
0.5% |
|
Overload Capacity |
110% Long Term |
|
Maximum Efficiency |
98.5% |
|
Rated Output Voltage |
230/400 V |
AC Side (Off-Grid) |
AC Voltage Harmonics |
< 3% (Linear Load) |
|
Rated Frequency |
50/60 Hz |
|
Rated Output Power |
105KW |
|
Maximum Apparent Power |
116KW |
|
Maximum Output Current |
167A |
|
System Parameters |
|
|
Installation Location |
If You Need To Install It Outdoors, You Need To Build A Canopy. |
|
Protection Level |
IP54 |
|
Corrosion Resistance |
None |
|
Operating Humidity Range |
0~95% (No Condensation) |
|
Operating Temperature Range |
-20~60 ℃ |
|
Maximum Operating Altitude |
3000m (>2000m Derating) |
|
Cooling Method |
Strong Exhaust |
|
Dimensions (W*D*H) |
2050*1602*1555 |
|
Weight |
2000Kg |
|
