CTECHI is an expert in battery solutions, specializing in ODM, OEM, and SKD for energy storage, motive power, and consumer batteries.

cell button battery service for camera CTECHi 1
cell button battery service for camera CTECHi 2
cell button battery service for camera CTECHi 1
cell button battery service for camera CTECHi 2

cell button battery service for camera CTECHi

Origin:
CHINA GUANGDONG
Package:
Industrial Package
Certificate:
CE/RoHS/UN38.3/MSDS
Warranty:
1 Years
Color:
Sliver/Green
Model:
CR-2016
MOQ:
10 prices
Payment:
L/C, D/A, D/P, T/T, Western Union, MoneyGram, OA
Brand:
CTECHi
Inquiry
Brand
CTECHi
Weight
1.75g
Item
CR2016 3.0V 90mAh LiMnO2 button Battery
Voltage Nominal
3.0V
Capacity Nominal
90mAh
Energy
0.27Wh
Dimension
20*1.6mm
Charge
NO
Operating Temperature
-20+60℃
Certification
CE, CCC, UL
Availability
OEM, ODM, OEM/ODM
Product Details
The CR2016 battery is a lithium-ion button battery,its diameter is 20mm,thickness is 1.6mm,It is the same as the voltage of other batteries of the same type, it is 3V. But due to the difference in size, its capacity is only 90mAh.
  • cell button battery service for camera CTECHi 3

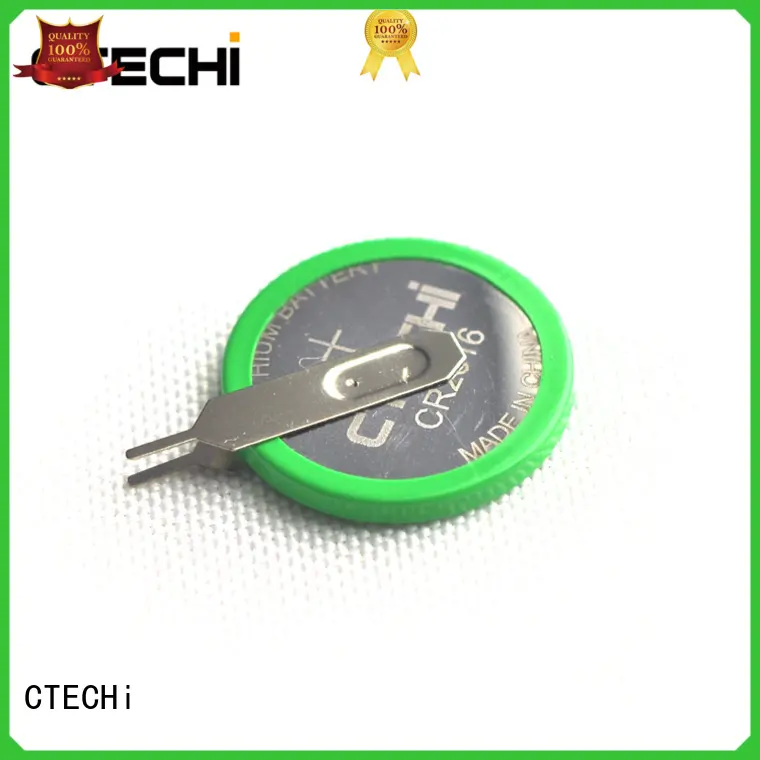

    Different solder tabs can be installed depending on the application
  • cell button battery service for camera CTECHi 4
    There are many options for the shape of the soldering piece of the battery
  • cell button battery service for camera CTECHi 5
    This is the soldering foot of the button battery
  • cell button battery service for camera CTECHi 6
    This is the solder piece picture of the CR2016 battery
  • cell button battery service for camera CTECHi 7
    This is the size picture of the CR2016 button battery
  • cell button battery service for camera CTECHi 8
    This is the discharge curve of the CR2016 button battery.
Application Scope
The CR2016 battery is a common non-rechargeable lithium ion button battery that is commonly used in small electronic products and small digital products.
  • cell button battery service for camera CTECHi 9
    CR2016 Button battery can be used for electronic watch
  • cell button battery service for camera CTECHi 10
    CR2016 Button battery can be used for electronic toys
  • cell button battery service for camera CTECHi 11
    CR2016 Button battery can be used for camera
Solder Processing Solution
Our company also has the following CR2016 battery soldering solutions CR2016/1F2, CR2016/1HF, CR2016/1F3, CR2016/1HM, CR2016/1F4, CR2016/1VC2, Each solution has a different application, and customers can choose the corresponding processing method according to the application.
  • cell button battery service for camera CTECHi 12
Application Scope
With wide application, Dry Battery can be used in the following aspects.CTECHi Group has an excellent team consisting of talents in R&D, production and management. We could provide practical solutions according to actual needs of different customers.
  • cell button battery service for camera CTECHi 13
Company Advantages
1. CTECHi button cell sizes is manufactured in compliance with the industry defined norms and guidelines.
2. This product can store energy reasonably well for a long time with low self-discharge. It will not be affected by outer elements such as temperature, moisture, vibration, shock, etc.
3. The product is durable in use. The electrolyte used in it is made with a precise formula and features high purity, which enhances its performance.
4. CTECHi Technology Co. Ltd has a strong R&D team, top class management force together with a qualified control system.
5. CTECHi Technology Co. Ltd combines the traditional channels and Internet channels, making the trade more efficient and enriching.

cell button battery service for camera CTECHi 14


Company Features
1. CTECHi Battery is the world's popular button battery supplier.
2. In this highly competitive industry, CTECHi has successfully established its own development technology.
3. It's our sincere hope that our lithium button batteries will be of great help to customers. Inquire online! The vision of CTECHi is 3v button battery which support our company to be the prominent manufacturer in the future. Inquire online!
Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
