CTECHI is an expert in battery solutions, specializing in ODM, OEM, and SKD for energy storage, motive power, and consumer batteries.

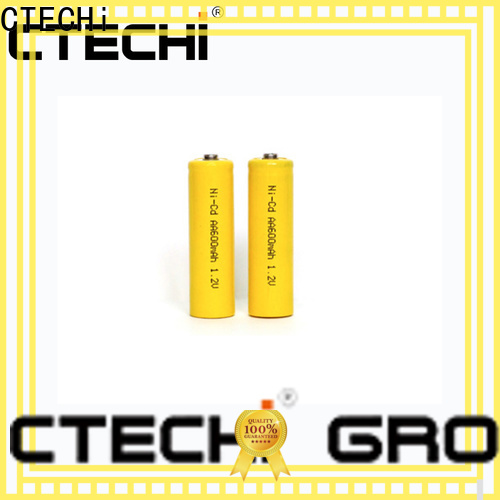

wide temperature range saft ni cd battery factory for payment terminals

Inquiry

Video Display

Product Details

Ni-Cd Battery 1.2V AA 600mAh features including : a Rapid Charge, Reliable service life, Recharges hundreds of times, Saves you hundreds of dollars, Can be replaced in any product that uses AA Batteries. High energy series giving a higher operating time • Good storage retention • Fast charge • Cycling application Technology • Sintered positive electrode • Plastic bonded negative electrode Temperature range in discharge - 20°C to + 65°C Storage Recommended: + 5°C to + 25°C Relative humidity: 65 ± 5 % Standard Series Nickel-Cadmium VRE AA 600 Electrical characteristics Nominal voltage (V) 1.2 Typical capacity (mAh)* 700 IEC minimum capacity (mAh)* 600 IEC designation KRMR 15/51 Impedance at 1000 Hz (m Ω) 16 * Charge 16 h at C/10, discharge at C/5. Dimensions Diameter (mm) 14 ± 0.1 Height (mm) 48 ± 0.3 Top projection (mm) 0.8 ± 0.2 Top flat area diameter (mm) 4 ± 0.2 Weight (g) 19 Dimensions are given for bare cells. Charge conditions Rate Time (h) Temp. (°C) Charge current (mA) Fast* ~1 + 10 to + 45 up to 600 Standard 16 0 to + 50 60 Trickle** 15 to 30 * End of charge cut-off is requested: -dV or dT°C/dt. ** Trickle charge follows fast charge. Maximum discharge current Continuous (A) at + 20°C 1.8 Peak (A) at + 20°C* 41 * Peak duration: 0.3 second - final discharge voltage 0.65 volt/cell. To meet customers’ requirements, our provides custom-designed and standardized battery packs. For your battery design and system needs, please contact us.

CTECHI 12V 600mAh AA Battery Discharge at low rate data
CTECHI AA NiCd 12V 600mAh Battery Charge Retention
CTECHI Battery Ni-Cd 12V AA 600mAh Discharge at high rate data
CTECHI Ni-Cd Battery 12V AA 600mAh Charge Data
CTECHI NiCd 12V AA 600mAh Size

Application Scope

Ni-Cd Battery 1.2V AA 600mAh can be used in Emergency power kit, LED lighting, Cordless phone, toys, camcorders, emergency light, power tools, UPS, Solar, Wind, Mobile generator, Back up power, Solar power bank, Solar LED lighting, Solar street light, Scooter, E-bike, Golf cart, E-motor, E-tour car, tricycle, Electric drill, electric saw, lawn mower, Remote control cars, boat, aircraft, toys, Wireless, Medical devices, equipment and portable equipment, Wearable device, Power supply.

CTECHI 12V NiCd Battery can be used in Wearable device
CTECHI NiCd AA 12V 600mAh can be used in Cordless phone
CTECHI NiCd Battery 12V AA 600mAh can be used in toys

saft ni cd battery description

The product is safe enough. The multiple chemistries encompassed have slightly different compositions of materials that will pose no risks of danger. The product is available in a variety of sizes and shapes

wide temperature range saft ni cd battery factory for payment terminals

saft ni cd battery SPECIFICATIONS

Origin	CHINA GUANGDONG
Package	Corrugated Knife Cards
Certificate	CE/RoHS/UN38.3/MSDS
Warranty	1 Years
Color	Customized Available
MOQ	500pieces
Payment	Paypal/TT/Western Union/LC/DA/DP
Brand	CTECHI
Weight	19g
Item	1.2V 600mAh AA Ni-Cd
Voltage Nominal	1.2V
Capacity Nominal	600mAh
Energy	0.72Wh
Dimension	14.1*48.8
Charge	yes
Operating Temperature	-20+65℃
Availability	OEM, ODM, OEM/ODM

It has stable voltage and excellent storage characteristics. The lifespan is long enough which is strong competitiveness in the market. The product is involved in our cooperation with numerous well-known brands.

Suggested Videos

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
