Product Details

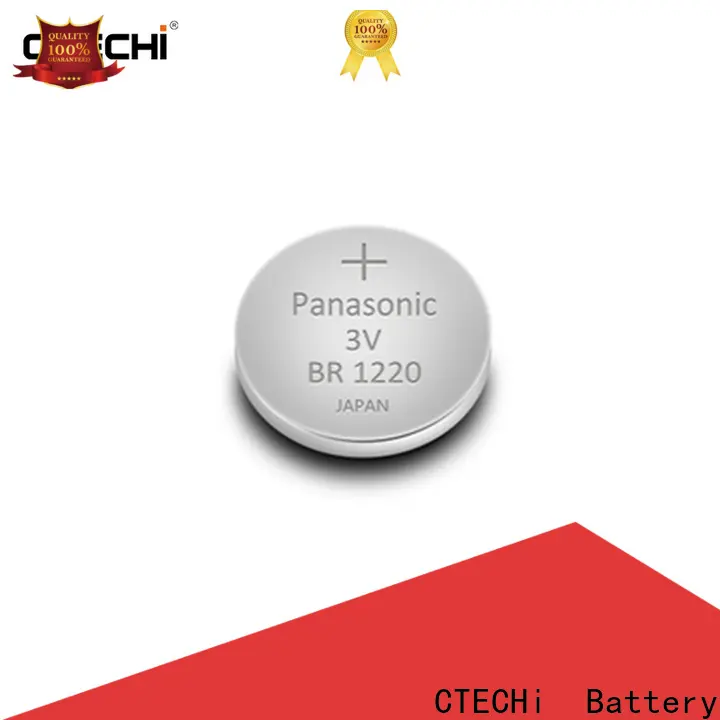

Panasonic's lithium button battery. These batteries are available in a variety of sizes and capacities to meet your application needs. These non-rechargeable batteries are ideal for small electronic devices and have a longer life than alkaline batteries. These batteries are small, round and slim, and are usually used alone, but can be maintained for long periods of time due to less self-discharge. BR1220 Battery Chemical: Lithium battery size: coin, 12.5mm voltage rating: 3V Capacity: 35mAh Size/Size: 12.5mm x 2.0mm, BR-1220 is a 3V / 35mAh coin cell non-rechargeable battery, using lithium polycarbon fluoride technology, can be customized for additional processing, add solder chip terminals, insulation packaging and configuration type, we can also provide you with BR1220/BN, BR1220/FCN, BR1220/HFN, BR1220/HFN, BR1220/VCN. Coin-type lithium batteries are high-energy, high-reliability batteries for a wide range of applications. The full 3V voltage in these high-energy-density batteries is about twice that of conventional dry batteries. Panasonic coin lithium batteries are polycarbon monofluoride lithium batteries (BR series) for uses that require greater reliability and safety.
  • professional panasonic lithium battery 3v customized for flashlight1 3
    1-3V 35mAh BR1220 Dimensions
  • professional panasonic lithium battery 3v customized for flashlight1 4
    2-3V 35mAh BR1220 Temperature Characteristics
  • professional panasonic lithium battery 3v customized for flashlight1 5
    3-3V 35mAh BR1220 Operating voltage vs Load Resistance
  • professional panasonic lithium battery 3v customized for flashlight1 6
    4-3V 35mAh BR1220 Capacity vs Load Resistance
Application Scope
The BR1220 has a voltage of 3V - twice as much as conventional dry batteries. Very small self-discharge, long service life, long shelf life. Small and lightweight. The energy density per unit of weight is extremely high. Very safe (lithium polycarbon fluoride battery). Operating temperature range of -30 to 80 degrees C. A wide range of applications include : Tire Pressure Monitor System (TPMS). Memory Back up, Clock power, Data back-up power. Intelligentized electricity meter, Water meter, Gas meter, Heat meter etc.
  • professional panasonic lithium battery 3v customized for flashlight1 7
    BR1220 3V 35mAh Button Battery can be used in Clock
  • professional panasonic lithium battery 3v customized for flashlight1 8
    BR1220 3V 35mAh Button Cell can be used in TPMS

Other models of wide temperature battery

professional panasonic lithium battery 3v customized for flashlight1 9


Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
