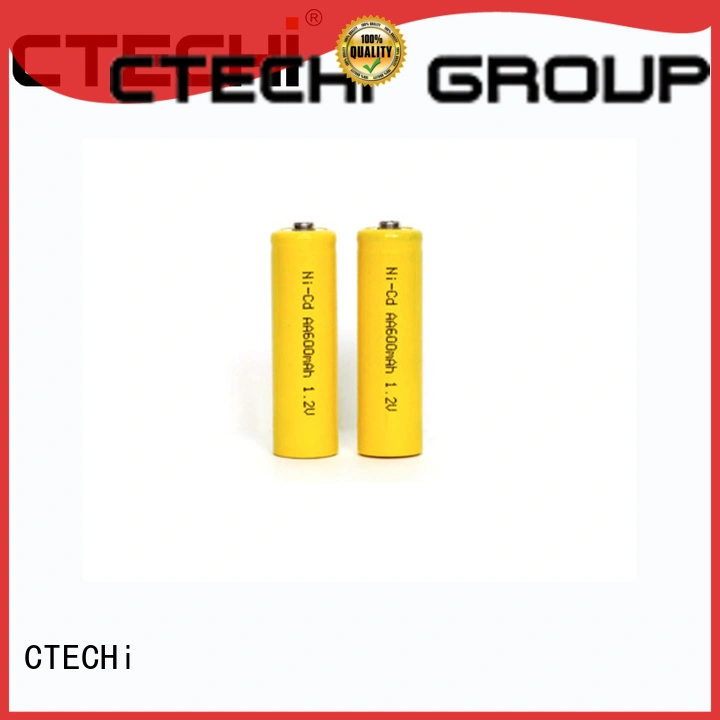

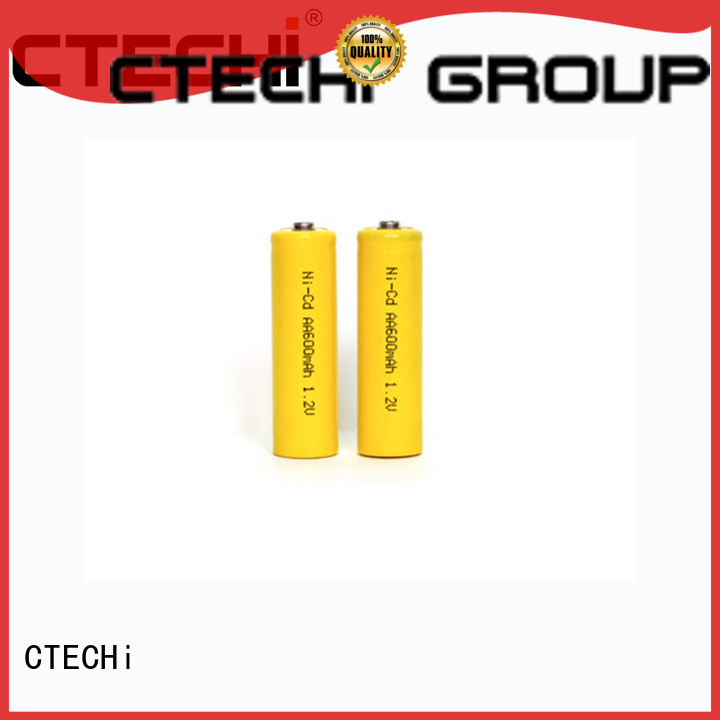

Ni-Cd Battery 1.2V AA 600mAh for Emergency Lighting

Inquiry

Video Display

Product Details

Ni-Cd Battery 1.2V AA 600mAh features including : a Rapid Charge, Reliable service life, Recharges hundreds of times, Saves you hundreds of dollars, Can be replaced in any product that uses AA Batteries. High energy series giving a higher operating time • Good storage retention • Fast charge • Cycling application Technology • Sintered positive electrode • Plastic bonded negative electrode Temperature range in discharge - 20°C to + 65°C Storage Recommended: + 5°C to + 25°C Relative humidity: 65 ± 5 % Standard Series Nickel-Cadmium VRE AA 600 Electrical characteristics Nominal voltage (V) 1.2 Typical capacity (mAh)* 700 IEC minimum capacity (mAh)* 600 IEC designation KRMR 15/51 Impedance at 1000 Hz (m Ω) 16 * Charge 16 h at C/10, discharge at C/5. Dimensions Diameter (mm) 14 ± 0.1 Height (mm) 48 ± 0.3 Top projection (mm) 0.8 ± 0.2 Top flat area diameter (mm) 4 ± 0.2 Weight (g) 19 Dimensions are given for bare cells. Charge conditions Rate Time (h) Temp. (°C) Charge current (mA) Fast* ~1 + 10 to + 45 up to 600 Standard 16 0 to + 50 60 Trickle** 15 to 30 * End of charge cut-off is requested: -dV or dT°C/dt. ** Trickle charge follows fast charge. Maximum discharge current Continuous (A) at + 20°C 1.8 Peak (A) at + 20°C* 41 * Peak duration: 0.3 second - final discharge voltage 0.65 volt/cell. To meet customers’ requirements, our provides custom-designed and standardized battery packs. For your battery design and system needs, please contact us.

CTECHI 12V 600mAh AA Battery Discharge at low rate data
CTECHI AA NiCd 12V 600mAh Battery Charge Retention
CTECHI Battery Ni-Cd 12V AA 600mAh Discharge at high rate data
CTECHI Ni-Cd Battery 12V AA 600mAh Charge Data
CTECHI NiCd 12V AA 600mAh Size

Application Scope

Ni-Cd Battery 1.2V AA 600mAh can be used in Emergency power kit, LED lighting, Cordless phone, toys, camcorders, emergency light, power tools, UPS, Solar, Wind, Mobile generator, Back up power, Solar power bank, Solar LED lighting, Solar street light, Scooter, E-bike, Golf cart, E-motor, E-tour car, tricycle, Electric drill, electric saw, lawn mower, Remote control cars, boat, aircraft, toys, Wireless, Medical devices, equipment and portable equipment, Wearable device, Power supply.

CTECHI 12V NiCd Battery can be used in Wearable device
CTECHI NiCd AA 12V 600mAh can be used in Cordless phone
CTECHI NiCd Battery 12V AA 600mAh can be used in toys

Product Details

We are confident about the exquisite details of Battery.CTECHi Group has professional production workshops and great production technology. Battery we produce, in line with the national quality inspection standards, has reasonable structure, stable performance, good safety, and high reliability. It is also available in a wide range of types and specifications. Customers' diverse needs can be fully fulfilled.

Application Scope

CTECHi Group's Rechargeable Battery can play an important role in various fields.CTECHi Group always pays attention to customers. According customers' actual needs, we could customize comprehensive and professional solutions for them.

Company Advantages
1. CTECHi nicd batterie has been tested to meet the international building materials standards in terms of properties such as toughness, hardness, and tensile strength.
2. The quality of the product is in strict accordance with the industry quality norms.
3. The product provides excellent protection from inclement weather without creating an environment that feels stuffy or closed in.
4. The product can be widely used in the fields of chemistry, biology, pharmacy, medicine, microelectronics, semiconductor, etc.

Company Features
1. CTECHi Technology Co. Ltd is proficient in offering the most exquisite nickel-cadmium battery for more and more customers.
2. The quality of ni-cd battery is supported by nicd batterie technology.
3. batterie nicd is CTECHi Technology Co. Ltd original service philosophy, which fully shows its own superiority. Get info! The service concept of nicd batterie in CTECHi Technology Co. Ltd emphasize on nicd batterie. Get info! Emphasized on nicd batterie, nicd batterie is CTECHi Technology Co. Ltd service concept. Get info!

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
