durable panasonic lithium battery customized for UAV

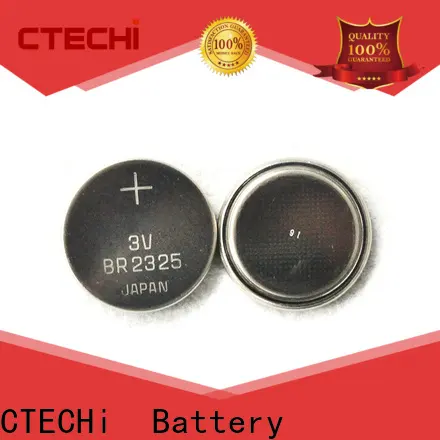

BR2325 can be customized for additional processing, add solder chip terminals, insulation packaging and configuration type, the model as following: BR2325/VGN, BR2325/HGN, BR2325/HGN, BR2325/HBN, BR2325/VCN, BR2325/2HAN, BR2325/HEN, BR2325/GMN. The BR2325 has a voltage of 3V and a capacity of 165mAh. It can be used in various devices in the life. We test the data of this device. Here are some test reports. From the Operating voltage vs. load resistance chart below, you can see the state of the battery voltage at 50% of the battery under different load and temperature conditions. When the load is at 0.1MΩ, the battery voltage is 3.0V when the ambient temperature is 80°C, the battery voltage is 2.86V when the ambient temperature is 60°C, and the battery voltage is 2.8V when the ambient temperature is 20°C. When the ambient temperature is -10 °C, the battery voltage is 2.68V, when the ambient temperature is -20 °C, the battery voltage is 2.5V, and when the ambient temperature is -30 °C, the battery voltage is 2.45V. When the load is at 1MΩ, the battery voltage is 3.18V when the ambient temperature is 80°C, the battery voltage is 3.02V when the ambient temperature is 60°C, and the battery voltage is 2.95V when the ambient temperature is 20°C. When the ambient temperature is -10 °C, the battery voltage is 2.8V, when the ambient temperature is -20 °C, the battery voltage is 2.75V, and when the ambient temperature is -30 °C, the battery voltage is 2.65V. When the load is at 10MΩ, the battery voltage is 3.25V when the ambient temperature is 80°C, the battery voltage is 3.1V when the ambient temperature is 60°C, and the battery voltage is 3.0V when the ambient temperature is 20°C. When the ambient temperature is -10 °C, the battery voltage is 2.9V, when the ambient temperature is -20 °C, the battery voltage is 2.88V, and when the ambient temperature is -30 °C, the battery voltage is 2.8V.
