CTECHi panasonic lithium battery 3v series for drones2

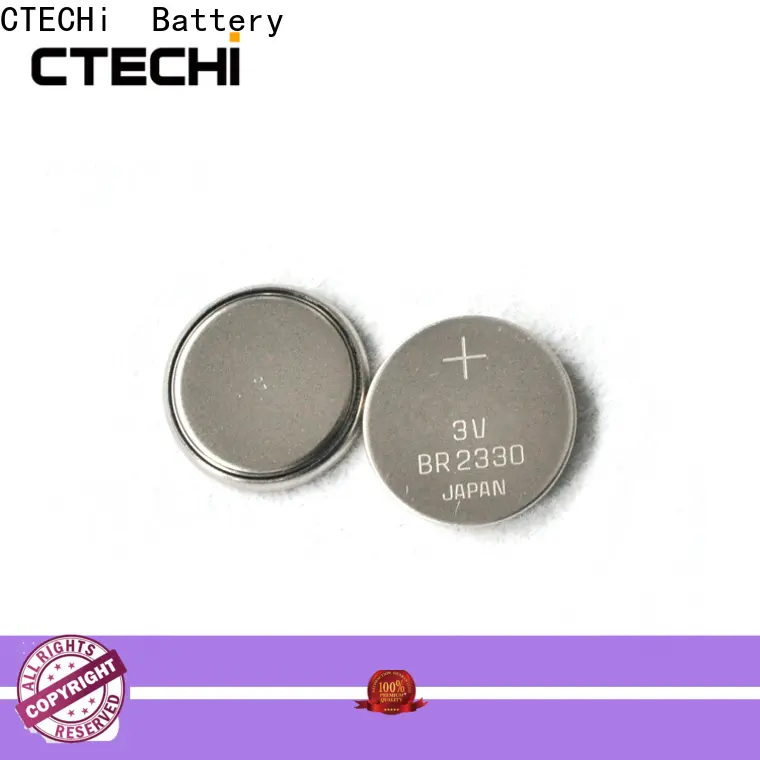

BR2330 can be customized for additional processing, add solder chip terminals, insulation packaging and configuration type, the model as following: BR2330/VCN, BR2330/GVFN, BR2330/HEN, BR2330/F3N, BR2330/HFN, BR2330/GUFN. The BR2330 has a voltage of 3V and a capacity of 255mAh. It can be used in various devices in the life. We test the data of this device. Here are some test data presentations. From the Operating voltage vs. load resistance chart below, you can see the state of the battery voltage at 50% of the battery under different load and temperature conditions. When the load is at 0.1MΩ, the battery voltage is 3.09V when the ambient temperature is 80°C, the battery voltage is 2.98V when the ambient temperature is 60°C, and the battery voltage is 2.88V when the ambient temperature is 20°C. When the ambient temperature is -10 °C, the battery voltage is 2.76V, and when the ambient temperature is -20 °C, the battery voltage is 2.62V. When the load is at 1MΩ, the battery voltage is 3.18V when the ambient temperature is 80°C, the battery voltage is 3.1V when the ambient temperature is 60°C, and the battery voltage is 2.95V when the ambient temperature is 20°C. When the ambient temperature is -10 °C, the battery voltage is 2.86V, and when the ambient temperature is -20 °C, the battery voltage is 2.78V. When the load is at 10MΩ, the battery voltage is 3.28V when the ambient temperature is 80°C, the battery voltage is 3.0V when the ambient temperature is 60°C, and the battery voltage is 3.01V when the ambient temperature is 20°C. When the ambient temperature is -10 °C, the battery voltage is 2.9V, and when the ambient temperature is -20 °C, the battery voltage is 2.85V.
