CTECHI is an expert in battery solutions, specializing in ODM, OEM, and SKD for energy storage, motive power, and consumer batteries.

CTECHi ni-cd battery personalized for vacuum cleaners1

Inquiry

Video Display

Product Details

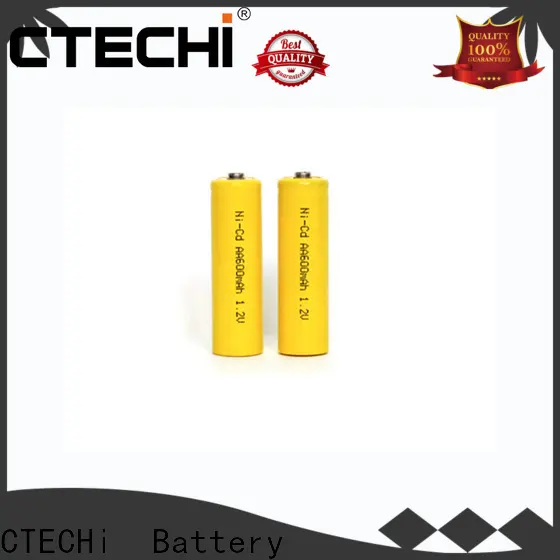

Ni-Cd Battery 1.2V AA 600mAh features including : a Rapid Charge, Reliable service life, Recharges hundreds of times, Saves you hundreds of dollars, Can be replaced in any product that uses AA Batteries. High energy series giving a higher operating time • Good storage retention • Fast charge • Cycling application Technology • Sintered positive electrode • Plastic bonded negative electrode Temperature range in discharge - 20°C to + 65°C Storage Recommended: + 5°C to + 25°C Relative humidity: 65 ± 5 % Standard Series Nickel-Cadmium VRE AA 600 Electrical characteristics Nominal voltage (V) 1.2 Typical capacity (mAh)* 700 IEC minimum capacity (mAh)* 600 IEC designation KRMR 15/51 Impedance at 1000 Hz (m Ω) 16 * Charge 16 h at C/10, discharge at C/5. Dimensions Diameter (mm) 14 ± 0.1 Height (mm) 48 ± 0.3 Top projection (mm) 0.8 ± 0.2 Top flat area diameter (mm) 4 ± 0.2 Weight (g) 19 Dimensions are given for bare cells. Charge conditions Rate Time (h) Temp. (°C) Charge current (mA) Fast* ~1 + 10 to + 45 up to 600 Standard 16 0 to + 50 60 Trickle** 15 to 30 * End of charge cut-off is requested: -dV or dT°C/dt. ** Trickle charge follows fast charge. Maximum discharge current Continuous (A) at + 20°C 1.8 Peak (A) at + 20°C* 41 * Peak duration: 0.3 second - final discharge voltage 0.65 volt/cell. To meet customers’ requirements, our provides custom-designed and standardized battery packs. For your battery design and system needs, please contact us.

CTECHI 12V 600mAh AA Battery Discharge at low rate data
CTECHI AA NiCd 12V 600mAh Battery Charge Retention
CTECHI Battery Ni-Cd 12V AA 600mAh Discharge at high rate data
CTECHI Ni-Cd Battery 12V AA 600mAh Charge Data
CTECHI NiCd 12V AA 600mAh Size

Application Scope

Ni-Cd Battery 1.2V AA 600mAh can be used in Emergency power kit, LED lighting, Cordless phone, toys, camcorders, emergency light, power tools, UPS, Solar, Wind, Mobile generator, Back up power, Solar power bank, Solar LED lighting, Solar street light, Scooter, E-bike, Golf cart, E-motor, E-tour car, tricycle, Electric drill, electric saw, lawn mower, Remote control cars, boat, aircraft, toys, Wireless, Medical devices, equipment and portable equipment, Wearable device, Power supply.

CTECHI 12V NiCd Battery can be used in Wearable device
CTECHI NiCd AA 12V 600mAh can be used in Cordless phone
CTECHI NiCd Battery 12V AA 600mAh can be used in toys

ni-cd battery description

ni-cd battery is equipped with high-quality terminals. It has good electrical conductivity and low self-discharge rate. In the case of the same capacity, it can support the equipment for a longer time.

CTECHi ni-cd battery personalized for vacuum cleaners

ni-cd battery SPECIFICATIONS

Origin	CHINA GUANGDONG
Package	Corrugated Knife Cards
Certificate	CE/RoHS/UN38.3/MSDS
Warranty	1 Years
Color	Customized Available
MOQ	500pieces
Payment	Paypal/TT/Western Union/LC/DA/DP
Brand	CTECHI
Weight	19g
Item	1.2V 600mAh AA Ni-Cd
Voltage Nominal	1.2V
Capacity Nominal	600mAh
Energy	0.72Wh
Dimension	14.1*48.8
Charge	yes
Operating Temperature	-20+65℃
Availability	OEM, ODM, OEM/ODM

Its design is based on a professional R&D team with rich experience. Its sale is supported by 24h/7day online service. The product is available in a variety of sizes and shapes.
