CTECHI is an expert in battery solutions, specializing in ODM, OEM, and SKD for energy storage, motive power, and consumer batteries.

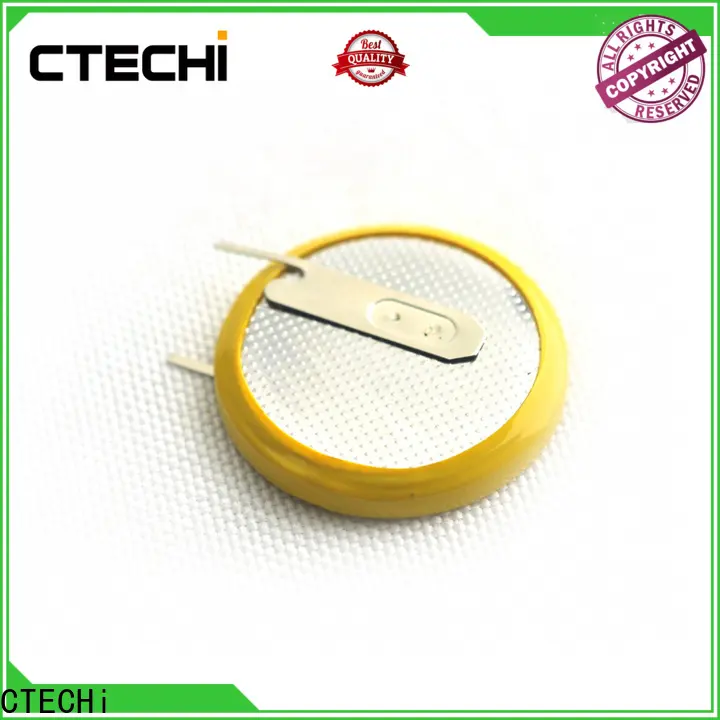

CTECHi miniature motherboard battery personalized for computer 1

CTECHi miniature motherboard battery personalized for computer 2

CTECHi miniature motherboard battery personalized for computer

Origin:

CHINA GUANGDONG

Package:

Industrial Package

Certificate:

CE,RoHS,UN38.3,MSDS

Warranty:

1 Years

Color:

Yellow,Sliver

MOQ:

10prices

Payment:

L/C, D/A, D/P, T/T, Western Union, MoneyGram, OA

Inquiry

Brand

CTECHi

Weight

4.0g

Item

CR2330 3.0V 280mAh LiMnO2 button Battery

Voltage Nominal

Capacity Nominal

280mAh

Energy

0.84Wh

Dimension

23*3.0mm

Charge

Operating Temperature

-20+60℃

Certification

CE, CCC, CQC, CB, UL

Availability

OEM, ODM, OEM/ODM

Product Details

The CR series battery is a high voltage, high capacity non-rechargeable lithium ion button battery. The CR series battery has twice the voltage of a conventional button battery. The CR2330 is one of the batteries. It has a diameter of 23 mm and a thickness of 3.0 mm. The battery has a capacity of 280 mAh and a weight of 4 g.

CR2330 lithium button battery add to 1HF2 solder piece details
CR2330 lithium button battery discharge curve details
CR2330 lithium button battery positive electrode details
CR2330 lithium button battery customize solder piece details
CR2330 lithium button battery negative electrode solder foot details
CR2330 lithium button battery secondary processing details

Application Scope

The CR2330 is a compact and lightweight lithium-ion battery with long life and high battery voltage. It can be used in Digital camera， electronic component boards and electronic watch，clocks, notebook computers, and electronic scales.

CR2330 lithium button battery can be used in camera
CR2330 lithium button battery can be used in electronic scale
CR2330 lithium button battery can be used in notebook

Solder Processing Solution

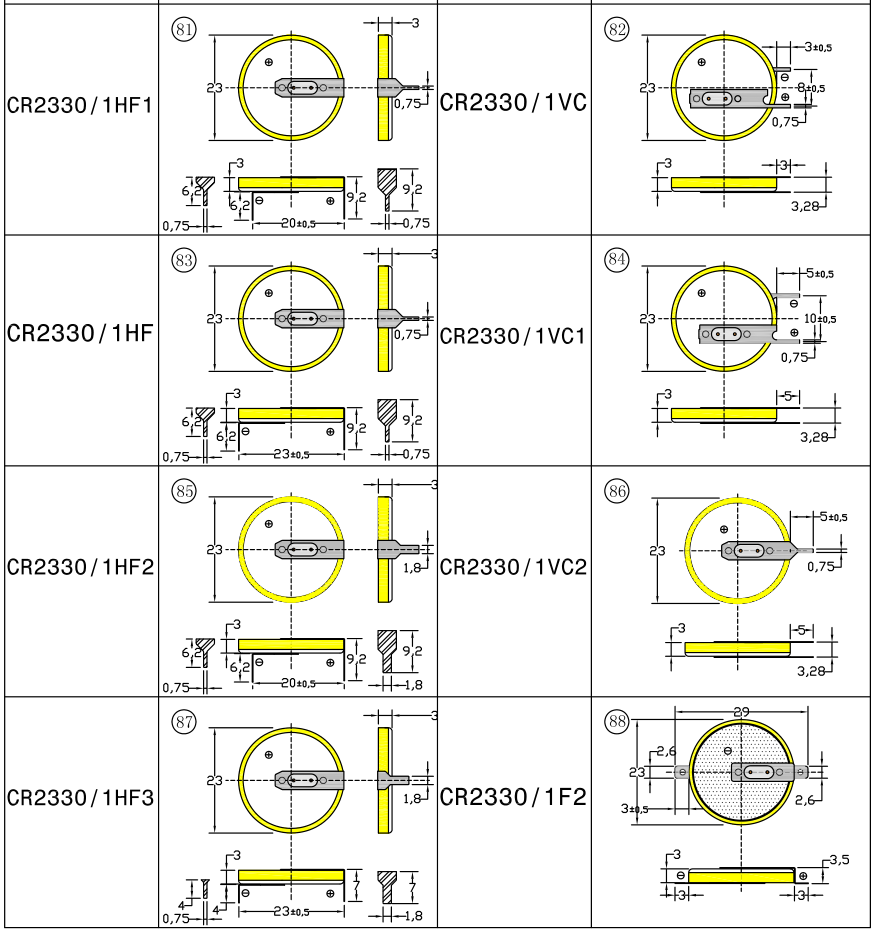

Our company also has the following CR2330 battery soldering solutions CR2330/1HF1， CR2330/1VC, CR2330/1HF, CR2330/1VC1, CR2330/1HF2, CR2330/1VC2,CR2330/1HF3, CR2330/1F2,Each solution has a different application, and customers can choose the corresponding processing method according to the application.

CTECHi miniature motherboard battery personalized for computer 13

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
