CTECHI is an expert in battery solutions, specializing in ODM, OEM, and SKD for energy storage, motive power, and consumer batteries.

CTECHi high capacity primary battery design for cameras 1

CTECHi high capacity primary battery design for cameras 2

CTECHi high capacity primary battery design for cameras 3

CTECHi high capacity primary battery design for cameras 4

CTECHi high capacity primary battery design for cameras 5

CTECHi high capacity primary battery design for cameras 6

CTECHi high capacity primary battery design for cameras 7

CTECHi high capacity primary battery design for cameras

Inquiry

Product Details

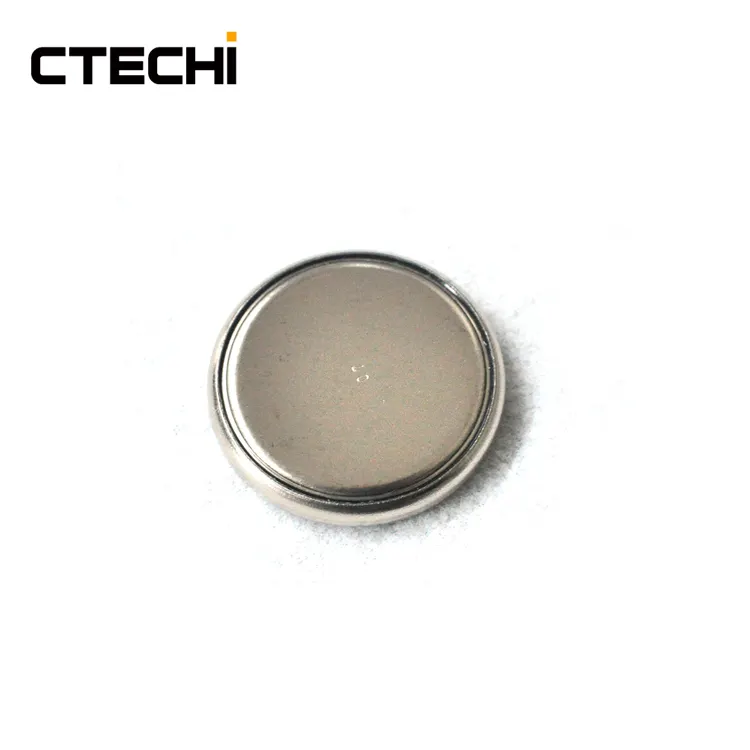

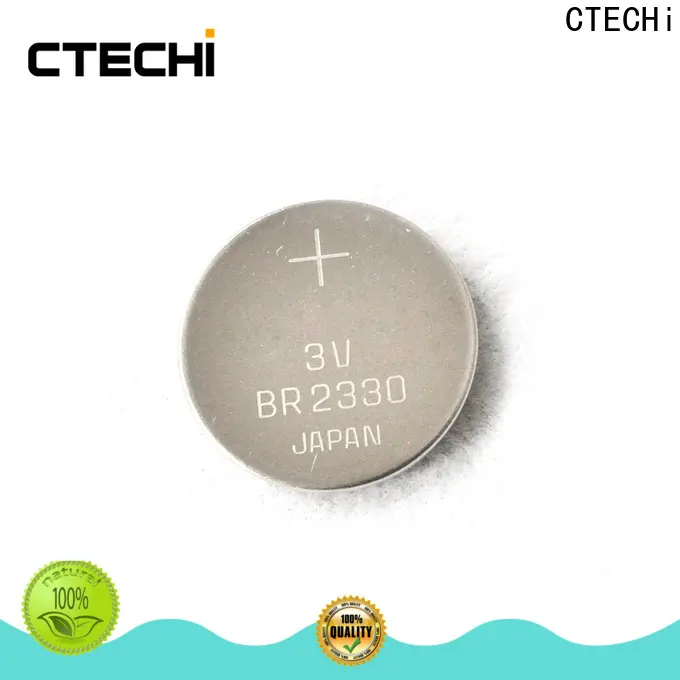

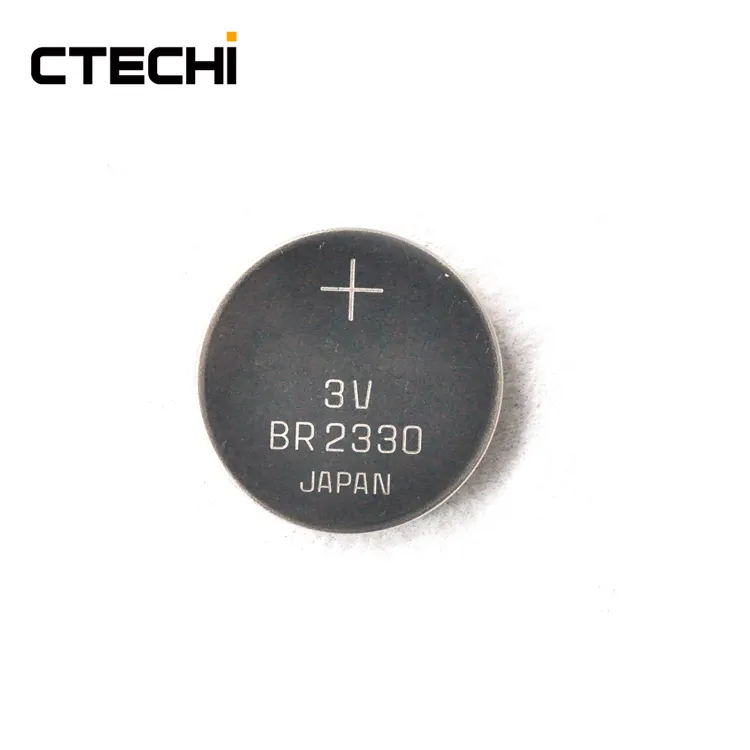

BR2330 is a lithium button battery with a diameter of 23mm and a thickness of 3.0mm. It is one of the BR series lithium batteries. This type of battery has a voltage of 3V, which is twice that of a general dry battery. And the discharge voltage is stable and long lasting, and the service life is very long, and it can be used at a wide temperature.

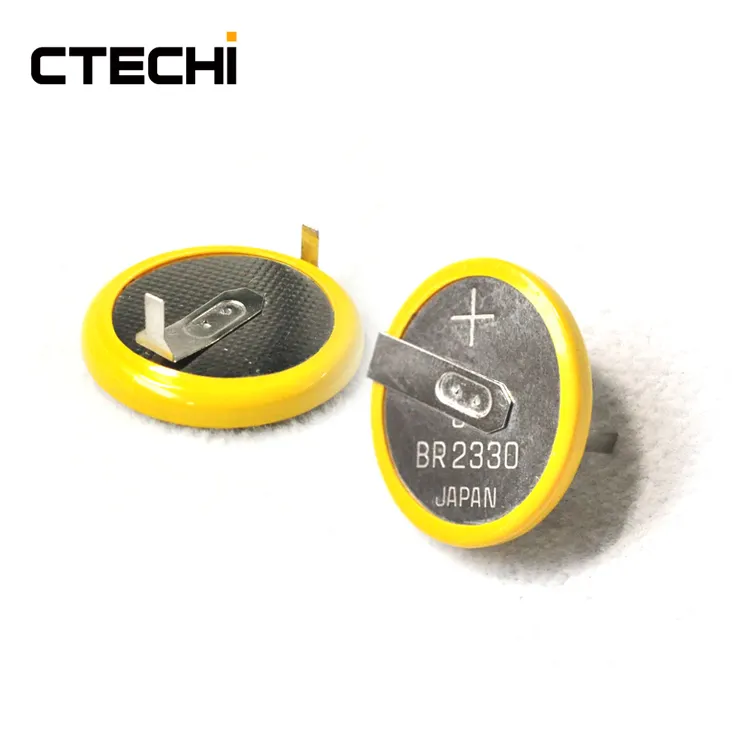

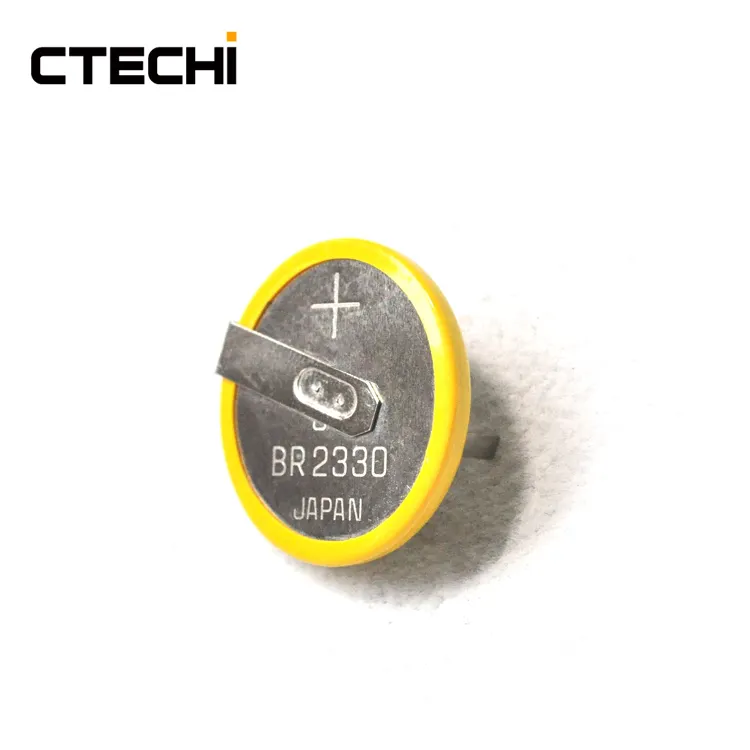

BR2330 lithium button battery add solder piece
BR2330 lithium button battery Original
BR2330 lithium button battery Capacity vs load resistance
BR2330 lithium button battery Dimensions and Specification
BR2330 lithium button battery Operating voltage vs load resistance
BR2330 lithium button battery Temperature Characteristics

Application Scope

The BR2330 lithium button battery has a voltage of 3V, which is twice as high as that of a normal dry battery and can operate in high temperature and low temperature environments. At the same time small size and light weight. Can be used in electronic components, computer motherboards, watches, electronic toys, and medical instruments.

BR2330 lithium button battery can be used in Camera
BR2330 lithium button battery can be used in electric toys
BR2330-lithium-button-battery-can-be-used-in-motherboards

primary battery description

primary battery is equipped with high-quality battery pack. With large battery capacity, it can be used for a long time. Moreover, the superior terminals makes it excellent in conductivity and effective in power consumption reduction.

CTECHi high capacity primary battery design for cameras

primary battery SPECIFICATIONS

Origin	CHINA GUANGDONG
Package	Industrial Package
Certificate	CE/RoHS/UN38.3/MSDS
Warranty	1 Years
Color	Yellow
MOQ	10prices
Payment	Paypal/T.T/Western Union/DA/DP
Brand	Panasonic
Weight	3.2g
Item	BR2330 lithium battery
Voltage Nominal	3V
Capacity Nominal	255mAh
Energy	0.75Wh
Dimension	23*3.0mm
Charge	NO
Operating Temperature	-30+80℃

It is always showcased at exhibitions such as Hong Kong Electronics Fair. It is of strong capacity and is easy to use. The product is updated frequently to ensure that it leads the market trend.

Suggested Videos

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
