CTECHI is an expert in battery solutions, specializing in ODM, OEM, and SKD for energy storage, motive power, and consumer batteries.

CTECHi electric button coin cell battery customized for computer 1

CTECHi electric button coin cell battery customized for computer 2

CTECHi electric button coin cell battery customized for computer

Origin:

CHINA GUANGDONG

Package:

Industrial Package

Certificate:

CE/RoHS/UN38.3/MSDS

Warranty:

1 Years

Color:

Sliver/Green

Model:

CR-2016

MOQ:

10 prices

Payment:

L/C, D/A, D/P, T/T, Western Union, MoneyGram, OA

Brand:

CTECHi

Inquiry

Brand

CTECHi

Weight

1.75g

Item

CR2016 3.0V 90mAh LiMnO2 button Battery

Voltage Nominal

3.0V

Capacity Nominal

90mAh

Energy

0.27Wh

Dimension

20*1.6mm

Charge

Operating Temperature

-20+60℃

Certification

CE, CCC, UL

Availability

OEM, ODM, OEM/ODM

Product Details

The CR2016 battery is a lithium-ion button battery，its diameter is 20mm，thickness is 1.6mm，It is the same as the voltage of other batteries of the same type, it is 3V. But due to the difference in size, its capacity is only 90mAh.

Different solder tabs can be installed depending on the application
There are many options for the shape of the soldering piece of the battery
This is the soldering foot of the button battery
This is the solder piece picture of the CR2016 battery
This is the size picture of the CR2016 button battery
This is the discharge curve of the CR2016 button battery.

Application Scope

The CR2016 battery is a common non-rechargeable lithium ion button battery that is commonly used in small electronic products and small digital products.

CR2016 Button battery can be used for electronic watch
CR2016 Button battery can be used for electronic toys
CR2016 Button battery can be used for camera

Solder Processing Solution

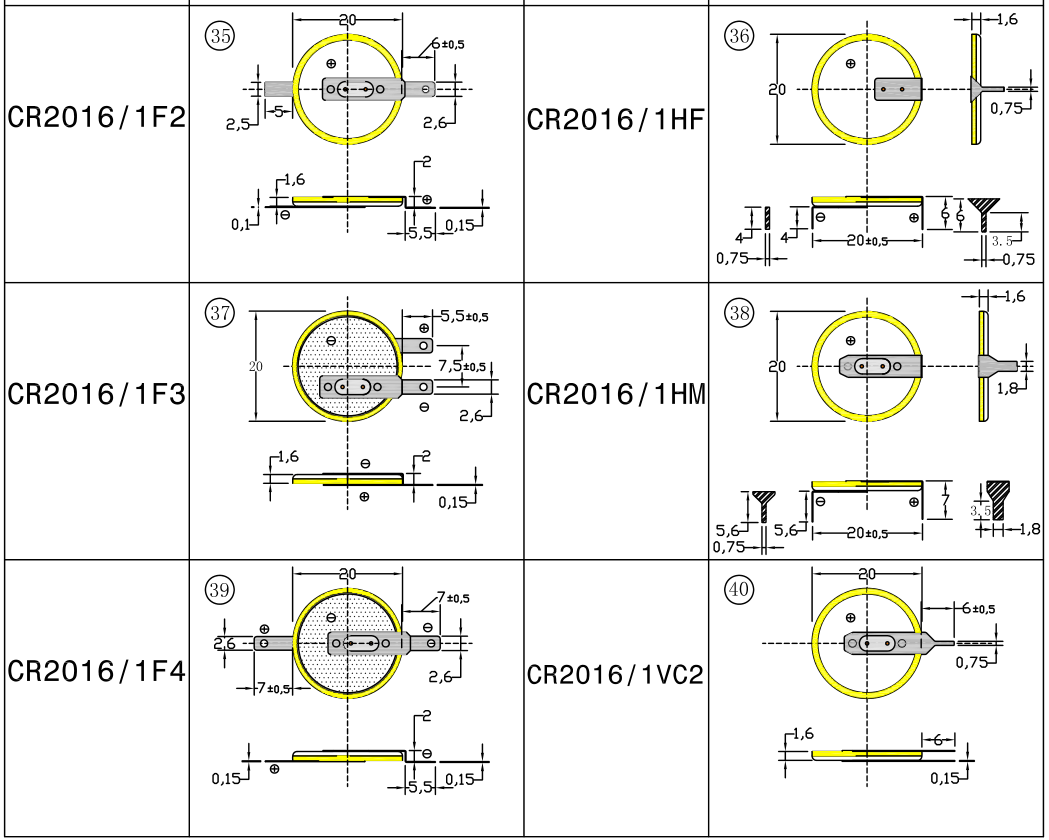

Our company also has the following CR2016 battery soldering solutions CR2016/1F2, CR2016/1HF, CR2016/1F3, CR2016/1HM, CR2016/1F4, CR2016/1VC2, Each solution has a different application, and customers can choose the corresponding processing method according to the application.

Enterprise Strength

With a comprehensive management service system, CTECHi Group is capable of providing customers with one-stop and professional services.

Company Advantages
1. The whole production of CTECHi button coin cell battery is handled by our professional production team using the advanced technology and equipment.
2. This product has an optimum quality and comprehensive performance.
3. CTECHi Technology Co. Ltd only supplies high quality motherboard battery with the most competitive price.

CTECHi electric button coin cell battery customized for computer 13

Company Features
1. CTECHi Technology Co. Ltd is a professional motherboard battery supplier and has gained wide popularity among customers.
2. All manufacturing primary cell battery processes are done in our own factory to control quality.
3. We are striving hard to increase eco-efficiency. We have made strict waste control and energy-saving plan for the production. We have gained progress in reducing the amount of emission of unit product. The company demonstrates its business ethics in several ways. This ethics standard encourages it to do the right thing for society. For example, we lower the carbon footprint during production, take part in fair business trade, treat employees fairly and ethnically, etc. Inquiry! CTECHi Technology Co. Ltd aims to satisfy customers with high quality products and excellent service. Inquiry! Our mission is to deliver effective and innovative business solutions in a data-centric world. We drive long term success for our clients and partners by listening and challenging conventional thinking. Inquiry!

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
