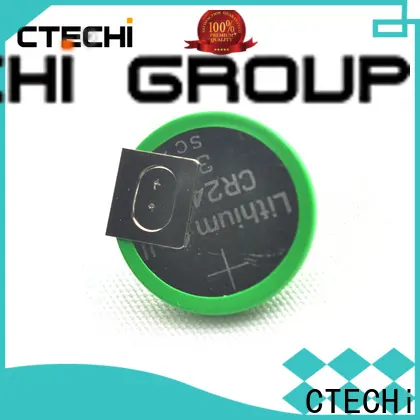

CTECHi digital button cell series for instrument
Origin:
CHINA GUANGDONG
Package:
Industrial Package
Certificate:
CE,RoHS,UN38.3,MSDS
Warranty:
1 Years
Color:
Sliver,Green
MOQ:
10prices
Payment:
L/C, D/A, D/P, T/T, Western Union, MoneyGram, OA
Brand
CTECHi
Weight
3.2g
Item
CR2430 3.0V 300mAh LiMnO2 button Battery
Voltage Nominal
3V
Capacity Nominal
300mAh
Energy
0.9Wh
Dimension
24*3.0mm
Charge
No
Operating Temperature
-20+60℃
Certification
CE, CCC, CQC, CB, UL
Availability
OEM, ODM, OEM/ODM
Product Details
The CR2430 is a non-rechargeable lithium-ion button battery. It is one of the primary battery series. It has a diameter of 24mm and a thickness of 3.0mm. The CR series battery has a voltage of 3V, while the CR2430 battery has a capacity of 300mAh. This battery weighs 3.2g And this type of battery can add solder piece and solder feet.
-
CR2430 lithium button battery conformation details
-
CR2430 lithium button battery positive electrode details
-
CR2430 lithium button battery discharge at different temperature（15KΩ）details
-
CR2430 lithium button battery negative electrode solder piece details
-
CR2430 lithium button battery Discharge curve details
-
CR2430 lithium button battery customize solder piece
Application Scope
The CR2430 is a compact and lightweight lithium-ion battery with long life and high battery voltage. It can be used in electronic component boards and electronic watch，clocks, notebook computers, and electronic scales.
-
CR2430 lithium button battery can be used in digital camera
-
CR2430 lithium button battery can be used in Electronic scale
-
CR2430 lithium button battery can be used in clock
Solder Processing Solution

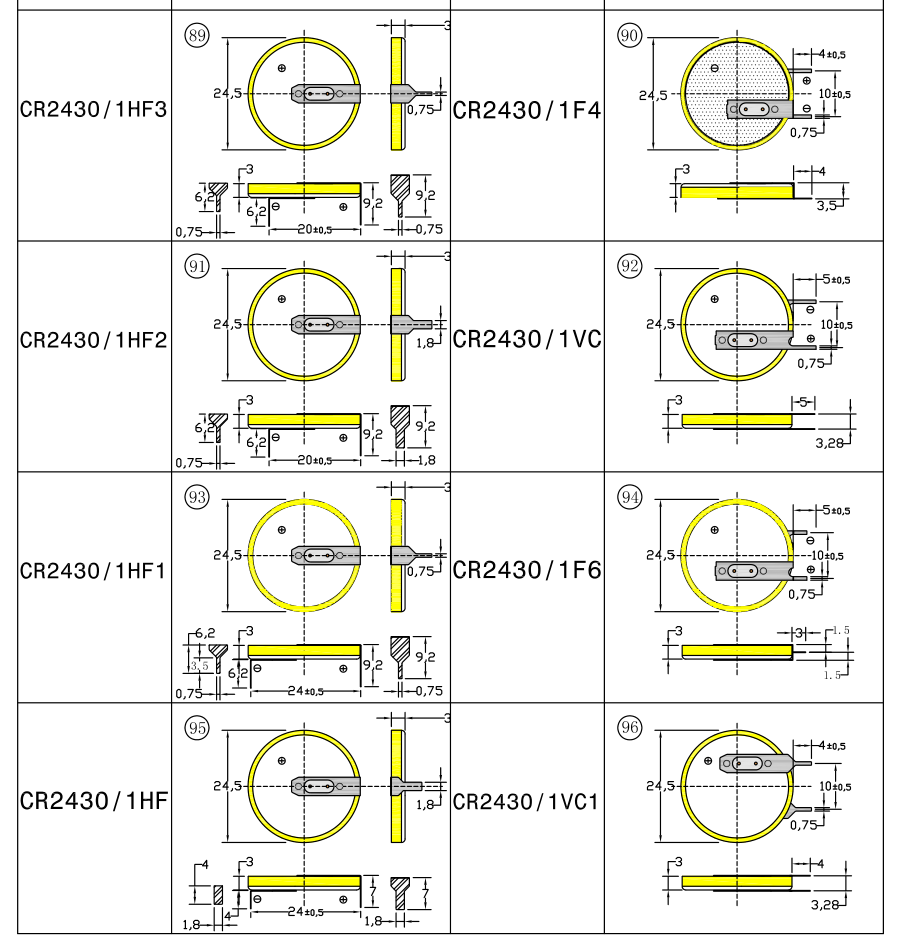

Our company also has the following CR2430 battery soldering solutions CR2430/1HF3， CR2430/1F4, CR2430/1HF2, CR2430/1VC, CR2430/1HF1, CR2430/1F6,CR2430/1HF, CR2430/1VC1, Each solution has a different application, and customers can choose the corresponding processing method according to the application.
1. The appearance of CTECHi coin button battery is designed by an experienced design team. The lifespan is long enough which is strong competitiveness in the market
2. CTECHi has taken the lead in manufacturing button cell among the industry. It is marketed worldwide under our own brand "CTECHi
3. The product is characterized by its hygiene. It is made of anti-bacterial materials that are effective in eliminating germs and bacteria-caused odor. It is CE/ISO/ROHS/UN38.3/MSDS/UL certified
Company Features
1. Known to be a large manufacturer for button cell , CTECHi Technology Co. Ltd has a wide market share. By continuously strengthening hardware construction, CTECHi has the capability to provide lithium coin with coin button battery .
2. Advanced production equipment and perfect quality management system can be seen in CTECHi Technology Co. Ltd.
3. CTECHi Technology Co. Ltd is equipped with a key labs for theoretical research and technical innovation. Long-term green development is what CTECHi Technology Co. Ltd pursue. Get price!
