CTECHI is an expert in battery solutions, specializing in ODM, OEM, and SKD for energy storage, motive power, and consumer batteries.

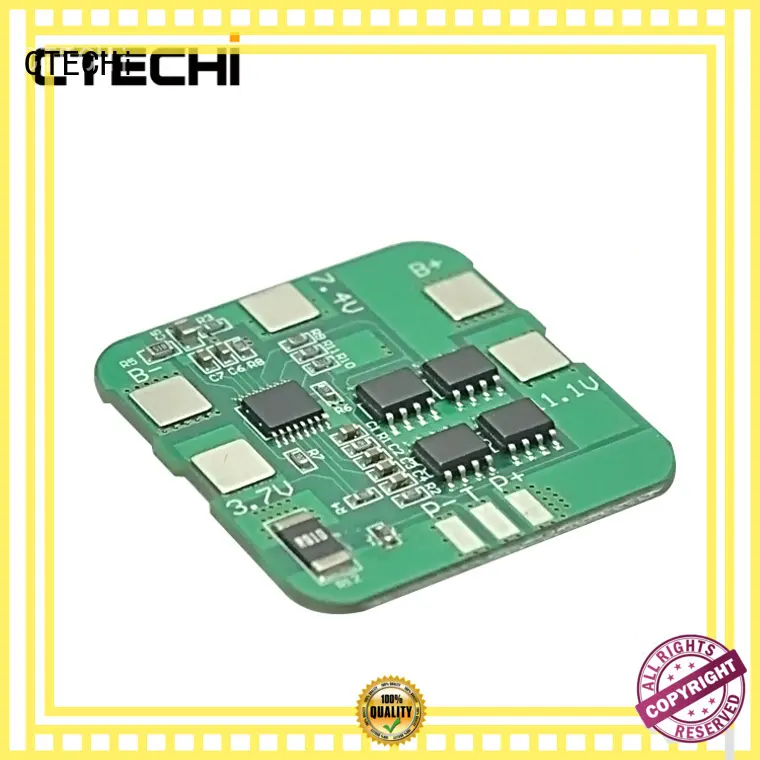

CTECHi anti-overcharging bms battery management system supplier for factory 1
CTECHi anti-overcharging bms battery management system supplier for factory 1

CTECHi anti-overcharging bms battery management system supplier for factory

Origin:
CHINA GUANGDONG
Package:
Industrial Package
Certificate:
CE/RoHS/UN38.3/MSDS
Warranty:
1 Years
Color:
green
MOQ:
10prices
Payment:
L/C, D/A, T/T, Western Union
Brand:
CTECHi
Inquiry
Brand
CTECHi
Item
4S1P battery BMS
Operating Temperature
-20℃ ~ +70℃
Charge Current(Ta=25℃)
6A
Discharge Current(Ta=25℃)
6A
Over Charge Voltage
4.25±0.025V
Over Charge Voltage Detect Delay
1.0±0.5S
Over Discharge Voltage
2.7±0.08V
Over Discharge Voltage Detect Delay
100±50mS
Over Charge Current
20±3A
Over Charge Current Detect Delay
10±5mS
Over Discharge Current
20±3A
Over Discharge Current Detect Delay
10±5mS
Turn-on Resistance
≤70m ohm
Consumption Current in Operating mode
≤30uA
Certification
CE, CCC, CQC, UL
Availability
OEM, ODM, OEM/ODM
Product Details
The protection board is an indispensable accessory of the battery pack product, which can prevent the lithium battery from overcharging, over-discharging, over-current, short-circuit and ultra-high temperature charging and discharging, and is a guarantee for the safe use of the lithium battery.
  • CTECHi anti-overcharging bms battery management system supplier for factory 2
    4S1P Battery protection management system positive details
  • CTECHi anti-overcharging bms battery management system supplier for factory 3
    4S1P Battery protection management system negative details
Application Scope
The 4S1P battery protection management system is typically used in series with four lithium-ion batteries to protect the battery from over-charging, over-discharging, over-current, short-circuit and ultra-high temperature charging and discharging.
  • CTECHi anti-overcharging bms battery management system supplier for factory 4
    Battery protection management system can be used in 4S4P
Product Details
CTECHi Group adheres to the principle of 'details determine success or failure' and pays great attention to the details of Battery.CTECHi Group insists on the use of high-quality materials and advanced technology to manufacture Battery. Besides, we strictly monitor and control the quality and cost in each production process. All this guarantees the product to have high quality and favorable price.
  • CTECHi anti-overcharging bms battery management system supplier for factory 5
Application Scope
CTECHi Group's Dry Battery can be used in different industries to meet the needs of customers.While providing quality products, CTECHi Group is dedicated to providing personalized solutions for customers according to their needs and actual situations.
  • CTECHi anti-overcharging bms battery management system supplier for factory 6
Company Advantages
1. The design of CTECHi bms battery management system is market-based. It is carefully designed based on dimensions, weight, and characteristics of the product to be packed.
2. The quality testing procedure of this product is extremely rigorous.
3. This product has gained much popularity since it was launched.

Company Features
1. As a well-known manufacturer of batterie management system, CTECHi Technology Co. Ltd has a large market share.
2. Our factory is equipped with the most advanced technology and facilities for production, packaging and quality control. This enables us to provides the best products for our customers.
3. Thoroughly implementing innovation-driven development strategy will absolutely boost the popularity of protection circuit battery . Ask online! CTECHi Technology Co. Ltd will passionately pursue high performance targets. Ask online! With a view to offer our customers best service, CTECHi Technology Co. Ltd has set up its own service system. Ask online!
Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
