CTECHI LiFePO4 12V 7Ah 10Ah 20Ah 50Ah 60Ah 80Ah 100Ah 200Ah Battery Pack Deep Cycle Solar Energy RV Yacht Boat Marine Robot Off Grid Solar system UPS AGV Forklift Lithium Battery50
Company Advantages
1. The quality control of CTECHi is strictly conducted by our QC team to comply with the regulations of the storage battery industry, including metallic elements procurement. The sale is expanded based on our strong partnerships with Panasonic, Sanyo, LG, Samsung, etc
2. People have no worry that it generates radiation that is harmful to health. Using this product will not have an adverse influence. Its research and development is carried out by 3 companies combined to be CTECHi Group
3. is equipped with high-quality terminals. It has good electrical conductivity and low self-discharge rate. In the case of the same capacity, it can support the equipment for a longer time.
4. is manufactured based on excellent materials and advanced technology. It has superior corrosion resistance and excellent electrical conductivity, which not only enhances cycle durability, but also greatly reduces power consumption.
5. is manufactured based on superior materials. It has good corrosion resistance, heat resistance, explosion-proof and sealing performance. By virtue of built-in battery pack, it has large capacity, high power, and excellent charge and discharge performance.

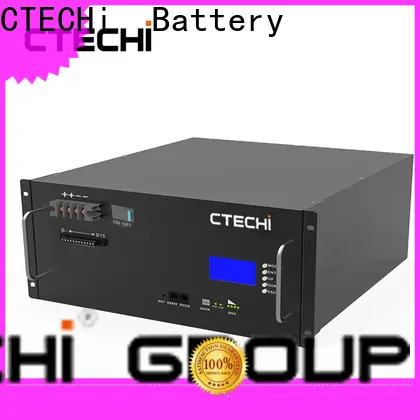

CTECHI 4U 48V 150Ah Solar Energy Storage Telecom Base Station 48V Lifepo4 Battery Pack
Products Information:
| Model | CT-48V50Ah-LED | CT-48V50Ah | CT-48V100Ah-LED | CT-48V100Ah | CT-48V150Ah-LED | CT-48V150Ah |
| Nominal Voltage | 51.2V | 51.2V | 51.2V | 51.2V | 51.2V | 51.2V |
| Nominal Capacity | 50Ah | 50Ah | 100Ah | 100Ah | 150Ah | 150Ah |
| Battery Pack Energy | 2560Wh | 2560Wh | 5210Wh | 5210Wh | 7680Wh | 7680Wh |
| Battery Series | 16S | 16S | 16S | 16S | 16S | 16S |
| Size | 3U Depth 440mm （482*440*133.5mm） | 3U Depth 440mm （482*440*133.5mm） | 4U Depth 440mm （482*440*178mm） | 4U Depth 440mm （482*440*178mm） | 4U Depth 560mm （482*560*178mm） | 4U Depth 560mm （482*560*178mm） |
| Working Voltage | 40-57.6V | 40-57.6V | 40-57.6V | 40-57.6V | 40-57.6V | 40-57.6V |
| Charging Voltage | 57.6V | 57.6V | 57.6V | 57.6V | 57.6V | 57.6V |
| Max. Charging Current | 50A | 50A | 100A | 100A | 100A | 100A |
| Max. Discharge Current | 50A | 50A | 100A | 100A | 100A | 100A |
| Communication | 485 | 485 | 485 | 485 | 485 | 485 |
| Charging Temperature | 0-45℃ | 0-45℃ | 0-45℃ | 0-45℃ | 0-45℃ | 0-45℃ |
| Discharge Temperature | -20-45℃ | -20-45℃ | -20-45℃ | -20-45℃ | -20-45℃ | -20-45℃ |
| Storage Temperature | -20-60℃ | -20-60℃ | -20-60℃ | -20-60℃ | -20-60℃ | -20-60℃ |
| Humidity | 5%-85% | 5%-85% | 5%-85% | 5%-85% | 5%-85% | 5%-85% |
| Design Life | 15years (25℃/77℉) | 15years (25℃/77℉) | 15years (25℃/77℉) | 15years (25℃/77℉) | 15years (25℃/77℉) | 15years (25℃/77℉) |
| Cycle Life | ＞6000 times (25℃/90%DOD) | ＞6000 times (25℃/90%DOD) | ＞6000 times (25℃/90%DOD) | ＞6000 times (25℃/90%DOD) | ＞6000 times (25℃/90%DOD) | ＞6000 times (25℃/90%DOD) |
| Altitude | ＜2000m | ＜2000m | ＜2000m | ＜2000m | ＜2000m | ＜2000m |
| Weight | 22kg | 22kg | 43kg | 43kg | 64kg | 64kg |
| Output Terminal | M6 threaded hole | M6 threaded hole | M6 threaded hole | M6 threaded hole | M6 threaded hole | M6 threaded hole |
| LED | 128*64mm | NO | 128*64mm | NO | 128*64mm | NO |
| Switch | 50A Air Switch | NO | 100A Air Switch | NO | 100A Air Switch | NO |
| Certification | CE,
IEC62133, UN38.3, MSDS | CE,
IEC62133, UN38.3, MSDS | CE,
IEC62133, UN38.3, MSDS | CE,
IEC62133, UN38.3, MSDS | CE,
IEC62133, UN38.3, MSDS | CE,
IEC62133, UN38.3, MSDS |
Base stations have been massively deployed nowadays to afford the explosive demand to infrastructure-based mobile networking services, including both cellular networks and commercial WiFi access points. To maintain high service availability, backup battery groups are usually installed on base stations and serve as the only power source during power outages, which can be prevalent in
rural areas or during severe weather conditions such as hurricanes or snow storms.
Communication base station equipment has been used to replace the previous lead-acid batteries, LiFePO4 batteries and scenery
complementary power generation equipment combined, suitable for the lack of power supply network in the communications base station, to achieve the independent work of the system.
Features:
1. High Quality Square LiFePO4 Battery
Compared with lead-acid batteries, it has higher energy density and cycle life, superior electrical performance, safety and environmental protection without pollution.
2. Long cycle life
Using high-quality LiFePO4 batteries, charge and discharge at 1C at normal temperature, the capacity of the monomer after 6000 cycles is still greater than 80%.
3. Intelligent BMS Battery Management System
Provides functions for the battery: overcharge / overdischarge protection, overcurrent / overload protection, high temperature protection, cell balancing, abnormal alarm and other functions.
4. Excellent electrical performance
Low internal resistance of the battery, excellent performance of continuous high current charge and discharge; wide working temperature range, stronger applicability.
5. Good safety performance
In the extreme safety performance test, the battery does not fire, does not explode, and has no leakage, making it safer to use.
Application:
1. Instead of the lead acid battery to supply power to base station equipment.
2. Outdoor station / Distributed base station / Indoor macro station / Micro cellular base station / Small capacity station / Terminal power station / New energy station
Company Features
1. CTECHi has dominated the leading place in market. CTECHi Technology Co. Ltd owns a professional team of technicians to keep improving our .
2. At present, most of the series produced by us are original products in China.
3. The quality of our still keeps unsurpassed in China. CTECHi Technology Co. Ltd has been adhering to the corporate tenet of 'Quality First, Credit First', we endeavor to improve and solutions. Inquire!
