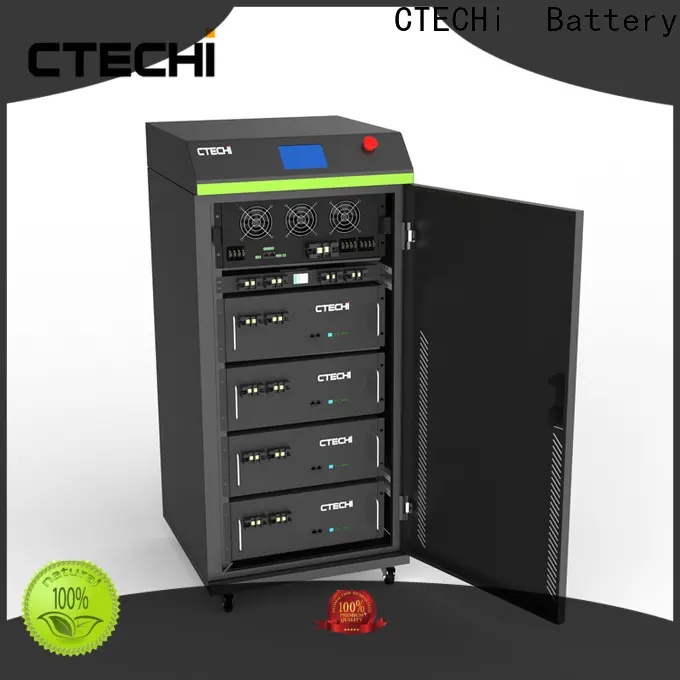

CTECHI Solar Energy Storage 5Kwh ESS LiFePO4 Battery Pack Home Off Grid for Home with Battery Backup
| Hybrid Solar Energy Storage System | ||||
| SOLAR INPUT SPECIFICATIONS | BATTERY SPECIFICATIONS | |||
| Vmax. PV | 450 V | Nominal Voltage | 48V | |
| Isc PV | 15.6A * 2 | Voltage Range | 43.2 ~ 57.6V | |
| Max Power | 3KW * 2 | Operation Temperature | 0 ~ 50 º C | |
| GRID SPECIFICATIONS | LOAD SPECIFICATIONS | |||
| Max AC Power | 4.6KVA | Max AC Power | 4.6KVA | |
| Max AC Input current | 26A | Max AC output current | 22.2A | |
| Rated Grid Voltage | 230Vac | Rated Grid Voltage | 230Vac | |
| Rated Grid Freq. | 50Hz/60Hz | Rated Grid Freq. | 50Hz/60Hz | |
| Power Factor Range | -0.95~+0.95 | Power Factor Range | -0.95~+0.95 | |
| OTHER SPECIFICATIONS | COMPLIANCE SPECIFICATIONS | |||
| Battery Isolation | Isolated | Certifications | TUV. CE | |
| Protective Class | Protective Class | Shipping Classification | UN38.3 | |
| Protection Level | IP20 | MECHANICAL SPECIFICATIONS | ||
| Display | LCD | Dimensions (HxWxD) | 1000 x 650 x 600 mm | |
| Communication | RS485 + CAN + Wi-Fi | Weight | 100 kg | |
| Remote Monitor | Cloud | |||
Product Performance:
* Efficient
1. Battery and grid priority.
2. 10ms seamless switching.
3. Built-in lithium battery, and the capacity of 2, 4-14, 4kwh is optional.
* Smart
1. On-grid and Off-grid automatically detect, maximize peak-shaving and valley-filling or self-use performance.
2. RS485*3, CAN*2(with lithium battery), WiFi(optional).
3. Charging and discharging time is settable.
4. Grid-tied output power is adjustable(0-100%).
* Reliable
1. Professional BMS, intelligent charging function.
2. Compatible with lead-acid and lithium battery.
3. Charging current: is settable according to different battery types.
* Simple
Product Description:
1. Friendly interface, 4.3 inch LCD Display.
2. Inverter and battery in one case, easy to operate.
* All devices are integrated into standard cabinets, they operate automatically based on internal intelligent programs.
* Modular design, flexible for maintenance, installation and capacity extension.
* Uses long cycle life LiFePO4 battery, providing high performance.
* Provides a continued power supply in the event of a main grid failure.
* Effectively using solar and battery energy to save money over the very highly priced grid electricity power.
* Suited for remote areas where there is no main grid or areas where the grid is unstable.
* PV smoothing function, helps to reduce the impact of instable solar.
PAY ATTENTION:
Battery module quantity for system: 30Kwh.
Battery module information : 48V50Ah, 100Ah, 150Ah. Can be configured up to 30KWh
As per customer required.
Market application of home energy storage system:
* Suitable for ordinary household electricity demand: energy saving, peak shaving.
* Suitable for energy shortage areas and eases the pressure on the power grid.
* Suitable for use in areas where natural disasters occur frequently, as a disaster emergency power supply.
* Suitable for power supply in unstable or off-grid areas.
* Suitable for power supply in non-electric areas such as border posts.
* Suitable for scenarios that require high reliability of the power grid: data center, computer room, communication backup power.
