Product Details

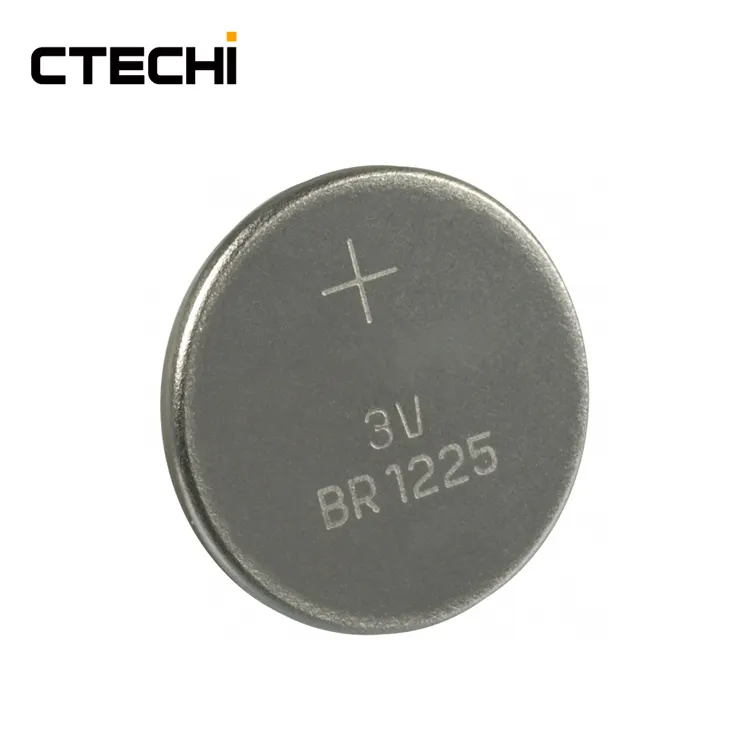

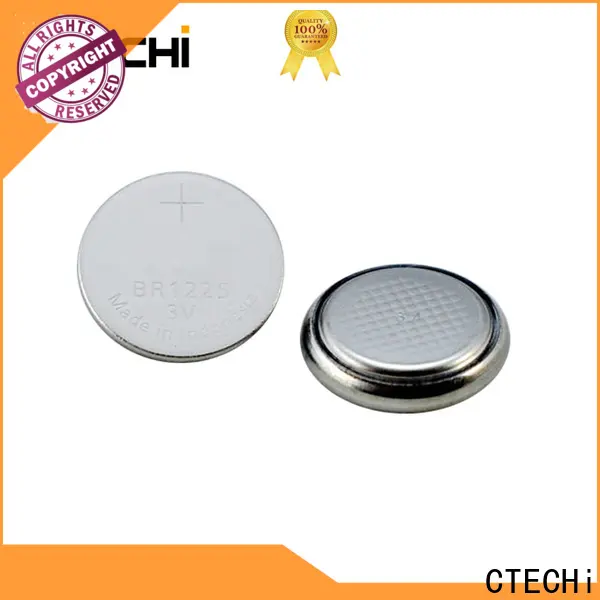

The BR1225 battery is a non-rechargeable lithium button battery in the BR series batteries. The batteries are 12mm in diameter and 2.5mm thick. With a voltage of 3V and stable and long-lasting discharge voltage, it has a very long service life and can be used in harsh environments.

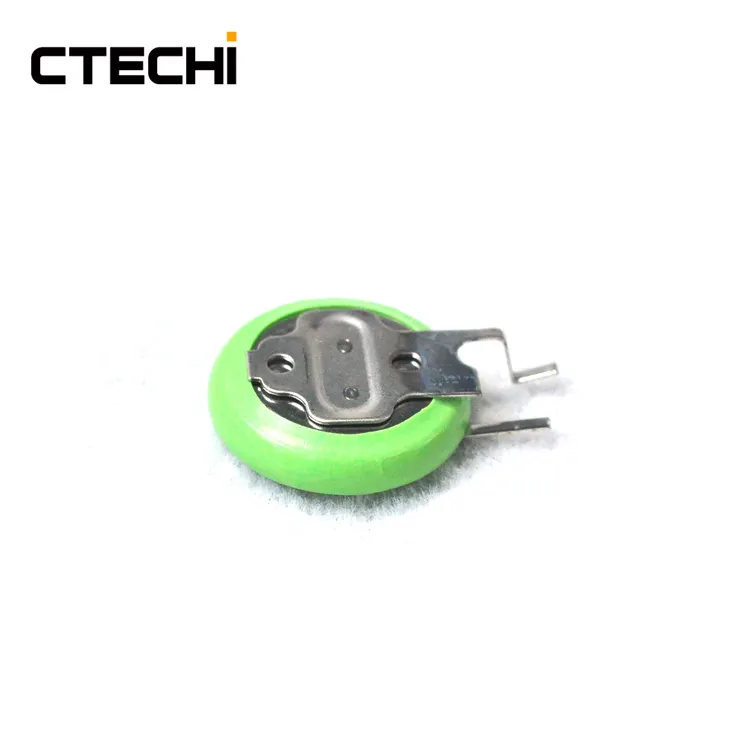

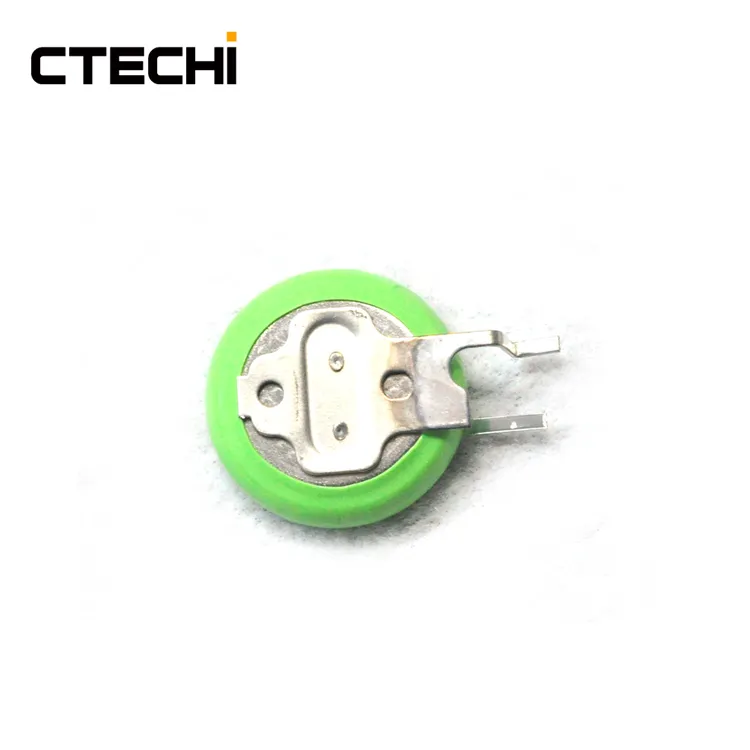

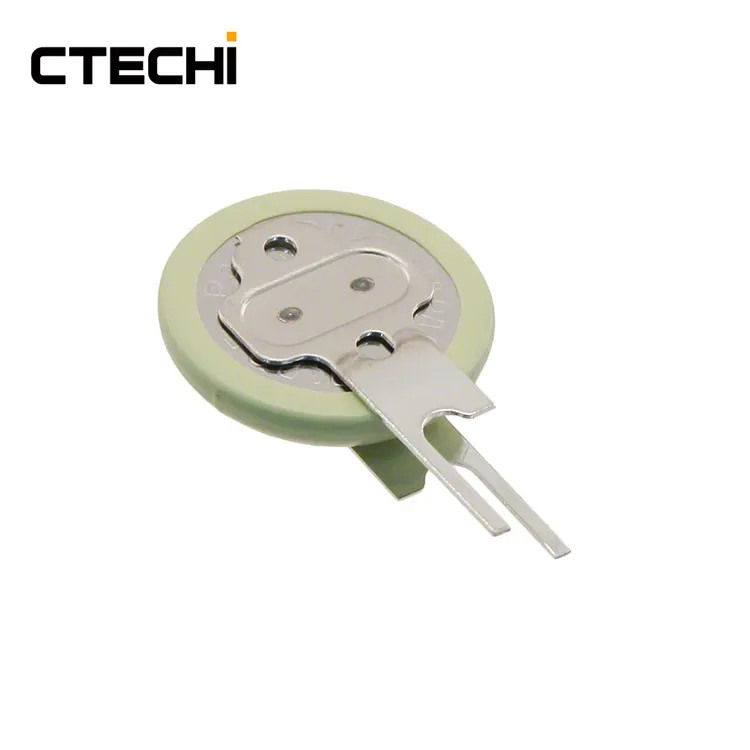

BR1225 lithium button battery add Solder foot
BR1225 lithium button battery Secondary processing
BR1225 lithium button battery Capacity vs load resistance details
BR1225 lithium button battery Dimensions and Specification
BR1225 lithium button battery Operating voltage vs load resistance
BR1225 lithium button battery Temperature Characteristics

Application Scope

The BR series lithium button battery has a very wide operating temperature, low discharge rate of less than 2%, long service life and very high voltage. It can be applied to some small electronic products such as computer motherboards, cameras, calculators, electronic thermometers, and smart home appliances.

BR1225 lithium button battery can be used in Camera
BR1225 lithium button battery can be used in electric toys
BR1225-lithium-button-battery-can-be-used-in-motherboards

br battery description

The product features high efficiency of heat removal. The cell casing of this product is a good conductor and has a maximum surface area to maximize the heat transfer. It is marketed worldwide under our own brand "CTECHi

br battery SPECIFICATIONS

Origin	CHINA GUANGDONG
Package	Industrial Package
Certificate	CE/RoHS/UN38.3/MSDS
Warranty	1 Years
Color	Yellow
MOQ	10prices
Payment	Paypal/T.T/Western Union/DA/DP
Brand	Panasonic
Weight	0.8g
Item	BR1225 lithium button battery
Voltage Nominal	3V
Capacity Nominal	48mAh
Energy	0.144Wh
Dimension	12.5*2.5mm
Charge	NO
Operating Temperature	-30+80℃

Such a dangerous product is delivered by our experienced shipping partners safely. The product is available in a variety of sizes and shapes. The product is designed for wide applications.

Suggested Videos

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
