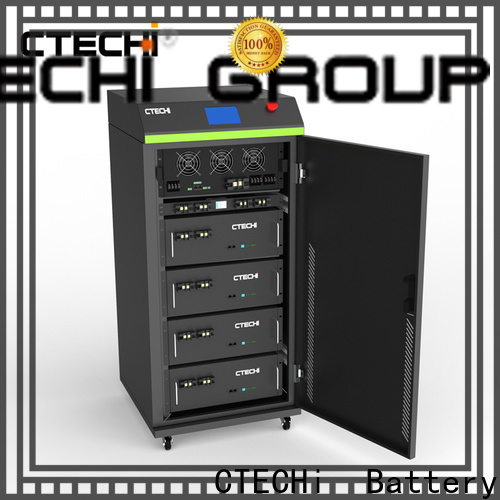

CTECHI LiFePO4 12V 7Ah 10Ah 20Ah 50Ah 60Ah 80Ah 100Ah 200Ah Battery Pack Deep Cycle Solar Energy RV Yacht Boat Marine Robot Off Grid Solar system UPS AGV Forklift Lithium Battery24
1. The electrode materials of CTECHi are strictly handled to be free of contamination, physical damage, and burrs. Because these substances can cause penetration of the separator. It can be supplied in both standardized and customized ways
2. CTECHi Technology Co. Ltd has the determination to provide quality services to its customers. The product is aimed at being friendly to the environment
3. is manufactured based on unique formula and superior materials. It has good corrosion resistance and low self-discharge rate. Moreover, it is a green and high-quality product that does not contain harmful substances.
4. Made from superior materials, has the advantages of large capacity, high power, low self-discharge rate, good temperature resistance, etc. It can not only support the equipment for a long time, but also can be recycled many times.
5. is equipped with high-quality battery pack. With large battery capacity, it can be used for a long time. Moreover, the superior terminals makes it excellent in conductivity and effective in power consumption reduction.

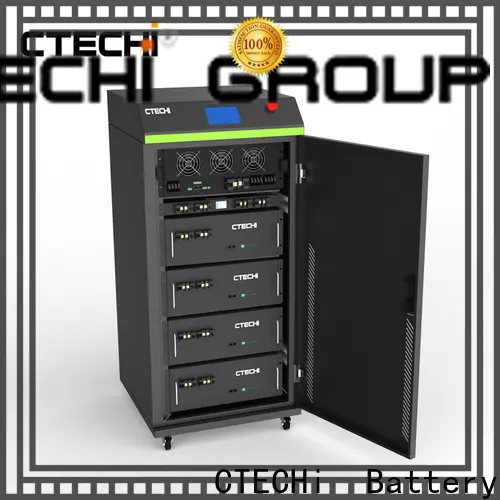

CTECHI Solar Energy Storage 5Kwh ESS LiFePO4 Battery Pack Home Off Grid for Home with Battery Backup
| Hybrid Solar Energy Storage System | ||||
| SOLAR INPUT SPECIFICATIONS | BATTERY SPECIFICATIONS | |||
| Vmax. PV | 450 V | Nominal Voltage | 48V | |
| Isc PV | 15.6A * 2 | Voltage Range | 43.2 ~ 57.6V | |
| Max Power | 3KW * 2 | Operation Temperature | 0 ~ 50 º C | |
| GRID SPECIFICATIONS | LOAD SPECIFICATIONS | |||
| Max AC Power | 4.6KVA | Max AC Power | 4.6KVA | |
| Max AC Input current | 26A | Max AC output current | 22.2A | |
| Rated Grid Voltage | 230Vac | Rated Grid Voltage | 230Vac | |
| Rated Grid Freq. | 50Hz/60Hz | Rated Grid Freq. | 50Hz/60Hz | |
| Power Factor Range | -0.95~+0.95 | Power Factor Range | -0.95~+0.95 | |
| OTHER SPECIFICATIONS | COMPLIANCE SPECIFICATIONS | |||
| Battery Isolation | Isolated | Certifications | TUV. CE | |
| Protective Class | Protective Class | Shipping Classification | UN38.3 | |
| Protection Level | IP20 | MECHANICAL SPECIFICATIONS | ||
| Display | LCD | Dimensions (HxWxD) | 1000 x 650 x 600 mm | |
| Communication | RS485 + CAN + Wi-Fi | Weight | 100 kg | |
| Remote Monitor | Cloud | |||
Product Performance:
* Efficient
1. Battery and grid priority.
2. 10ms seamless switching.
3. Built-in lithium battery, and the capacity of 2, 4-14, 4kwh is optional.
* Smart
1. On-grid and Off-grid automatically detect, maximize peak-shaving and valley-filling or self-use performance.
2. RS485*3, CAN*2(with lithium battery), WiFi(optional).
3. Charging and discharging time is settable.
4. Grid-tied output power is adjustable(0-100%).
* Reliable
1. Professional BMS, intelligent charging function.
2. Compatible with lead-acid and lithium battery.
3. Charging current: is settable according to different battery types.
* Simple
Product Description:
1. Friendly interface, 4.3 inch LCD Display.
2. Inverter and battery in one case, easy to operate.
* All devices are integrated into standard cabinets, they operate automatically based on internal intelligent programs.
* Modular design, flexible for maintenance, installation and capacity extension.
* Uses long cycle life LiFePO4 battery, providing high performance.
* Provides a continued power supply in the event of a main grid failure.
* Effectively using solar and battery energy to save money over the very highly priced grid electricity power.
* Suited for remote areas where there is no main grid or areas where the grid is unstable.
* PV smoothing function, helps to reduce the impact of instable solar.
PAY ATTENTION:
Battery module quantity for system: 30Kwh.
Battery module information : 48V50Ah, 100Ah, 150Ah. Can be configured up to 30KWh
As per customer required.
Market application of home energy storage system:
* Suitable for ordinary household electricity demand: energy saving, peak shaving.
* Suitable for energy shortage areas and eases the pressure on the power grid.
* Suitable for use in areas where natural disasters occur frequently, as a disaster emergency power supply.
* Suitable for power supply in unstable or off-grid areas.
* Suitable for power supply in non-electric areas such as border posts.
* Suitable for scenarios that require high reliability of the power grid: data center, computer room, communication backup power.
