CTECHI is an expert in battery solutions, specializing in ODM, OEM, and SKD for energy storage, motive power, and consumer batteries.

batterie nicd 700mah for emergency lighting CTECHi

Inquiry

Video Display

Product Details

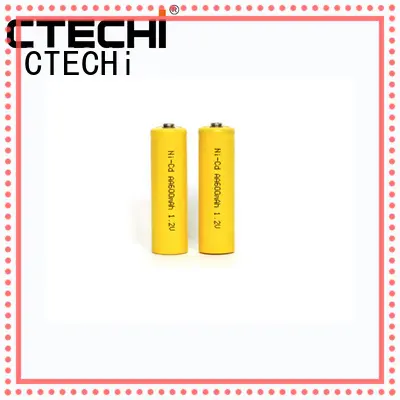

Ni-Cd Battery 1.2V AA 600mAh features including : a Rapid Charge, Reliable service life, Recharges hundreds of times, Saves you hundreds of dollars, Can be replaced in any product that uses AA Batteries. High energy series giving a higher operating time • Good storage retention • Fast charge • Cycling application Technology • Sintered positive electrode • Plastic bonded negative electrode Temperature range in discharge - 20°C to + 65°C Storage Recommended: + 5°C to + 25°C Relative humidity: 65 ± 5 % Standard Series Nickel-Cadmium VRE AA 600 Electrical characteristics Nominal voltage (V) 1.2 Typical capacity (mAh)* 700 IEC minimum capacity (mAh)* 600 IEC designation KRMR 15/51 Impedance at 1000 Hz (m Ω) 16 * Charge 16 h at C/10, discharge at C/5. Dimensions Diameter (mm) 14 ± 0.1 Height (mm) 48 ± 0.3 Top projection (mm) 0.8 ± 0.2 Top flat area diameter (mm) 4 ± 0.2 Weight (g) 19 Dimensions are given for bare cells. Charge conditions Rate Time (h) Temp. (°C) Charge current (mA) Fast* ~1 + 10 to + 45 up to 600 Standard 16 0 to + 50 60 Trickle** 15 to 30 * End of charge cut-off is requested: -dV or dT°C/dt. ** Trickle charge follows fast charge. Maximum discharge current Continuous (A) at + 20°C 1.8 Peak (A) at + 20°C* 41 * Peak duration: 0.3 second - final discharge voltage 0.65 volt/cell. To meet customers’ requirements, our provides custom-designed and standardized battery packs. For your battery design and system needs, please contact us.

CTECHI 12V 600mAh AA Battery Discharge at low rate data
CTECHI AA NiCd 12V 600mAh Battery Charge Retention
CTECHI Battery Ni-Cd 12V AA 600mAh Discharge at high rate data
CTECHI Ni-Cd Battery 12V AA 600mAh Charge Data
CTECHI NiCd 12V AA 600mAh Size

Application Scope

Ni-Cd Battery 1.2V AA 600mAh can be used in Emergency power kit, LED lighting, Cordless phone, toys, camcorders, emergency light, power tools, UPS, Solar, Wind, Mobile generator, Back up power, Solar power bank, Solar LED lighting, Solar street light, Scooter, E-bike, Golf cart, E-motor, E-tour car, tricycle, Electric drill, electric saw, lawn mower, Remote control cars, boat, aircraft, toys, Wireless, Medical devices, equipment and portable equipment, Wearable device, Power supply.

CTECHI 12V NiCd Battery can be used in Wearable device
CTECHI NiCd AA 12V 600mAh can be used in Cordless phone
CTECHI NiCd Battery 12V AA 600mAh can be used in toys

Application Scope

CTECHi Group's Battery is widely used in the Manufacturing Electrical Equipment & Supplies Batteries industry.CTECHi Group always pays attention to customers. According customers' actual needs, we could customize comprehensive and professional solutions for them.

Product Details

CTECHi Group pays great attention to details of Rechargeable Battery.Rechargeable Battery, manufactured based on high-quality materials and advanced technology, has excellent quality and favorable price. It is a trustworthy product which receives recognition and support in the market.

Company Advantages
1. CTECHi batterie nicd is produced in a standardized production environment.
2. The product is highly acclaimed for its high quality and excellent performance and versatility.
3. With a remarkable economic return, the product is considered as the most promising product in the market.
4. This product is widely recognized in the market for its good economic benefits.

Company Features
1. CTECHi Technology Co. Ltd as a ni-cd battery supplier, is professional in the field.
2. CTECHi Technology Co. Ltd has domestic first-rate designers, good - quality technicians and managing personnel.
3. It is the idea of batterie nicd that makes CTECHi Technology Co. Ltd set deep root in nickel-cadmium battery market. Contact! CTECHi Technology Co. Ltd holds the business philosophy of nicd batterie. Contact! CTECHi Technology Co. Ltd well meets our customers' different requirements. Contact! To establish the service concept of batterie nicd is the base of CTECHi Technology Co. Ltd's work. Contact!

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
