CTECHI is an expert in battery solutions, specializing in ODM, OEM, and SKD for energy storage, motive power, and consumer batteries.

anti-overcharging batterie management system series for battery 1
anti-overcharging batterie management system series for battery 1

anti-overcharging batterie management system series for battery

Origin:
CHINA GUANGDONG
Package:
Industrial Package
Certificate:
CE/RoHS/UN38.3/MSDS
Warranty:
1 Years
Color:
green
MOQ:
10prices
Payment:
L/C, D/A, T/T, Western Union
Brand:
CTECHi
Inquiry
Brand
CTECHi
Item
4S1P battery BMS
Operating Temperature
-20℃ ~ +70℃
Charge Current(Ta=25℃)
6A
Discharge Current(Ta=25℃)
6A
Over Charge Voltage
4.25±0.025V
Over Charge Voltage Detect Delay
1.0±0.5S
Over Discharge Voltage
2.7±0.08V
Over Discharge Voltage Detect Delay
100±50mS
Over Charge Current
20±3A
Over Charge Current Detect Delay
10±5mS
Over Discharge Current
20±3A
Over Discharge Current Detect Delay
10±5mS
Turn-on Resistance
≤70m ohm
Consumption Current in Operating mode
≤30uA
Certification
CE, CCC, CQC, UL
Availability
OEM, ODM, OEM/ODM
Product Details
The protection board is an indispensable accessory of the battery pack product, which can prevent the lithium battery from overcharging, over-discharging, over-current, short-circuit and ultra-high temperature charging and discharging, and is a guarantee for the safe use of the lithium battery.

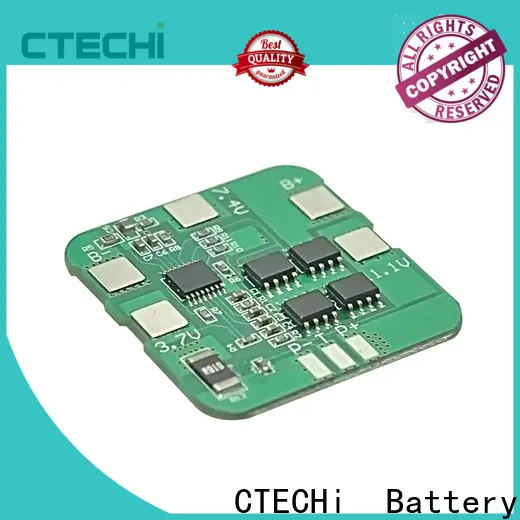

  • anti-overcharging batterie management system series for battery 2
    4S1P Battery protection management system positive details
  • anti-overcharging batterie management system series for battery 3
    4S1P Battery protection management system negative details
Application Scope
The 4S1P battery protection management system is typically used in series with four lithium-ion batteries to protect the battery from over-charging, over-discharging, over-current, short-circuit and ultra-high temperature charging and discharging.
  • anti-overcharging batterie management system series for battery 4
    Battery protection management system can be used in 4S4P


Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
