CTECHI is an expert in battery solutions, specializing in ODM, OEM, and SKD for energy storage, motive power, and consumer batteries.

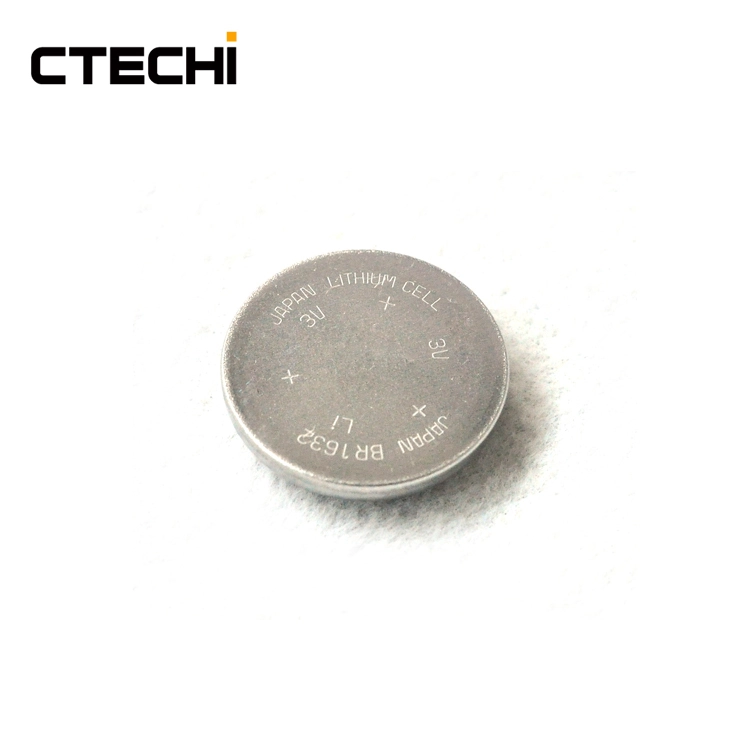

BR1632 3V Lithium Coin Battery 120mAh for Car TPMS Sensor, Remote Control, Key Fob 1
BR1632 3V Lithium Coin Battery 120mAh for Car TPMS Sensor, Remote Control, Key Fob 2
BR1632 3V Lithium Coin Battery 120mAh for Car TPMS Sensor, Remote Control, Key Fob 3
BR1632 3V Lithium Coin Battery 120mAh for Car TPMS Sensor, Remote Control, Key Fob 4
BR1632 3V Lithium Coin Battery 120mAh for Car TPMS Sensor, Remote Control, Key Fob 5
BR1632 3V Lithium Coin Battery 120mAh for Car TPMS Sensor, Remote Control, Key Fob 6
BR1632 3V Lithium Coin Battery 120mAh for Car TPMS Sensor, Remote Control, Key Fob 1
BR1632 3V Lithium Coin Battery 120mAh for Car TPMS Sensor, Remote Control, Key Fob 2
BR1632 3V Lithium Coin Battery 120mAh for Car TPMS Sensor, Remote Control, Key Fob 3
BR1632 3V Lithium Coin Battery 120mAh for Car TPMS Sensor, Remote Control, Key Fob 4
BR1632 3V Lithium Coin Battery 120mAh for Car TPMS Sensor, Remote Control, Key Fob 5
BR1632 3V Lithium Coin Battery 120mAh for Car TPMS Sensor, Remote Control, Key Fob 6

BR1632 3V Lithium Coin Battery 120mAh for Car TPMS Sensor, Remote Control, Key Fob

    oops...!

    no product data.

    Go to homepage
    Brand
    Panasonic
    Weight
    1.5
    Item
    3V 120mAh Primary Battery BR1632
    Voltage Nominal
    3V
    Capacity Nominal
    120mAh
    Energy
    360Wh
    Dimension
    16*3.2mm
    Charge
    NO
    Operating Temperature
    -30~+80℃
    Product Details
    The basic parameters of this battery are as follows: 3V120mAh, size 16*3.2mm, temperature -30~80°C. BR1632 can be customized for additional processing, add solder chip terminals, insulation packaging and configuration type, the model as following: BR1632/V1AN, BR1632FAN, BR1632/GAN, BR1632/HAN, BR1632/VAN. From the temperature characteristics below you can see how the battery operates at the same load and at different temperatures. When used at an ambient temperature of -10 °C, the voltage is 2.5V. When using 250h, we can see that the voltage rises to the peak. This is because the internal chemical reaction of the battery is active, the voltage reaches 2.6V, after 500h. The voltage drops to 2.55V, using 750h, the voltage is restored to 2.5V, and the significant drop is accelerated until the end of about 1200h. When used at an ambient temperature of 20 ° C, the voltage is 2.8V, after 250h, the voltage is maintained at 2.8V, after 500h, the voltage drops slightly to 2.75V, using 750h, the voltage is 2.7V, after 1000h, the voltage drops To 2.65V and continue to decline. When used at an ambient temperature of 60 ° C, the voltage is 2.9V. After 250h, the voltage rises slightly to 2.92V. After 500h, the voltage is kept at 2.92V. After 750h, the voltage continues to be 2.92V. After 1000h, the voltage is used. Slowly decreased by 2.9V and continued to decline.
    • BR1632 3V Lithium Coin Battery 120mAh for Car TPMS Sensor, Remote Control, Key Fob 7
      1-3V 120mAh BR1632 Dimensions
    • BR1632 3V Lithium Coin Battery 120mAh for Car TPMS Sensor, Remote Control, Key Fob 8
      2-3V 120mAh BR1632 Temperature Characteristics
    • BR1632 3V Lithium Coin Battery 120mAh for Car TPMS Sensor, Remote Control, Key Fob 9
      3-3V 120mAh BR1632 Operating voltage vs Load Resistance
    • BR1632 3V Lithium Coin Battery 120mAh for Car TPMS Sensor, Remote Control, Key Fob 10
      4-3V 120mAh BR1632 Capacity vs Load Resistance
    Application Scope
    This Battery stable voltage is 3V, standard continuous capacity is 120mAh, High quality small size of easy take and longer use, the size is 16*3.2mm, shelf life is 10 years. Safe and environmental friendly, 3V 120mAh BR1632 TPMS Device Battery Primary Button Cell can be used in emote Controls, Heart Rate Monitor, Watches, Cameras, Calculators, Car Security Alarm, toys, Keyless Car Remotes, Organizers, Glucometer, Photo Micro Lites, Computer Equipment (memory backup battery) CMOS, Motherboards, Garage Door Controls, Communication Equipment, Pocket Stations, data pack for video cameras, and other devices that requires this battery size.
    • BR1632 3V Lithium Coin Battery 120mAh for Car TPMS Sensor, Remote Control, Key Fob 11
      3V 120mAh BR1632 non-rechargeable Button Battery can be used in Clock
    • BR1632 3V Lithium Coin Battery 120mAh for Car TPMS Sensor, Remote Control, Key Fob 12
      3V 120mAh BR1632 non-rechargeable Button Battery can be used in Gas meter

    Other models of wide temperature battery

    BR1632 3V Lithium Coin Battery 120mAh for Car TPMS Sensor, Remote Control, Key Fob 13

    The BR1632 3V Lithium Coin Battery (120mAh) is a high-quality, long-lasting replacement battery for various applications, including:

    • Car TPMS Sensors:  Keep your tire pressure monitoring system functioning flawlessly with a reliable BR1632 battery.

    • Remote Controls:  Power your remote controls for TVs, stereos, or other devices with confidence.

    • Key Fobs:  Ensure your key fob is always functional with a long-lasting BR1632 battery.

    This 3V Lithium Coin Battery boasts a 120mAh capacity, providing extended life for your devices.  Its compact size (16mm x 3.2mm) makes it suitable for various applications.

    Additional Benefits:

    • Reliable Performance: Delivers consistent voltage for optimal device function.

    • Long-Lasting Power: Ensures extended use before needing replacement.

    • Wide Operating Temperature: Functions effectively in various environments.  (Please refer to the manufacturer's datasheet for specific temperature range).
