Electronic Components lithium primary button battery CR2430
5.0
Origin:
CHINA GUANGDONG
Package:
Industrial Package
Certificate:
CE,RoHS,UN38.3,MSDS
Warranty:
1 Years
Color:
Sliver,Green
MOQ:
10prices
Payment:
L/C, D/A, D/P, T/T, Western Union, MoneyGram, OA
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Brand
CTECHi
Weight
3.2g
Item
CR2430 3.0V 300mAh LiMnO2 button Battery
Voltage Nominal
3V
Capacity Nominal
300mAh
Energy
0.9Wh
Dimension
24*3.0mm
Charge
No
Operating Temperature
-20+60℃
Certification
CE, CCC, CQC, CB, UL
Availability
OEM, ODM, OEM/ODM
Product Details

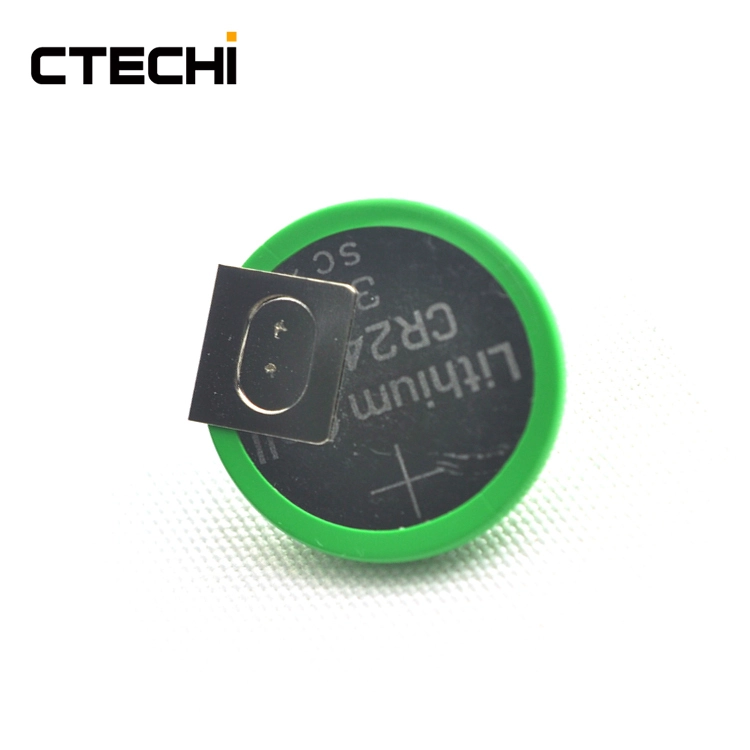

The CR2430 is a non-rechargeable lithium-ion button battery. It is one of the primary battery series. It has a diameter of 24mm and a thickness of 3.0mm. The CR series battery has a voltage of 3V, while the CR2430 battery has a capacity of 300mAh. This battery weighs 3.2g And this type of battery can add solder piece and solder feet.
-
CR2430 lithium button battery conformation details
-
CR2430 lithium button battery positive electrode details
-
CR2430 lithium button battery discharge at different temperature（15KΩ）details
-
CR2430 lithium button battery negative electrode solder piece details
-
CR2430 lithium button battery Discharge curve details
-
CR2430 lithium button battery customize solder piece
Application Scope
The CR2430 is a compact and lightweight lithium-ion battery with long life and high battery voltage. It can be used in electronic component boards and electronic watch，clocks, notebook computers, and electronic scales.
-
CR2430 lithium button battery can be used in digital camera
-
CR2430 lithium button battery can be used in Electronic scale
-
CR2430 lithium button battery can be used in clock
Solder Processing Solution
Our company also has the following CR2430 battery soldering solutions CR2430/1HF3， CR2430/1F4, CR2430/1HF2, CR2430/1VC, CR2430/1HF1, CR2430/1F6,CR2430/1HF, CR2430/1VC1, Each solution has a different application, and customers can choose the corresponding processing method according to the application.
