CTECHI is an expert in battery solutions, specializing in ODM, OEM, and SKD for energy storage, motive power, and consumer batteries.

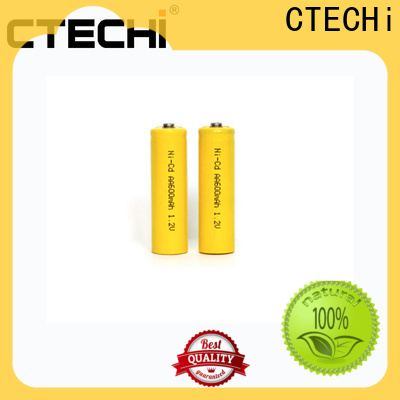

aa size ni-cd battery personalized for payment terminals 1
aa size ni-cd battery personalized for payment terminals 1

aa size ni-cd battery personalized for payment terminals

Inquiry
Video Display
Product Details
Ni-Cd Battery 1.2V AA 600mAh features including : a Rapid Charge, Reliable service life, Recharges hundreds of times, Saves you hundreds of dollars, Can be replaced in any product that uses AA Batteries. High energy series giving a higher operating time • Good storage retention • Fast charge • Cycling application Technology • Sintered positive electrode • Plastic bonded negative electrode Temperature range in discharge - 20°C to + 65°C Storage Recommended: + 5°C to + 25°C Relative humidity: 65 ± 5 % Standard Series Nickel-Cadmium VRE AA 600 Electrical characteristics Nominal voltage (V) 1.2 Typical capacity (mAh)* 700 IEC minimum capacity (mAh)* 600 IEC designation KRMR 15/51 Impedance at 1000 Hz (m Ω) 16 * Charge 16 h at C/10, discharge at C/5. Dimensions Diameter (mm) 14 ± 0.1 Height (mm) 48 ± 0.3 Top projection (mm) 0.8 ± 0.2 Top flat area diameter (mm) 4 ± 0.2 Weight (g) 19 Dimensions are given for bare cells. Charge conditions Rate Time (h) Temp. (°C) Charge current (mA) Fast* ~1 + 10 to + 45 up to 600 Standard 16 0 to + 50 60 Trickle** 15 to 30 * End of charge cut-off is requested: -dV or dT°C/dt. ** Trickle charge follows fast charge. Maximum discharge current Continuous (A) at + 20°C 1.8 Peak (A) at + 20°C* 41 * Peak duration: 0.3 second - final discharge voltage 0.65 volt/cell. To meet customers’ requirements, our provides custom-designed and standardized battery packs. For your battery design and system needs, please contact us.
  • aa size ni-cd battery personalized for payment terminals 2
    CTECHI 12V 600mAh AA Battery Discharge at low rate data
  • aa size ni-cd battery personalized for payment terminals 3
    CTECHI AA NiCd 12V 600mAh Battery Charge Retention
  • aa size ni-cd battery personalized for payment terminals 4
    CTECHI Battery Ni-Cd 12V AA 600mAh Discharge at high rate data
  • aa size ni-cd battery personalized for payment terminals 5
    CTECHI Ni-Cd Battery 12V AA 600mAh Charge Data
  • aa size ni-cd battery personalized for payment terminals 6
    CTECHI NiCd 12V AA 600mAh Size
Application Scope
Ni-Cd Battery 1.2V AA 600mAh can be used in Emergency power kit, LED lighting, Cordless phone, toys, camcorders, emergency light, power tools, UPS, Solar, Wind, Mobile generator, Back up power, Solar power bank, Solar LED lighting, Solar street light, Scooter, E-bike, Golf cart, E-motor, E-tour car, tricycle, Electric drill, electric saw, lawn mower, Remote control cars, boat, aircraft, toys, Wireless, Medical devices, equipment and portable equipment, Wearable device, Power supply.
  • aa size ni-cd battery personalized for payment terminals 7
    CTECHI 12V NiCd Battery can be used in Wearable device
  • aa size ni-cd battery personalized for payment terminals 8
    CTECHI NiCd AA 12V 600mAh can be used in Cordless phone
  • aa size ni-cd battery personalized for payment terminals 9
    CTECHI NiCd Battery 12V AA 600mAh can be used in toys
ni-cd battery description
One of the most popular functions of ni-cd battery is reliability. The product is involved in our cooperation with numerous well-known brands
aa size ni-cd battery personalized for payment terminals
aa size ni-cd battery personalized for payment terminals
ni-cd battery SPECIFICATIONS
OriginCHINA GUANGDONG
PackageCorrugated Knife Cards
CertificateCE/RoHS/UN38.3/MSDS
Warranty1 Years
ColorCustomized Available
MOQ500pieces
PaymentPaypal/TT/Western Union/LC/DA/DP
BrandCTECHI
Weight19g
Item1.2V 600mAh AA Ni-Cd
Voltage Nominal1.2V
Capacity Nominal600mAh
Energy0.72Wh
Dimension14.1*48.8
Chargeyes
Operating Temperature-20+65℃
AvailabilityOEM, ODM, OEM/ODM
The product is updated frequently to ensure that it leads the market trend. It is always showcased at exhibitions such as Hong Kong Electronics Fair. It is manufactured in high efficiency which is backed by 13+ year experience.
